Quick Details
Quick Details
-
Size:
-
230*158*210cm
-
Place of Origin:
-
Henan, China
-
Model Number:
-
KYN28A-12
Please feel free to contact us for customized products
Product Overview

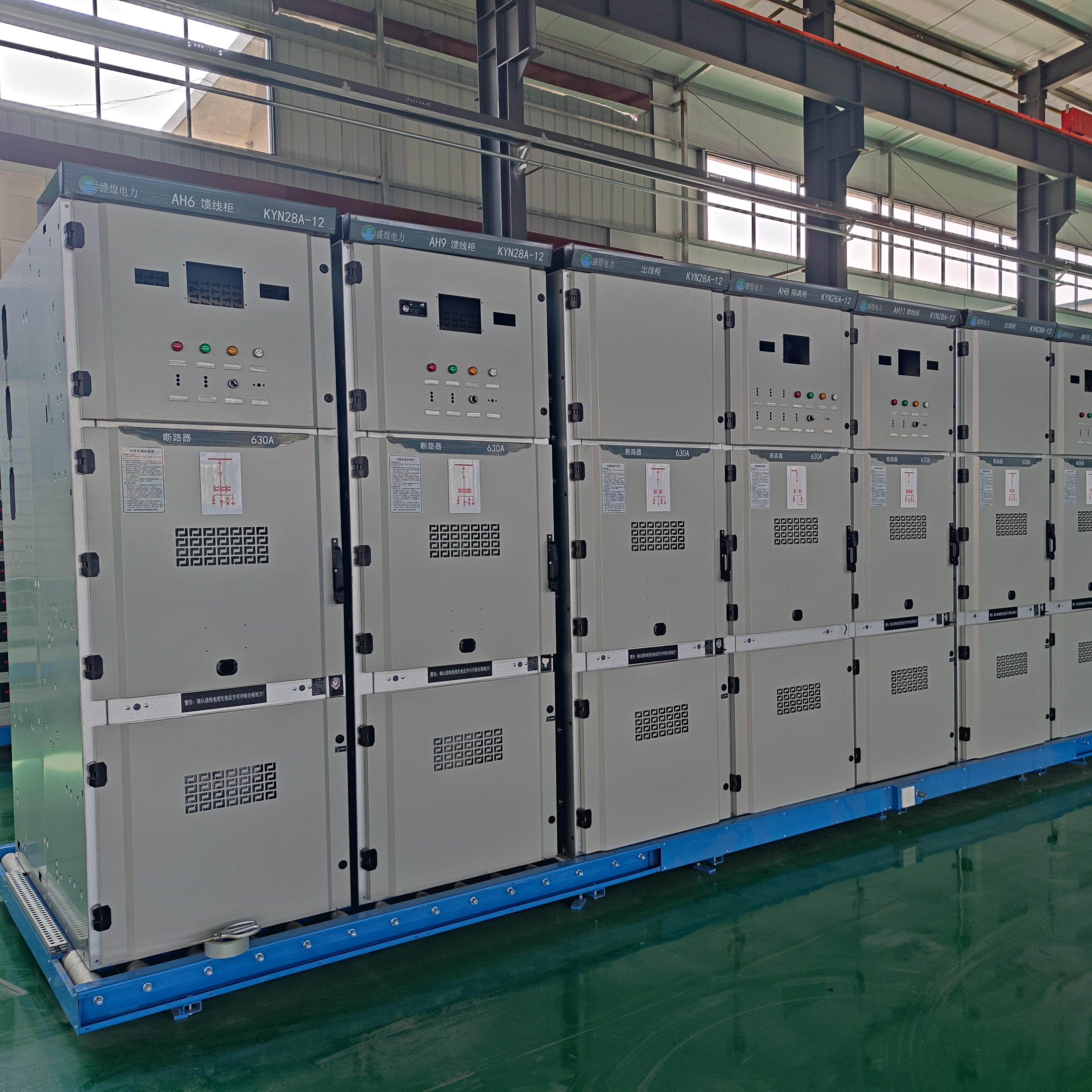

KYN28A-12 armored removable AC metal-enclosed switchgear
KYN28A-12 armored removable AC metal-enclosed switchgear is used in three-phase AC 50Hz/60Hz power systems for receiving and distributing electrical energy and for controlling, protecting and monitoring circuits, can also be used as high-voltage generator exports alone.
Technical Parameter
|
Project
|
|
|
Unit
|
Parameter
|
||
|
Rated voltage
|
|
|
kV
|
3.6、7.2、12
|
||
|
Rated frequency
|
|
|
Hz
|
50/60
|
||
|
Circuit breaker rated current
|
|
|
A
|
630、1250、1600、2000、2500、3150、4000
|
||
|
Rated current of switchgear
|
|
|
A
|
630、1250、1600、2000、2500、3150、4000
|
||
|
Rated short-time withstand current (4s)
|
|
|
kA
|
16、20、25、31.5、40、50
|
||
|
Rated peak withstand current (peak value)
|
|
|
kA
|
40、50、63、80、100、125
|
||
|
Rated short-circuit breaking current
|
|
|
kA
|
16、20、25、31.5、40、50
|
||
|
Rated short-circuit making current (peak value)
|
|
|
kA
|
40、50、63、80、100、125
|
||
|
Rated insulation level
|
1min power frequency withstand
|
interpolar, Between poles
|
kV
|
24、32、42
|
||
|
|
|
between open contacts
|
kV
|
24、32、48
|
||
|
|
Lightning impulse withstand voltage
|
interpolar, Between poles
|
kV
|
40、60、75
|
||
|
|
|
between open contacts
|
kV
|
46、70、85
|
||
|
Protection grade
|
|
|
|
IP4X
|
||
