Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YIHENG
-
Dimension(L*W*H):
-
Customized
-
Core Components:
-
Conveyor Belts
-
Weight (KG):
-
10 kg
-
Product name:
-
Polyester Spiral Filter Belts
-
Application:
-
Dryer/Conveying/Paper Making
-
Keyword:
-
Dryer Fabric
-
Belt material:
-
PET
Quick Details
-
Power:
-
Other
-
Warranty:
-
Unavailable
-
Width or Diameter:
-
Customized
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YIHENG
-
Dimension(L*W*H):
-
Customized
-
Core Components:
-
Conveyor Belts
-
Weight (KG):
-
10 kg
-
Product name:
-
Polyester Spiral Filter Belts
-
Application:
-
Dryer/Conveying/Paper Making
-
Keyword:
-
Dryer Fabric
-
Belt material:
-
PET
Product Application
The polyester spiral mesh belt is suitable for drying packaging paper, cultural paper, board paper and pulp board with large basis weight. It is widely used in papermaking, coal mine, food, medicine, printing and dyeing and rubber products industries. It can also be used as a conveyor belt and a mesh belt for compound machines.
Product Introduction

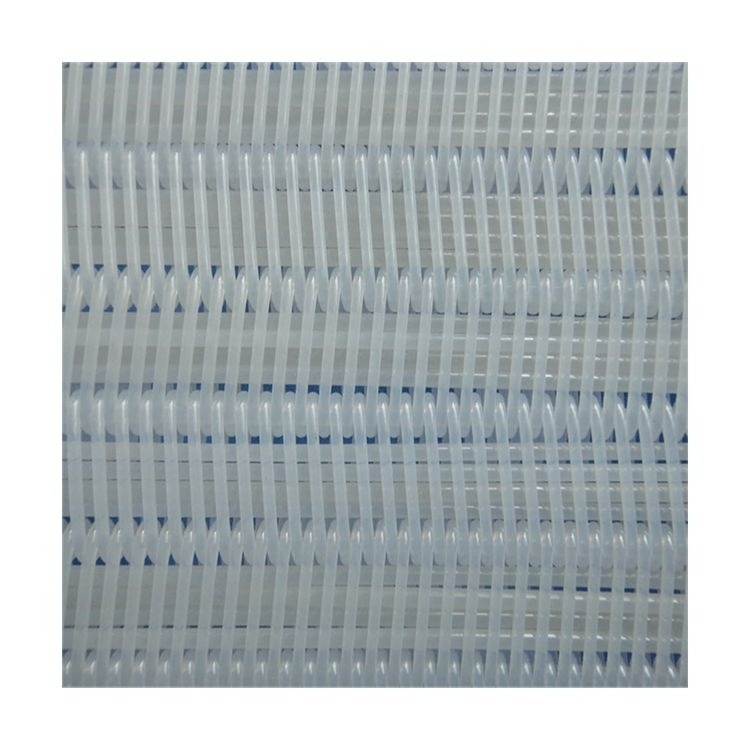

The polyester spiral dry net is made of polyester monofilament which make into a spiral ring.
Then use wefts to connect spiral loops together to make a spiral net. The spiral net has a smooth surface, high air permeability, high temperature resistance.
|
Specifications for polyester spiral mesh belt
|
|
|
|
|
|
|||||
|
item
|
loop distance
|
warp distance
|
weft distance
|
thickness
|
air permeability
|
|||||
|
small loop spiral belt
|
5.0mm
|
0.5mm
|
0.8mm
|
1.85mmm
|
15000
|
|||||
|
middle loop spiral belt
|
6.5mm
|
0.68mm
|
0.9mm
|
2.45mm
|
16000
|
|||||
|
large loop spiral belt
|
9.0mm
|
0.9mm
|
1.0mm
|
3.0mm
|
19000
|
|||||
Polyester spiral dryer screen
1.Small loop, suitable for fine paper .
2.Midium loop, suitable for board & packing paper .
3.Large loop, suitable for board & packing paper .
Features
2. High fatigue resistance, acid and alkali resistance.
3. The surface is flat, the tensile strength is high, the gas permeability is good, and the heat transfer efficiency is high.
4. Easy to install and use, no trace on the interface, not easy to deform during use.
Below package is available, and your special request is also welcome:
1. Non woven fliter belt by sea, wooden case with foam plastic inside
2. Non woven forming fabric belt by air, carton box- soft package
3. Non woven forming fabric mesh belt according to your request.
