Quick Details
-
Brand Name:
-
SKZ
-
Model Number:
-
SKZ2050-4-SO2
-
Power:
-
Battery
-
Material:
-
Plastic+metal
-
Product name:
-
SO2 Gas Detector
-
Detection principle:
-
Electrochemical principles
-
Detecting Gas:
-
SO2
-
Measure Range:
-
0-10000\30000\40000ppm
-
Resolution:
-
1ppm
-
Power supply:
-
DC3.6V
-
Response time:
-
≤20S
-
Dimensions:
-
160*70*28mm
-
Weight:
-
300g
-
Alarm Type:
-
Sound+Light Alarm
Quick Details
-
Type:
-
GAS DETECTOR
-
Warranty:
-
1 year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SKZ
-
Model Number:
-
SKZ2050-4-SO2
-
Power:
-
Battery
-
Material:
-
Plastic+metal
-
Product name:
-
SO2 Gas Detector
-
Detection principle:
-
Electrochemical principles
-
Detecting Gas:
-
SO2
-
Measure Range:
-
0-10000\30000\40000ppm
-
Resolution:
-
1ppm
-
Power supply:
-
DC3.6V
-
Response time:
-
≤20S
-
Dimensions:
-
160*70*28mm
-
Weight:
-
300g
-
Alarm Type:
-
Sound+Light Alarm

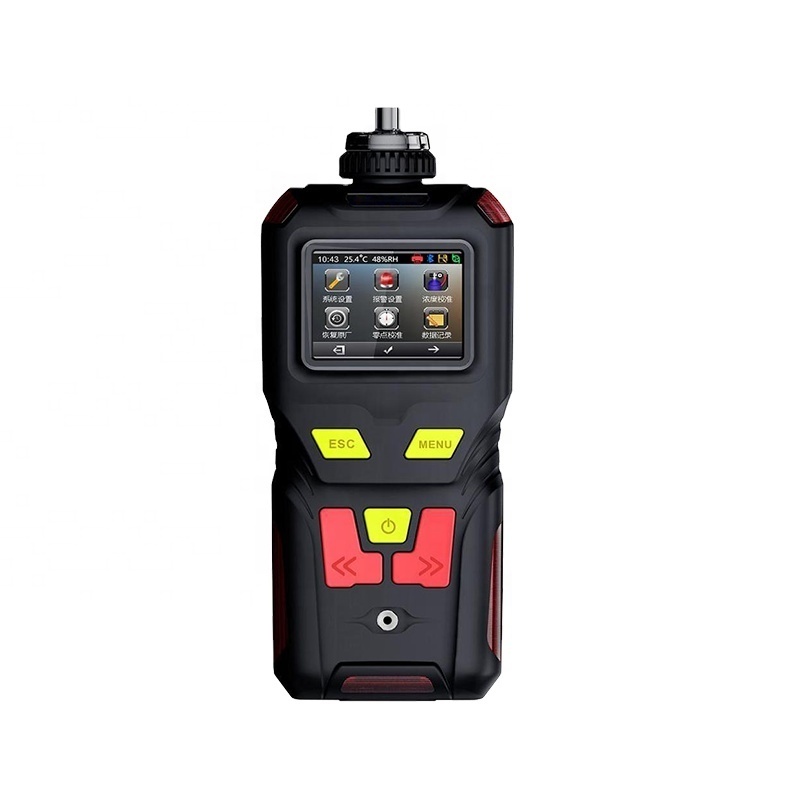

SKZ2050-4 Flue Gas Specific 0-10000ppm Sulphur Dioxide (SO2) Gas Testing Equipment
Introduction:
It adopts 2.31-inch high-definition color screen for real-time display, and adopts gas sensors of well-known brands in the
industry.
It adopts 2.31-inch high-definition color screen for real-time display, and adopts gas sensors of well-known brands in the
industry.
It is used to quickly detect the concentration of various gases and the measurement of ambient temperature and humidity, and alarm if the measurement exceeds the limit.
It is suitable for detecting gas concentration in pipelines or confined spaces and atmospheric environments; gas leakage or high concentration single gas purity where various background gases are nitrogen or oxygen. There are more than 500 kinds of detected gases.
It is suitable for detecting gas concentration in pipelines or confined spaces and atmospheric environments; gas leakage or high concentration single gas purity where various background gases are nitrogen or oxygen. There are more than 500 kinds of detected gases.
It can detect 1～4 kinds of gases at the same time, and the unit can be switched:Optional units: PPM, mg/m3, VOL%, LEL%, PPHM, ppb, mg/L
|
Detection gas
|
SO2
|
|
|
||
|
Scope of detection
|
0-10000\30000\40000ppm
|
|
|
||
|
Resolution
|
1ppm
|
|
|
||
|
Detection principle
|
Electrochemical principles
|
|
|
||
|
Detection method
|
Built-in pump suction, flow rate 500ml/min
|
|
|
||
|
Display method
|
2.31 inch 320X240 high-definition color screen display, 5-buttons operation
|
|
|
||
|
Linearity
|
≤±2%
|
Repeatability
|
≤±2%
|
||
|
Alarm method
|
Sound and light alarm, vibration alarm, visual alarm, sound and light + vibration + visual alarm, shut off the alarm
|
|
|
||
|
Response time
|
≤20S
|
Recovery Time
|
≤30S
|
||
|
Power supply
|
DC3.6V
|
|
|
||
|
battery capacity
|
3.6VDC, 4500mA large-capacity rechargeable polymer battery, with overcharge, over-discharge, overvoltage, overheating, and short
circuit protection functions |
|
|
||
|
Use environment
|
Temperature -40℃~+70℃;
Relative humidity ≤0-99%RH (built-in filter can be used in high humidity or high dust environment) |
|
|
||
|
Sample temperature
|
-40℃~+70℃, optional with extra charge high temperature sampling probe, can detect the flue gas concentration of 400 degrees or
higher |
|
|
||
|
Temperature measurement
|
-40℃~+120℃ Accuracy: 0.5℃
|
Humidity measurement
|
0-100%RH, Accuracy 3%RH
|
||
|
data storage
|
Standard configuration of 100,000 data capacity, support history viewing, deletion or data export, free host computer
communication software. The storage function is off by default, and can be set to on, and the storage time interval can be set arbitrarily. |
|
|
||
|
Communication Interface
|
USB (charging and communication),
Optional with extra charge RS485 or RS232 communication interface |
|
|
||
|
Interface language
|
Chinese or English can be set
|
|
|
||
|
Explosion-proof type
|
Intrinsic safe
|
Explosion-proof mark
|
ExdⅡCT6
|
||
|
Dimensions
|
160×70×28mm(L×W×H)
|
Weight
|
300g
|
||
|
Protection level
|
IP65, dust and splash proof
|
|
|
||
|
Standard accessories
|
Manual, certificate of inspection and warranty card, USB charger (including data cable), aluminum alloy box, alligator clip, host
computer communication software, 1PC humidity dust filter |
|
|
||
|
Optional accessories
|
Temperature and humidity measurement function, 1.2m retractable sampling probe(1-10m hose, standard length 1m), high temperature
sampling probe, high temperature and high humidity pretreatment system, spare humidity dust filter. |
|
|
||
|
Application occasions
|
Petroleum, chemical, pharmaceutical, environmental protection, flue gas analysis, air treatment and other occasions where gas
concentration needs to be detected. |
|
|
||
