Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
hoyongtrd
-
Voltage:
-
220V/380V
-
Power (kW):
-
3
-
Weight (KG):
-
1350 KG
Quick Details
-
type:
-
Column Drilling Machine
-
Max. Drilling Dia. (mm):
-
50
-
Range of Spindle Speed(r.p.m):
-
31.5 - 1400 r.p.m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
hoyongtrd
-
Voltage:
-
220V/380V
-
Power (kW):
-
3
-
Weight (KG):
-
1350 KG

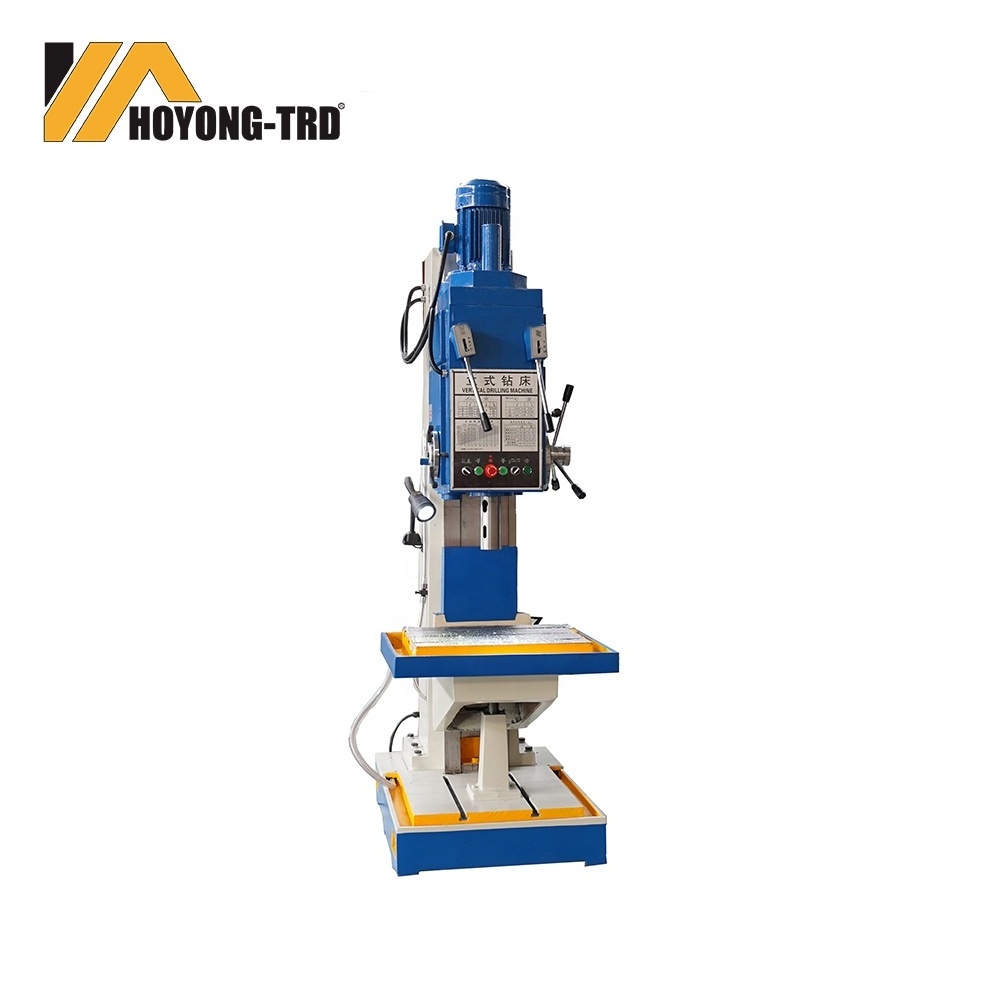

SQUARE COLUMN VERTICAL DRILLING MACHINE:
1. The table of Z5140B, Z5150B is fixed and The Z5140B-1, Z5150B-1 is cross table.
2. This machine also can enlarge hole,drill deep hole,tapping,boring and etc. except drilling hole.
3. This series machine have many advantages,such as high efficiency, good rigid,high precision,low noise, wide speed
range..the machine which have cross table ,the table can manual feeding on cross ,longitudinal and lifting.
1. The table of Z5140B, Z5150B is fixed and The Z5140B-1, Z5150B-1 is cross table.
2. This machine also can enlarge hole,drill deep hole,tapping,boring and etc. except drilling hole.
3. This series machine have many advantages,such as high efficiency, good rigid,high precision,low noise, wide speed
range..the machine which have cross table ,the table can manual feeding on cross ,longitudinal and lifting.
|
SPECIFICATION
|
UNIT
|
Z5140B
|
Z5140B-1
|
Z5150B
|
Z5150B-1
|
|||
|
Max drilling diameter
|
mm
|
40
|
|
50
|
|
|||
|
Spindle taper
|
|
MT4
|
|
MT5
|
|
|||
|
Stroke of spindle quill
|
mm
|
250
|
|
|
|
|||
|
Spindle box travel(manual)
|
mm
|
200
|
|
|
|
|||
|
Spindle speed steps
|
|
12
|
|
|
|
|||
|
Spindle speed range
|
r.p.m
|
31.5-1400
|
|
|
|
|||
|
Spindle feed steps
|
|
9
|
|
|
|
|||
|
spindle feed range
|
mm/r
|
0.056-1.80
|
|
|
|
|||
|
Table size
|
mm
|
560 x 480
|
800 x 320
|
560 x 480
|
800 x 320
|
|||
|
Longitudinal/cross travel
|
mm
|
-
|
450/300
|
-
|
450/300
|
|||
|
Vertical travel
|
mm
|
300
|
|
|
|
|||
|
Max distance between
spindle and table surface |
mm
|
750
|
550
|
750
|
550
|
|||
|
Main motor power
|
kw
|
3
|
|
|
|
|||
|
Overall size
|
mm
|
1090x905x2465
|
1300x1200x2465
|
1090x905x2465
|
1300x1200x2465
|
|||
|
Net weight
|
kg
|
1250
|
1350
|
1250
|
1350
|
|||
