Quick Details
-
Brand Name:
-
RZfiber
-
Use:
-
FTTH
-
Product name:
-

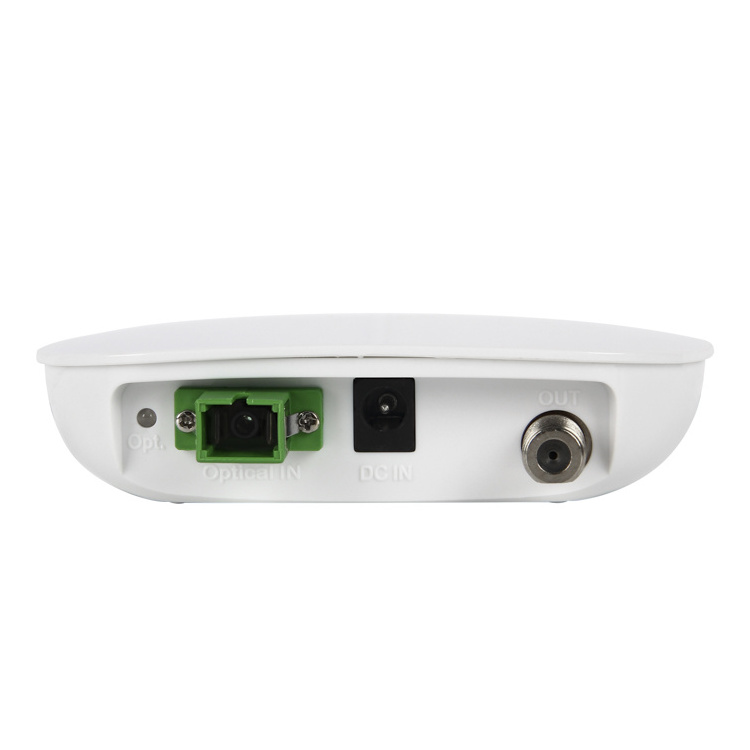

WDM FTTH Optical Node for PON CATV FTTH Optical Receiver Node
-
Optical Receiver Wavelength:
-
1310nm/1490nm/1550nm
-
Optical Input Range:
-
-18dBm ~ +0dBm
-
Frenquency Range:
-
45MHz~1000MHz
-
Connector:
-
SC OR FC
-
Material:
-
PC ABS Optical Receiver
-
Color:
-
White Optical Receiver
-
Certification:
-
CE RoHS FCC
-
Optical Receiver MOQ:
-
1pcs
-
Delivery Time:
-
3~5 days
Quick Details
-
Type:
-
HFC In-door Optical Receiver
-
Model Number:
-
OPT-1000M-2
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
RZfiber
-
Use:
-
FTTH
-
Product name:
-
WDM FTTH Optical Node for PON CATV FTTH Optical Receiver Node
-
Optical Receiver Wavelength:
-
1310nm/1490nm/1550nm
-
Optical Input Range:
-
-18dBm ~ +0dBm
-
Frenquency Range:
-
45MHz~1000MHz
-
Connector:
-
SC OR FC
-
Material:
-
PC ABS Optical Receiver
-
Color:
-
White Optical Receiver
-
Certification:
-
CE RoHS FCC
-
Optical Receiver MOQ:
-
1pcs
-
Delivery Time:
-
3~5 days
Products Description
Mini Node Specification
|
project
|
parameter
|
Remarks
|
|
Received light
wavelength(mm) |
1210 ~1610
|
|
|
Received optical power (dbm)
|
-2~-18
|
|
|
Light AGC range(dB)
|
-5~-15
|
|
|
Optical connector
|
FC/ or SC/
|
Users can choose
|
|
RF connector
|
F Imperial or metric
|
Users can choose
|
|
Frequency Range(MHz)
|
47 ~1000
|
|
|
Frequency response
flatness(dB) |
±0.75
|
-10dBm Receiving optical power
|
|
|
±1.0
|
-12dBm Receiving optical power
|
|
Output reflection loss(dB)
|
>16
|
|
|
Nominal output level(dB)
|
76±1
|
-12dBm ~-2dBm Receiving optical power
|
|
C/N(dB)
|
246
|
-6dBm Receiving optical power, 59 ways
PAL-D Analog signal +16 ways Digital channel |
|
C/CSO (dB)
|
364
|
|
|
C/CTB(dB)
|
264
|
|
|
MER(dB)
|
335
|
-6dBm Receive optical power,80 ways
Digital signal |
|
Supply voltage
|
AC220/DC12(or 5V)
|
External power adapter
|
|
Operating temperature
|
-25~+55
|
|
|
Optical Parameter:
|
|
|
||
|
Optical Input power
|
dBm
|
-16~+2
|
||
|
Optical Wavelength
|
nm
|
1100~1600
|
||
|
Optical Fiber Connector
|
|
SC/PC
|
||
|
Optical Return Loss
|
dB
|
≥45
|
||
|
AGC
|
|
-16~ -8
|
||
|
Fiber Type
|
|
single model
|
||
|
RF Parameter:
|
|
|
||
|
Bandwidth
|
MHz
|
40 -1002
|
||
|
Flatness
|
dB
|
≤ ±0.75
|
||
|
Output Return Loss
|
dB
|
≥16
|
||
|
Output Impedance
|
Ω
|
75
|
||
|
Output Level
|
dBμV
|
≥90
|
||
|
Distortions:
|
|
|
||
|
C/N
|
dB
|
≥51
|
||
|
CSO
|
dBc
|
≤-60
|
||
|
CTB
|
dBc
|
≤-65
|
||
|
Test conditons: input PAL-D of 59 channel, standard optical transmitter input RF is 80dBμV, optic road is10Km, fiber add up fiber
variable attenuator, the input optic power of test receiver is-1dBm. |
|
|
||
|
Voltage Power(V)
|
DC12V~15V
|
|
||
|
Power Lloss(W)
|
≤4
|
|
||
|
Operating Temperature(℃)
|
-0℃~+45℃
|
|
||
|
Storing temperature(℃)
|
0℃~+70℃
|
|
||
|
Housing Dimensions(mm)
|
100(L)×77(W)×25(H)
|
|
||
Mini Node Special Features
* Plastic case with good heat dispersion.
* Adopts GaAs module as RF amplifying module, the optical receiving range for digital signal can reach-22dBm,and -10dBm for analog signal.
* AGC control range can be customized.
* Low consumption design and total consumption ≤4w, high reliable switching power supply with optical inspection circuit.
* SC/ or FC/ optical connector.
* Built-in WDM,single-fiber to the home (1490/1310/1550nm) triple-play application can be realized.
* Built-in isolator can split the two optical waves (1490nm and 1310nm)
* Anti-high-frequency surge device to protect the GaAs amplifier tube.
* Multi-stage lightning protection devices (TVS transient suppression diodes), lightning protection system closely to ensure the safe operation of equipment.
* Realize the 5V input port feeding way of power supply.
* Plastic case with good heat dispersion.
* Adopts GaAs module as RF amplifying module, the optical receiving range for digital signal can reach-22dBm,and -10dBm for analog signal.
* AGC control range can be customized.
* Low consumption design and total consumption ≤4w, high reliable switching power supply with optical inspection circuit.
* SC/ or FC/ optical connector.
* Built-in WDM,single-fiber to the home (1490/1310/1550nm) triple-play application can be realized.
* Built-in isolator can split the two optical waves (1490nm and 1310nm)
* Anti-high-frequency surge device to protect the GaAs amplifier tube.
* Multi-stage lightning protection devices (TVS transient suppression diodes), lightning protection system closely to ensure the safe operation of equipment.
* Realize the 5V input port feeding way of power supply.
Special Features
OPT-AS1000W
1310nm and 1550nm optional working window.
Frequancy 40MHz -1002MHz.
Gallium arsenide amplifier used with a good performance index.
There is a metric system (or English system) radio frequency output port and a DC12V~15V independent DC power supply port.Small aluminum die cast casing, beautifully shaped, good for home-use.
Use SC/PC optical connector
1310nm and 1550nm optional working window.
Frequancy 40MHz -1002MHz.
Gallium arsenide amplifier used with a good performance index.
There is a metric system (or English system) radio frequency output port and a DC12V~15V independent DC power supply port.Small aluminum die cast casing, beautifully shaped, good for home-use.
Use SC/PC optical connector
Mini Node with Fliter Details
