DX-MAG12C/25C series capacitive pulse magnetizer is suitable for magnetization of permanent magnets, such as horn, DC motor, DC fan, stepper motor, rubber magnet, toy, etc., with low energy consumption and efficiency. High performance, fast magnetization speed, etc., can design various magnetizing fixtures for users.
- Product Details
- {{item.text}}
Quick Details
-
Product name:
-
Magnetizer and demagnetizer
-
Function:
-
speaker, motor, ferrite or AlNiCo magnetization
-
Type:
-
square
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
DX
-
Weight (KG):
-
150
-
Product name:
-
Magnetizer and demagnetizer
-
Function:
-
speaker, motor, ferrite or AlNiCo magnetization
-
Type:
-
square
Product Description
DX-MAG12C/ 25C series capacitor pulse magnetizer is composed of high voltage oil immersed pulse capacitor, thyristor and control circuit. AC power supply voltage is increased by isolation transformer, and then changed from rectifier to DC to charge capacitor. High voltage direct current energy is stored in the capacitor. Finally, through SCR control, the high power grabbing energy can discharge the magnetizing coil to produce a strong magnetic field and make the magnet saturated.
DX-MAG12C/ 25C series capacitor pulse magnetizer is suitable for permanent magnet products, such as horn, DC motor, DC fan, stepper motor, rubber magnet, toys, etc. it has the advantages of low energy consumption, high efficiency and fast magnetization speed. It can design various magnetizing clamps for users.

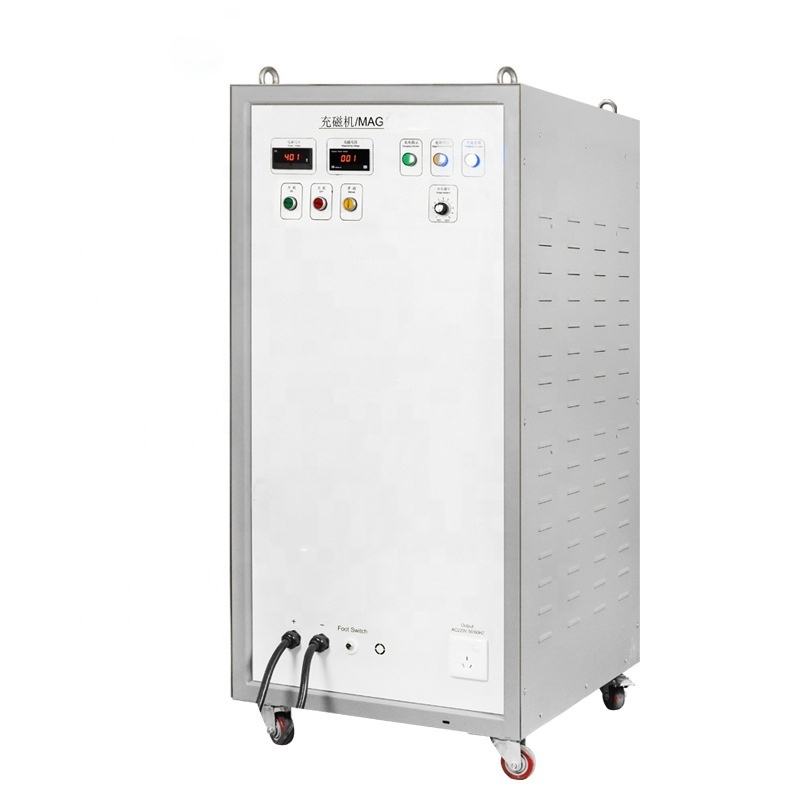

Product Pictures
Product Paramenters
|
DX-MAG12C
|
|
|
|
|||
|
Type no.
|
DX-MAG-12C20
|
DX-MAG-12C30
|
DX-MAG-12C40
|
|||
|
Input power
|
AC220±10%
|
AC380±10%
|
AC380±10%
|
|||
|
Incoming current
|
40A
|
40A
|
40A
|
|||
|
Charge Voltage
|
DC200V-1200V
|
DC200V-1200V
|
DC200V-1200V
|
|||
|
Capacitance
|
2000uF
|
3000uF
|
4000uF
|
|||
|
Stored energy
|
1440J
|
2160J
|
2880J
|
|||
|
Output current
|
15kA
|
15kA
|
15kA
|
|||
|
Output current
|
1.0 seconds/time
|
1.5seconds/time
|
2.0 seconds/time
|
|||
|
DXMAG25C
|
|
|
|
|||
|
Type no.
|
DX-MAG-25C10
|
DX-MAG-25C15
|
DX-MAG-25C20
|
|||
|
Input power
|
AC220±10%
|
AC380±10%
|
AC380±10%
|
|||
|
Incoming current
|
40A
|
40A
|
40A
|
|||
|
Charge Voltage
|
DC200V-2500V
|
DC200V-2500V
|
DC200V-2500V
|
|||
|
Capacitance
|
1000uF
|
1600uF
|
2000uF
|
|||
|
Stored energy
|
3125J
|
5000J
|
6250J
|
|||
|
* Output current
|
30kA
|
30kA
|
30kA
|
|||
|
Magnetization interval
|
2.0 seconds/time
|
3.0seconds/time
|
3.0 seconds/time
|
|||
