- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
RYK
-
Material:
-
Aluminum Alloy
-
Product name:
-

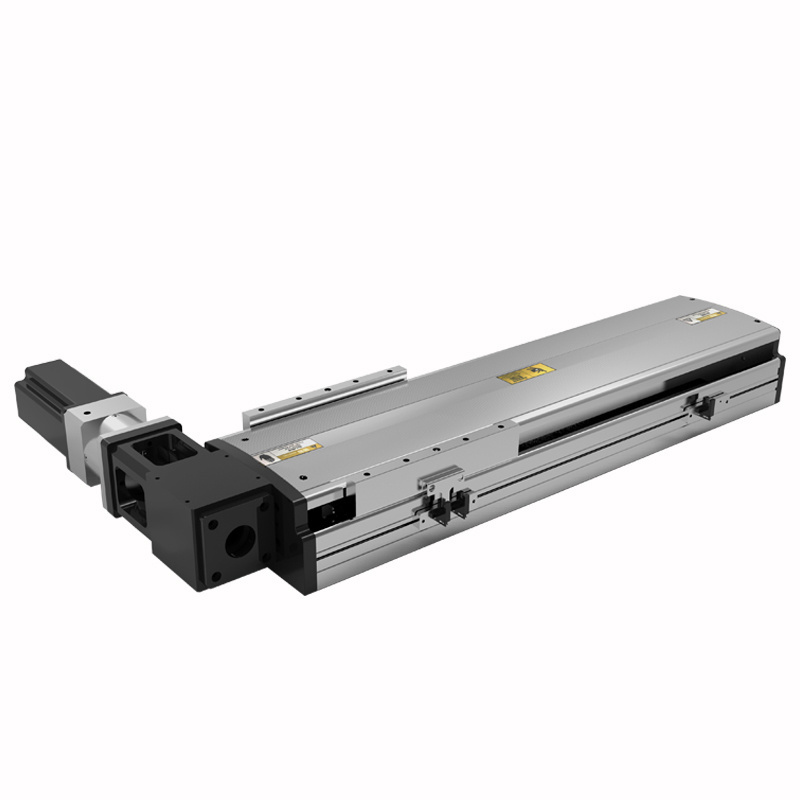

Semi-closed Belt Drive Electric Linear Module Aluminum High Speed
-
MOQ:
-
1 Set
-
Color:
-
Silver
-
Certification:
-
ISO9001
-
Precision Rating:
-
±0.02mm
-
Maximum Output:
-
100W/200W/ 57 Stepper
-
Maximum Stroke:
-
2000mm
-
Maximum Speed:
-
1600mm/s
-
Motor Position:
-
MK/ BK/ RK/ LK/ IK
-
Feature:
-
Precision,high speed,stable
Quick Details
-
Weight (KG):
-
4
-
Model Number:
-
RY-100T
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RYK
-
Material:
-
Aluminum Alloy
-
Product name:
-
Semi-closed Belt Drive Electric Linear Module Aluminum High Speed
-
MOQ:
-
1 Set
-
Color:
-
Silver
-
Certification:
-
ISO9001
-
Precision Rating:
-
±0.02mm
-
Maximum Output:
-
100W/200W/ 57 Stepper
-
Maximum Stroke:
-
2000mm
-
Maximum Speed:
-
1600mm/s
-
Motor Position:
-
MK/ BK/ RK/ LK/ IK
-
Feature:
-
Precision,high speed,stable
Recommend Products
Ball Screw Linear Module
Dust-proof Linear Module
Gear Rack linear Module
Product Parameter
|
Product Name
|
Semi-Hermetic Belt Driven Linear Sliding Table
|
|
Model No.
|
RY60FT/RY80T/RY100T/RY120T/RY140T/RY170T/RY200T
|
|
Maximum Stroke
|
3050mm
|
|
Maximum Speed
|
2250mm/s
|
|
Maximum Output
|
Stepper Motor: 57/86
Servo Motor: 100W/200W/400W/750W
|
|
Synchronus Wheel
|
80/100/110/125/160mm
|
Product Overview
Application
