Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZIYE
-
Voltage:
-
380V/220V/415V/110V
-
Dimension(L*W*H):
-
1.1*0.9*1.3m
-
Weight:
-
500 kg
-
Web Width:
-
320 mm
-
Slitting Speed:
-
120 m/min
-
Unwind:
-
3" Pneumatic Air Expanding Shaft
-
Rewind:
-
Turret Rewind (1.5" *2 + 3" )
-
Slitting Width:
-
≥10mm
-
Operator:
-
1 person
-
Auto Counter:
-
Yes
-
Automatic Tension Control:
-
2 Set
-
Web Guide System:
-
Yes, Two Electrical Eyes
Quick Details
-
Type:
-
Slitting Rewinder
-
Production Capacity:
-
120 m/min
-
Max. workable width:
-
320mm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZIYE
-
Voltage:
-
380V/220V/415V/110V
-
Dimension(L*W*H):
-
1.1*0.9*1.3m
-
Weight:
-
500 kg
-
Web Width:
-
320 mm
-
Slitting Speed:
-
120 m/min
-
Unwind:
-
3" Pneumatic Air Expanding Shaft
-
Rewind:
-
Turret Rewind (1.5" *2 + 3" )
-
Slitting Width:
-
≥10mm
-
Operator:
-
1 person
-
Auto Counter:
-
Yes
-
Automatic Tension Control:
-
2 Set
-
Web Guide System:
-
Yes, Two Electrical Eyes
Recommend Products
FPL320D Flat Die Cutter
Flexo Printing Machine
Paper Tube Cutter
Product Description

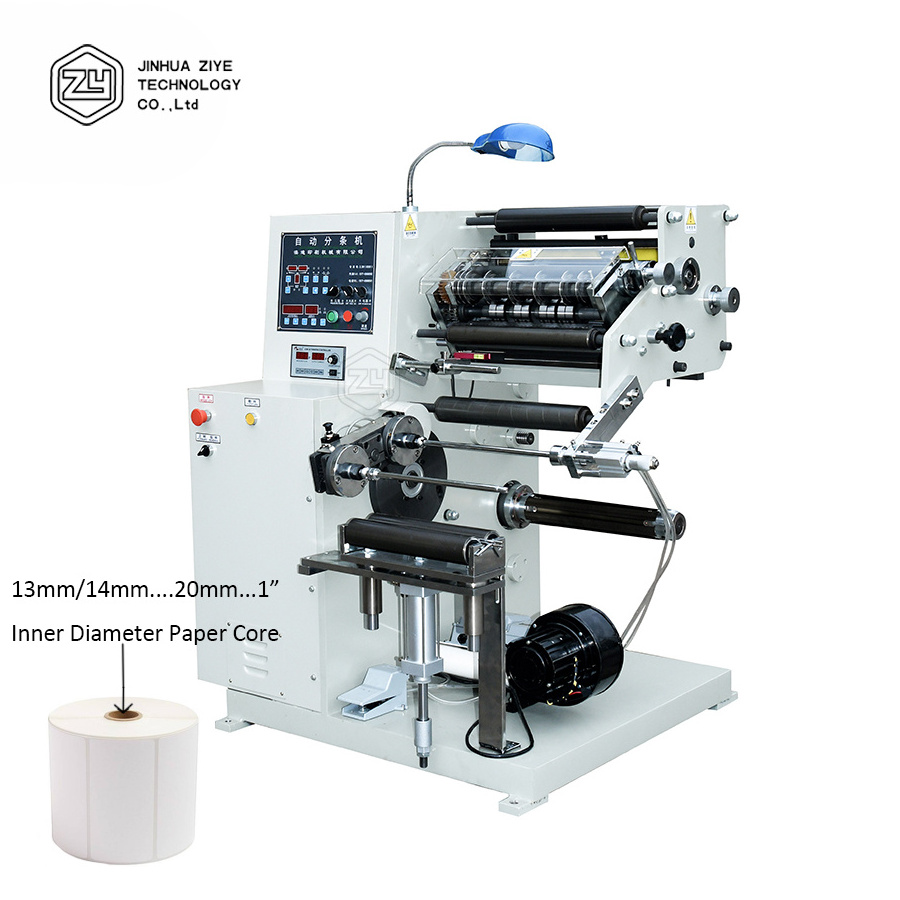

SL320B Printing Thermal Paper Label Slitting Roll Cutting Machine For Sale
The SL-320B automatic slitting machine is the auxiliary product of the automatic die cutting machine. This machine is suitable for slitting narrow pieces of paper with turret rewinder for small reels. It has meter counter and number counter. The unwinding is controlled by two photoelectric eyes, the structure of the complete machine is compact, fast, with high efficiency, operate the characteristic simply, operate steadily.
Main Configuration:
1.ONE SET SLITTING UNIT.
2.ONE 3” UNWIND SHAFT, TWO 1.5” REWIND SHAFTS + ONE 3” REWIND SHAFT.
3.LENGTH COUNTER & QUANTITY COUNTER
4.TWO PHOTOELECTRIC EYES – WEB GUIDE SYSTEM
5.ONE SET MAGNETIC BRAKE AND CLUTCH
6.ONE SET AIR BLOWER
7.TWO AUTOMATIC CONSTANT TENSION CONTROLLER
Main Configuration:
1.ONE SET SLITTING UNIT.
2.ONE 3” UNWIND SHAFT, TWO 1.5” REWIND SHAFTS + ONE 3” REWIND SHAFT.
3.LENGTH COUNTER & QUANTITY COUNTER
4.TWO PHOTOELECTRIC EYES – WEB GUIDE SYSTEM
5.ONE SET MAGNETIC BRAKE AND CLUTCH
6.ONE SET AIR BLOWER
7.TWO AUTOMATIC CONSTANT TENSION CONTROLLER
Samples
Label Stickers Roll
Aluminum Foil Roll
Plastic Film Roll: PET, BOPP, PE....
Paper Roll: Kraft Paper, Thermal Paper....
Product Paramenters
|
Machine Model
|
SL320B
|
SL-420B
|
|
Slitting speed
|
120m/min
|
120m/min
|
|
Max. Web Width
|
320mm
|
420mm
|
|
Max. Unwinding Diameter
|
600mm
|
600mm
|
|
Max. Rewinding diameter for big roll
|
500mm
|
500mm
|
|
Max. Rewinding diameter for small roll
|
200mm
|
200mm
|
|
Dimensions
|
1100*900*1300mm
|
1100*1000*1300mm
|
|
Main motor
|
2.2 KW
|
2.2 KW
|
|
Voltage
|
220V/380V
|
220V/380V
|
|
Min. Slitting width
|
10mm
|
10mm
|
|
Machine weight
|
500kg
|
600kg
|
Details Images
Slitting Unit
1-Set Slitting Unit comes with 8 Sets Rotary Knives in standard configuration.
Web Guide System
With Two Photoelectric Eyes to control paper move straightly.
Unwind Unit
With 1 pc 3" Air Expanding Shaft.
Can accept max diameter 600mm material jumbo roll. (can be customized)
Rewind Unit
With 2pcs 1.5” Air shaft, (Turret Rewind), can accept 200mm diameter roll.
With
1 pc 3" Air Expanding Shaft.
, can accept 500mm diameter roll.
Magnetic Brake and Clutch
With One 25 N.M Magnetic Brake, One 50 N.M Magnetic Clutch
Machine Drive By Synchronous Belt. Low Noise and Stable Operation
Auto Constant Tension Controller
With 2 Set ZXT Auto Constant Tapper Tension Controller For Unwind and Rewind
Blower Fan
Machine Has Blower Fan To Blow Away The Trimmed Sides to collect waste.
Counter
Machine can count with meter or quantity.
Razor Knife Set
Often used for cutting plastic film
Groove Roller
Cooperate with razor knife
