Quick Details
-
Door lock center:
-
85mm
-
Door lock backset:
-
50mm
-
Door lock latch bolt:
-
SS304 latch bolt
-
Door lock dead bolt:
-
SS304 dead bolt
-
Door lock logo:
-
Customize
-
Door lock turn:
-
2 turn
-
Door lock forend:
-
SS304
-
Door lock follower:
-
8x8mm
-
Door lock usage:
-
Wooden door
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Intelliware
-
Door lock name:
-
High Security Stainless Steel 304 Door Lock For Wooden Door
-
Door lock center:
-
85mm
-
Door lock backset:
-
50mm
-
Door lock latch bolt:
-
SS304 latch bolt
-
Door lock dead bolt:
-
SS304 dead bolt
-
Door lock logo:
-
Customize
-
Door lock turn:
-
2 turn
-
Door lock forend:
-
SS304
-
Door lock follower:
-
8x8mm
-
Door lock usage:
-
Wooden door
Customized wood door door lock, door lock, door door lock

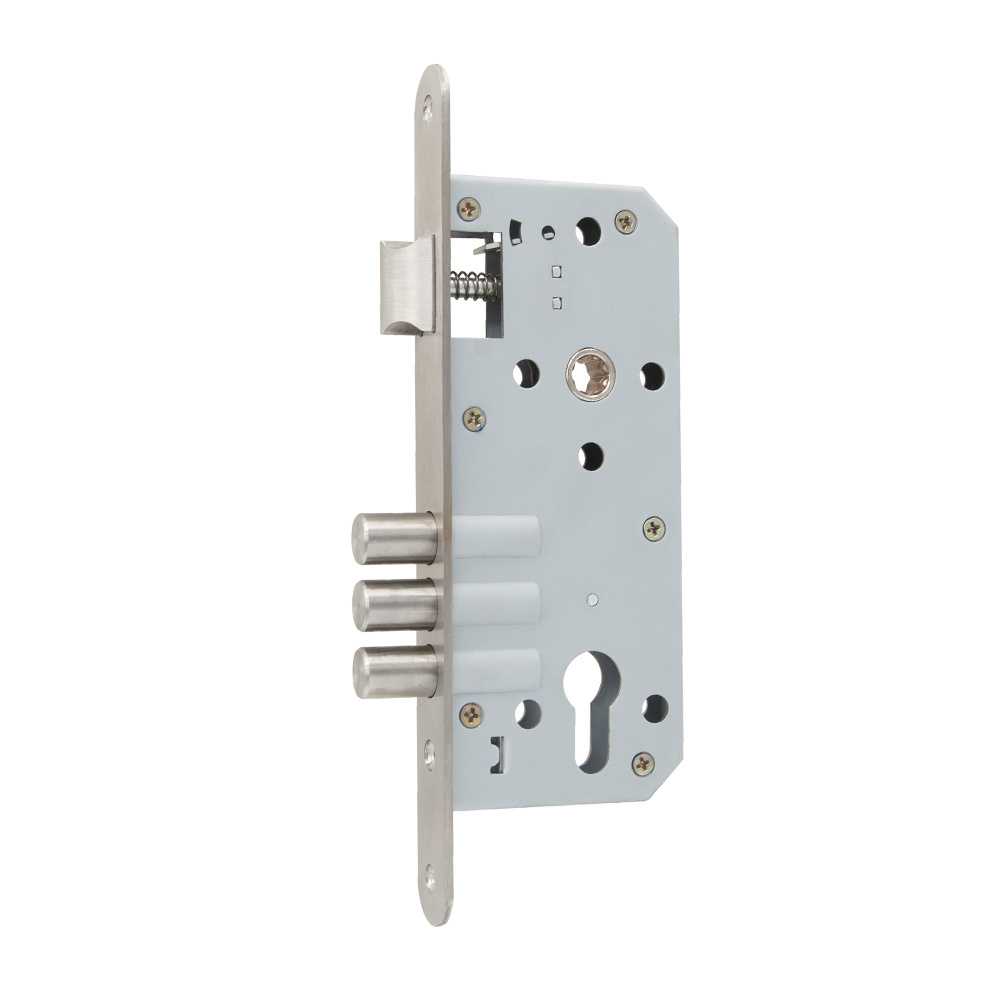

Product: High Security Stainless Steel 304 Door Lock For Wooden Door
1. Art No.: 1K1142
2. Center: 85mm
3. Backset: 50mm
4. Forend: Stainless steel 304
5. Latch Bolt: Stainless steel 304 latch bolt
6. Dead Bolt: Stainless steel 304 round bolt
7. Turn: 2 turn
8. Follower:8x8mm
9. Lock case:
Electro-galvanized fingerprint resistant steel.
Euro Profile Mortise Door Lock
1. Whether interior or exterior, in residential or commercial applications, with intelliware locks, you can rest assured you have found a choice or we make it for you.
| Market Reference | Available Center size reference |
| UK | 43mm,47mm,57mm |
| Germany | 72mm, 90mm, 92mm |
| Netherland | 55mm,72mm, 92mm |
| France | 70mm |
| Spain | 47mm, 70mm, 85mm |
| Italy | 85mm |
| Russia | 72mm, 85mm,90mm, 92mm |
| Latin America | 50mm,64mm, 70mm,72mm |
| North Africa | 70mm, 72mm, 78mm, 85mm, 90mm |
| China | 58mm, 72mm, 85mm |
2. Backset: available standard backset size is between 20 - 65mm
3. Forend: available standard forend length is between 100 - 265mm
4. Spindle: available 7 x 7mm, 8 x 8mm, 9 x 9mm
5. Deadbolt available in material: zamak / brass / steel / stainless steel
6. Latchbolt available in material: zamak / brass / steel / stainless steel
7. Latchbolt designed with easily reversible mechanism is available
8. Front and Striking plates available in radius or rectangular
9. Available for interior or exterior wooden door / PVC door / Aluminum door / Steel door
10. Suitable for sprung and unsprung lever furniture
11. Fixing with nickel/brass plated steel screw
Depending on the pivot direction of a door, a door is classified as a left and right hand door.
The door direction or side definition according to DIN 107 is determined as follows:
Visible position of the door hinges
On the left = DIN left
Visible position of the door hinges
On the right = DIN right
| 1.Inner packing | One piece per white box or color box with customer logo | ||||||
| 2.Out packing | 30 piece per carton box, then pallet | ||||||
| 3. We can also supply the packing according to customer's requirement | |||||||
1. Can I get a catalogue of your door lock?
Yes. Please send us a message or request in the form below. We will e-mail our comprehensive brochure in PDF to you very soon.
2. Can I get a free sample of door lock?
Yes. We can provide some samples free of charge but it will be freight collect by buyer for delivery. If you want to customize a special sample, it will cost material, tooling and time.
3. How long can the sample be delivered?
The sample usually can be ready in our factory within 1 week. If you choose door-to-door express, the courier will take 3-6 working days.
4. Can I have our own logo on product and packing?
Yes. We can imprint or laser the logo on product, and can print/sticker the logo on packing as well.
5.Which kind of door can I use with your door lock?
Our door locks can be used for wooden door, aluminum door, PVS door, passenger door and bathroom door etc. If you have any special requirement, please contact us.
6. I am looking for supplier who can O.E.M our product. Am I safe if I send our drawing for production?
Yes. Customer is 100% safe when cooperating with us by O.E.M. Intelliware is a company who has more than 20 years' experience in this field focusing on OEM service for customers. We won high reputation and trust among customers who have cooperated with us for long time. We never provide any OEM item to any third partner without agreement by original buyer.
7. Where is your factory? Can I visit your factory?
Our factory is located in Wuxi, Jiangsu Province, China. Any visitor is highly welcomed!
8. Can I place a sample order or trail order? What is your MOQ?
Yes, we welcome sample or trial order.
Usually, our standard MOQ is 3000pcs each model and each shipment.
For sample order, 1 piece or more is ok.
For trial order, more than 1000pcs can be accepted.
9. Who are your main customers?
We are mainly supplying large quantity of door locks to customer as follows:
Lock factory, door factory, D.I.Y. chain stores, hardware wholesalers and distributors, Security Solution Company, Internet shop and etc.
10. Can I become your agent in our market?
Intelliware are going to improve our service in overseas market. Welcome to become our agent or partner! For further details, please contact us.
11. How long will the goods be shipped?
Within 45 days after placing an order.
12. How to pay for the goods?
We accept Trade Assurance payment method.
The usual payment is 30% T/T in advance, and the rest 70% by T/T before shipment or 70% by D/P at sight via bank.
We also accept 100% irrevocable L/C at sight.
