Quick Details
-
Brand Name:
-
Fuerte
-
Model Number:
-
RH-B
-
Max. Current:
-
630A
-
Application:
-
HV & MV distribution power system
-
Type:
-
Three-poles
-
Insulator type:
-
porcelain
-
Sample:
-
Available
-
OEM:
-
Available
-
Main material:
-
Porcelain,red copper,HDG steel,brass
-
Contact coating:
-
Silver
-
Rated voltage:
-
33KV
-
Rated current:
-
630A
-
Quality Management Sytem:
-
ISO9001:2015 by Dekra
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
33KV
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Fuerte
-
Model Number:
-
RH-B
-
Max. Current:
-
630A
-
Application:
-
HV & MV distribution power system
-
Type:
-
Three-poles
-
Insulator type:
-
porcelain
-
Sample:
-
Available
-
OEM:
-
Available
-
Main material:
-
Porcelain,red copper,HDG steel,brass
-
Contact coating:
-
Silver
-
Rated voltage:
-
33KV
-
Rated current:
-
630A
-
Quality Management Sytem:
-
ISO9001:2015 by Dekra

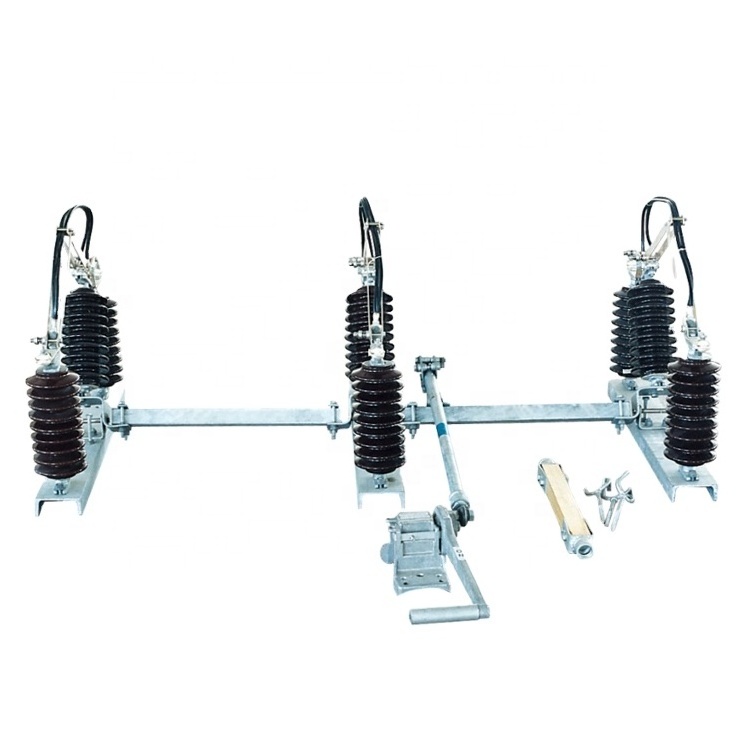

RH-B 33kV 630A 3-pole porcelain type isolating switch
Main technical specifications:
| Type | RH-B | |
| Rated Voltage | kV | 33 |
| Rated Current | A | 630 |
| 4s Heat Steady e.c. | A | 12500 |
| Shock Voltage | A | 31500 |
| Impulse Withstand Voltage | kV | 195 |
| Power-frequency Withstand Voltage | kV | 80 |
| Creepage distance | mm | 680 |
| Standard | IEC60694 | |
| Type test report | CNAS |
