Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Xinda machinery
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
5.5X2.8X1.7
-
Weight:
-
1.5 kg
-
count:
-
automaticlly
-
Width of raw material:
-
1200-2800mm
-
embossing device:
-
can add
-
perforation device:
-
can add
-
perforation distance:
-
adjustable
-
paper stands:
-
2 pcs
-
structure of machine:
-
compact
-
power:
-
380V,50HZ
-
Service:
-
Video technical support
-
After Warranty Service:
-
Online support
Quick Details
-
Type:
-
Slitting Rewinder
-
Production Capacity:
-
150-240m/min
-
Max. workable width:
-
3200mm
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Xinda machinery
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
5.5X2.8X1.7
-
Weight:
-
1.5 kg
-
count:
-
automaticlly
-
Width of raw material:
-
1200-2800mm
-
embossing device:
-
can add
-
perforation device:
-
can add
-
perforation distance:
-
adjustable
-
paper stands:
-
2 pcs
-
structure of machine:
-
compact
-
power:
-
380V,50HZ
-
Service:
-
Video technical support
-
After Warranty Service:
-
Online support
CIL-WW-D

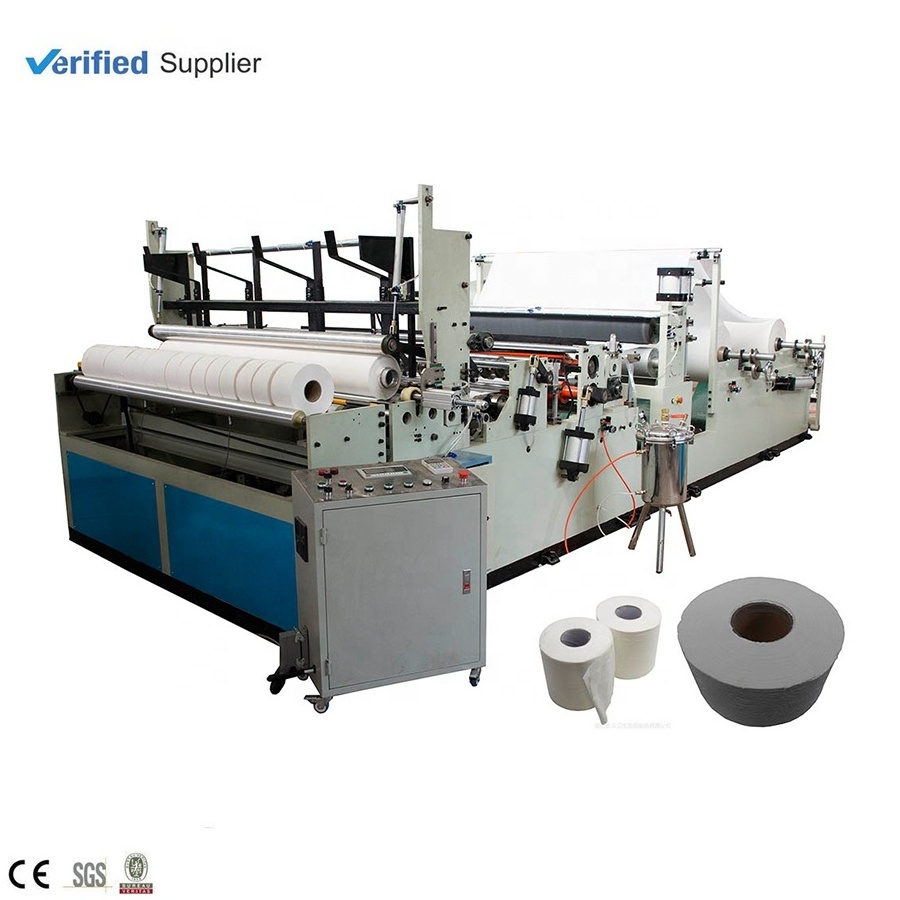

Automatic Small bobbin, toilet paper rewinding perforation toilet paper two use machine
Description of the equipment:
CIL-WW-D this equipment is to perforate and cut the raw paper into various sizes according to the requested. The finished product is neat, in good order and with equality tension. It has the feature of compact structure, easy and stable operation, less electricity consumption and covers a small area of 8.4 m². The highest production speed is 150-220m/min. This equipment is adjustable to meet the requested finished product. This model is the ideal equipment for paper making factory and paper processing factory.
This equipment can process raw paper of 1.2m -2.75m in width. There are two production model, machine with cutting function, can produce both ordinary toilet paper and small bobbin. High production efficiency .This machine is consist of stand of raw material, paper conveying unit, embossing unit, perforating unit, cutting unit ,rolling unit, electricity control and trimming spray system. The production process is : unreeling —→ embossing —→perforating—→cutting —→furl—→trimming spray
Video link:
https://youtu.be/FT1U2bhbQJc
Main technical parameter:
|
Model |
1092D |
1575D |
2000D |
2200D |
2400D |
2600D |
|
Width of raw material |
1200 |
1800 |
2000 |
2200 |
2400 |
2600 |
|
Dia. of finished product |
¢ 80-300mm(the tension is adjustable) |
|||||
|
Dia. of finished paper core |
Toilet paper : ¢ 30-50 ,small bobbin ¢ 76 (other specification please specify0 |
|||||
|
Dia.of raw material |
1200mm (can accept customers ’ requirement) |
|||||
|
Dia of core of raw material |
¢ 76.2mm |
|||||
|
Perforation distance |
4 knives 90-125mm (other specifications, please point ) |
|||||
|
Reeling speed |
150-200m/min |
|||||
|
Slitting knife number |
19 pcs (1575 for example) |
|||||
|
Parameter setting |
Touch screen man-computer interface operation system |
|||||
|
PLC |
PLC |
|||||
|
Raw material holder |
2 layers(3layer, please order) |
|||||
|
Pneumatic system |
Pressure 5kg/cm2pa(prepared by customers) |
|||||
|
Power |
5.5-15kw |
|||||
|
Overall Dimension (LXWXH) |
6100X2650X1800-6100X4050X1800mm |
|||||
|
Weight |
3.5-7T |
|||||
|
Embossment |
Single embossment, two side embossment and steel to steel embossing(depend on selection) |
|||||
|
Embossment bottom roller |
Felt roller, wool roller and rubber roller (depend on selection) |
|||||
Final product: Small bobbin and toilet paper roll
How about your machine quality, we are worry about the quality?
Xinda
is a mature brand in china,more than
20
years manufacturing experience of different kinds of paper machines.We strictly manufacture and manage according to IOS9001:2000 System.and can match all the CE standard or more strict standard.our paper machine is running well in more
How we visit your factory and what will be the procedure?
Our
factory
located in Quanzhou,
Fujian
province,our nearest airport is JIN JIANG airport,if you take plane,it will need about 1 hours from Guangzhou ,1.5hours from shanghai and 2 hour from Beijing.We will pick you up from airport as well as the train station..Welcome you and your team to visit us at any time!
Your machine price is high,is there any discount?
We always provide high quality paper machines,we are paying more attention to foreign market, as for communication time after sales, also it needs very long time to send new parts.Our paper machines have enough quality standard to make sure the machine can work more than the real warranty period. Our marketing style is quality equal to price, the price will be acceptable for our clients and durable for our machines. Anyhow,when we will negotiate the price with each other during our meeting in factory and try our best to get a good satisfaction.
The seller will send one engineer for installation, start up and training on the operations in the buyer’s plant. The buyer will be responsible for the two-way air tickets, transportations, accommodations and meals during their stay, plus USD70 per day for allowance. Also, the buyer should provide all the necessary means and personnel to help on the installation and start up of the machinery.
The seller will always provide long term service on technology.
