Quick Details
-
Dimension(L*W*H):
-
According to model
-
Weight:
-
1000
-
Power (kW):
-
According to model
-
Name:
-
rubber ring making machine
-
Application:
-
Rubber ring making
-
Control System:
-
Electric Automatic
-
Color:
-
Customers' Demand
-
Product:
-
Rubber ring
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Guangyue
-
Voltage:
-
According to model
-
Dimension(L*W*H):
-
According to model
-
Weight:
-
1000
-
Power (kW):
-
According to model
-
Name:
-
rubber ring making machine
-
Application:
-
Rubber ring making
-
Control System:
-
Electric Automatic
-
Color:
-
Customers' Demand
-
Product:
-
Rubber ring

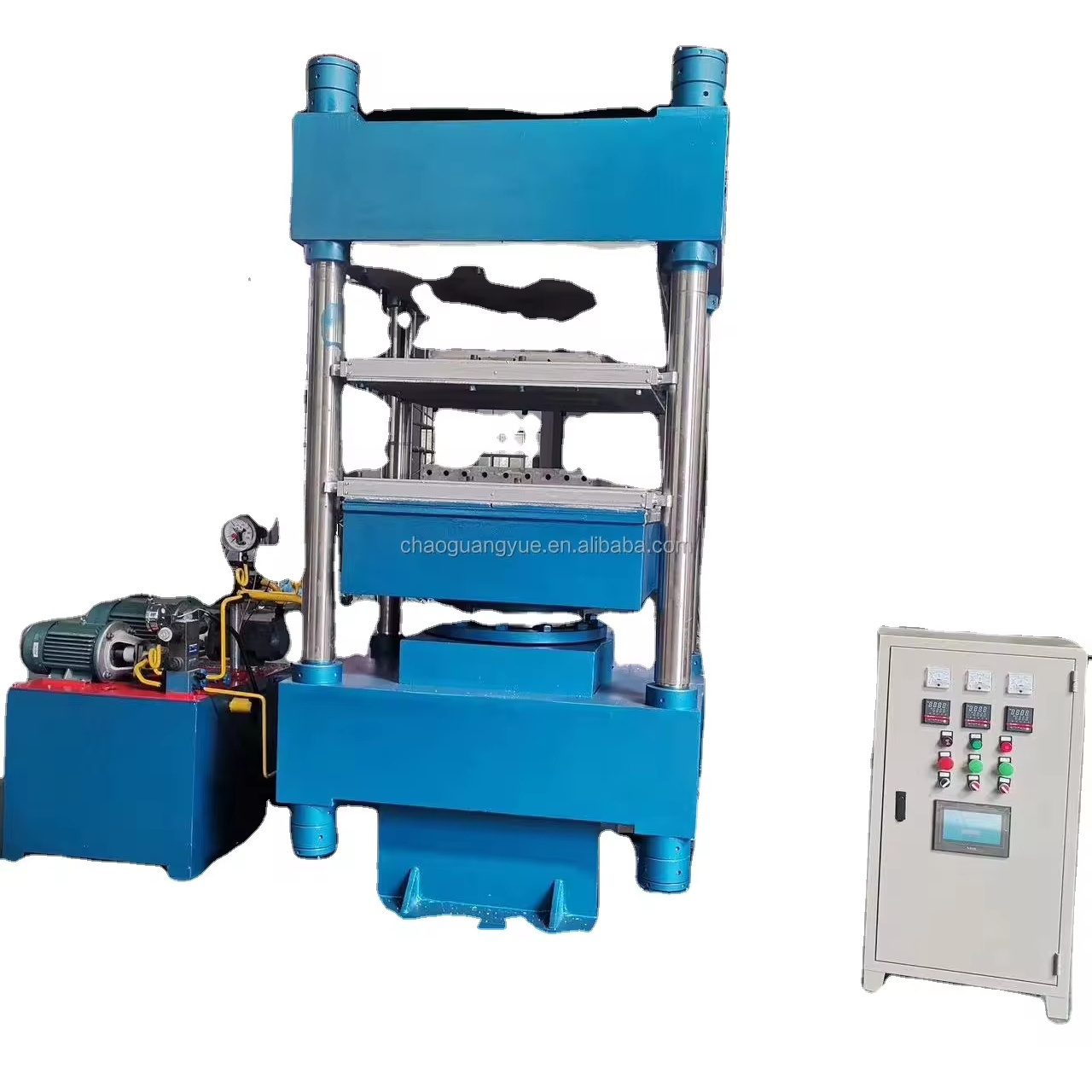

Rubber o ring making machine vulcanizing press machine
1. Introduction
1.1This machine is frame and four colomn structure, including main machine, hydraulic station, electric controlling cabinet
1.2Main machine is composed by base, plunger piston, platform, beam, automatic mold pushing-out device and compulsory mold opening device
can be used as hydraulic press machine
2. Pictures of some products
3.Technical Parameters
|
Parameters/version
|
XLB350*350*2 |
XLB400*400*2 |
XLB500*500*2 |
XLB600*600*2/4 |
XLB750*850*2 |
XLB1000*1000*2 |
|
Mould closing force |
0.25MN |
0.5MN |
0.8MN |
1.0MN |
1.6MN |
2.5MN |
|
Hot plate spacing |
125mm |
125mm |
125mm |
125mm |
125mm |
200mm |
|
Hot plate layer |
2 |
2 |
2 |
2/4 |
2 |
2 |
|
Plunger stroke |
250mm |
250mm |
250mm |
250/500mm |
250mm |
400mm |
|
Heating way |
Electricity/stream |
Electricity/stream |
Electricity/stream |
Electricity/stream |
Electricity/Stream |
Electricity/stream |
|
Main motor power |
2.2kw |
2.2kw |
2.2kw |
2.2kw |
3kw |
5.5kw |
|
The thermal power |
2.4kw/board |
3kw/board |
3kw |
7.5kw/board |
9kw/board |
10.8kw/board |
|
Size(L*W*H)mm |
1450*400*1350 |
1600*400*1440 |
1450*690*1818 |
1880*780*1660 |
2100*1010*1900 |
2400*960*2500 |
|
Weight(kg) |
1200 |
1500 |
1700 |
2500/3100 |
3560/4300 |
8300 |
If you make nonstandard machine, kindly confirm me below ,so that we can make precise quotation.
4.why choose us:
1 manufacturer direct sale, can ensure delivery time and quality.
2 plunger diameter difference is very small, which ensure pressure.
3 our vulcanizing press is equiped with PLC system . automatic controling temperature and pressure, automatic alarm, automatic loading ,emergency stop ,digital readout and son on.
4 low noise, no oil leakage, no pressure off.
5 small temperature difference of hot plate,
Plate temperature difference: ±1 °C, which follows the national standard.
6 the parallelism differnce does not exceed ±0.01-0.02mm
7 hot plate use high quality carbon steel Q-235 material.
7 heating method according to your request : electricity , steam heating , conduction oil heating .
8 we can make machine according to the your request.
9 we can give a good discount according to your quantity
5.Packaging and shiping
For FCL goods, we usually pack machines with stretched film and then load them to the container. to ensure safety, we will fix machine with steel . For LCL goods, we usually pack machines with standard wood boxes first, and then they will be transported .
6.Company information
Qingdao Chaoguangyue manufacturer of rubber machine,which is located in the west coast of Qingdao economic district, with 10 million registered capital. The company covers an area of 5000 square meters with 26 professional and technical staffs and 5 senior engineers. The technical staffs have working experience in large tire enterprise who can design more suitable equipment for the customer as for tire production process. Also they can provide new factory site planning and other services. The company’s main products are: Rubber kneader, rubber mixing mill, rubber sheet cooling machine, inner tube production line,tyre production line, vulcanizing press, waste tyre recycling plant…
welcome to visit our factory!
7.FAQ
1. Are you manufacturer ?
Yes, we are CE SGS ISO approved rubber products manufacturer in China.
2. Can you design new product for us?
Yes,we have a professional development team that make new products according to your requirements.
3 . How long is your guarantee? Two year (Calculated from the equipment arrives at the customer’s side.).
4. How to contact us?
You can click 'send' now.
If you want to know more information about our products welcome to contact us in
any time , and welcome to our factory!
