Quick Details
-
Life Span:
-
15-20 Years
-
Wall/Roof Material:
-
Sandwich Panel Or Steel Plate
-
Window and Door:
-
Alloy Window and Steel Door
-
Standard Size:
-
20ft 40ft or Custom requirement
-
Roof:
-
50mm/75mm EPS/rock wool sandwich panels
-
Color:
-
Red,blue,white,and others customers can customize
-
Advantage:
-
Collapsible/ Portable
-
Keyword:
-
foldable office container
-
Processing Service:
-
Bending, WELDING, Decoiling, Cutting, PUNCHING
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KEESSON
-
Product Type:
-
Container Houses, Folding Container Houses
-
Life Span:
-
15-20 Years
-
Wall/Roof Material:
-
Sandwich Panel Or Steel Plate
-
Window and Door:
-
Alloy Window and Steel Door
-
Standard Size:
-
20ft 40ft or Custom requirement
-
Roof:
-
50mm/75mm EPS/rock wool sandwich panels
-
Color:
-
Red,blue,white,and others customers can customize
-
Advantage:
-
Collapsible/ Portable
-
Keyword:
-
foldable office container
-
Processing Service:
-
Bending, WELDING, Decoiling, Cutting, PUNCHING
Products Description

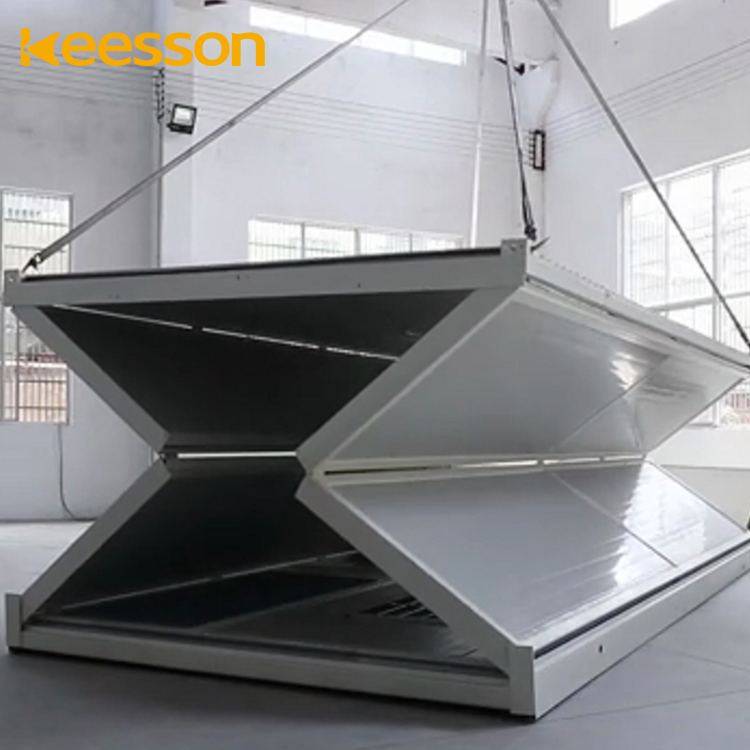

Keesson foldable container
Advantage：
1) Can be used as dormitory temporary hospital toilet office storage room etc.
2) Can be installed in a short time assembled by bolts with a high intensity;
3) Can be used repeatedly with a life span of more than 30 years;
4) With a well-sealed and reliable structure water-proof fire-resistant moisture-proof and anti-corrosive
5) With supporting facilities such as washbasin shower air-conditioner, socket and so on;
6) The special design enables to carry this container house in a whole without damages, so it's quite suitable for movable projects.
Only 3 Minutes
All the steel structures are galvanized &bake-painted.
It can save transportation, installation and storage cost.
Fire proof,water proof, corrosion-resistant,sound-insulation.
Environment protection :no construction waste, materials can be recycled.
Please click the
"Sand Inquiry"
button at the bottom of the page to send your enquiries and requirements to us. We will provide you with the best service and price!
Product Paramenters
|
Specification
|
Standard product size
|
2500*5800*2450mm（Different size customization Please click the "Sand Inquiry" button to contact us）
|
|
|
Roof form
|
Roof form and material
|
|
|
Folded state
|
505mm (height)
|
|
|
Net weight
|
1160KG
|
|
|
Drainage form
|
External drainage organization
|
|
|
Number of layers
|
≤2 layers
|
|
Roof
|
External roof
|
0.45mm cover steel plate + 40mm glass wool + ceiling steel plate 0.3mm
|
|
|
Internal suspended ceiling
|
12 kg 50mm 0.326 Dongshang foam sandwich panel
|
|
|
Insulation board
|
8kg 50mm 0.236 foam sandwich panel
|
|
|
Framework
|
T1.2mm special-shaped pass material Q235
|
|
|
Hanging head
|
T16mm Q235 steel plate
|
|
Floor
|
Framework
|
Bottom side beam: t1.2mmQ235 galvanized steel pipe
|
|
|
|
End side beam: t1.2mmQ235 galvanized steel pipe
|
|
|
|
Beam: t1.2mmQ235 galvanized steel pipe
|
|
|
Bottom plate
|
T16mm magnesium oxychloride fireproof floor
|
|
Side Panel
|
All outer/end plates
|
8kg 50mm 0.236 foam sandwich panel
|
|
|
Framework
|
T1.2mm Q235 galvanized steel pipe
|
|
Door
|
1 exterior door
|
Steel frame; inner frame size: 977mm*2360mm
|
|
Window
|
/
|
2*Aluminum alloy white unilateral sliding window, frame 930/1200mm
|
|
Folding Hinge
|
/
|
T3mm 180*76 galvanized hinge
|
|
Electrical System
|
/
|
Electrical wiring must be safe and concealed and installed in strict accordance with moisture-proof specifications. All electrical
products must comply with CE certification and support European certification. |
|
Technical Index
|
/
|
Voltage 220V, 50HZ
|
|
Circuit Composition
|
/
|
Connect the circuit according to the circuit engineering specifications. Indoor: wall socket. Light switch, LED light 2x16w.
|
|
Socket Distribution
|
/
|
Ceiling 16A three plugs*2, 10A five plugs with a switch at the front, one 16A air conditioning socket at the back, five plugs and
six. |
|
Protective Coating
|
Overall framework
|
Electro-galvanized: zinc 10 microns; primer coating: zinc-rich 20 microns; topcoat: polyurethane topcoat 50 microns; total coating
thickness: 80 microns. |
Different size customization Please click the "Sand Inquiry" button to contact us ！！！
Compared with other suppliers, we have the following advantages
1.manufacture with CE and ISO certificate,with professional QC and after sale team to ensure the quality.
1.manufacture with CE and ISO certificate,with professional QC and after sale team to ensure the quality.
2. professional pacakge:steel pallet +plastic film(most of the supplier will load the materials of modular house pieces by pieces in container,it is easy to get damaged during shipping)
3. competitive price with good quality:we lower the price without lower the quality to give distributor more profit to do bigger business together
4. galvanized frame+powder coating,hard to get rusted.
5. houses 100% for export,with rich experience of building regulations for different countries.
Our Project
All pictures are shot based on practicality, and anyone who plagiarizes them will be called to account.
Packing&Shipping
Professional pacakge:steel pallet +plastic film
We guarantee that the goods can reach the designated place intact
Customer Feedback
* All pictures are shot based on practicality, and anyone who plagiarizes them will be called to account.
* In order to protect the privacy of our customers, we will cover their names and avatars.
