- Product Details
- {{item.text}}
Quick Details
-
Bottle Volume(ml):
-
10000 ml
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Nancheng machinery
-
Year:
-
2021
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
153*60*200CM
-
Hollow part volume:
-
1000ml
-
Power (kW):
-
10
-
Weight (KG):
-
1200 KG
-
Product name:
-
Automatic Blowing Molding Machine
-
Suitable bottle:
-
PET Bottle Size 100ml-20L
-
Type:
-
Stretch Pet Blow Moulding
-
Key words:
-
PET Bottle Blowing Moulding Machine
-
Capacity:
-
6000BPH
-
Cavity:
-
2/4/6 Cavity
-
Raw material:
-
PET Plastic Bottle Preform
-
Product Type:
-
Blow Moding Machine
-
Advantages:
-
Low Energy Consumption
-
Customer's requipment:
-
Bottle Samples
-
Marketing Type:
-
New Product 2021
Quick Details
-
Neck Diameter(mm):
-
45 mm
-
Max.Bottle Diameter(mm):
-
80 mm
-
Max.Bottle Height(mm):
-
370 mm
-
Bottle Volume(ml):
-
10000 ml
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Nancheng machinery
-
Year:
-
2021
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
153*60*200CM
-
Hollow part volume:
-
1000ml
-
Power (kW):
-
10
-
Weight (KG):
-
1200 KG
-
Product name:
-
Automatic Blowing Molding Machine
-
Suitable bottle:
-
PET Bottle Size 100ml-20L
-
Type:
-
Stretch Pet Blow Moulding
-
Key words:
-
PET Bottle Blowing Moulding Machine
-
Capacity:
-
6000BPH
-
Cavity:
-
2/4/6 Cavity
-
Raw material:
-
PET Plastic Bottle Preform
-
Product Type:
-
Blow Moding Machine
-
Advantages:
-
Low Energy Consumption
-
Customer's requipment:
-
Bottle Samples
-
Marketing Type:
-
New Product 2021
Product Description
BST-6000 automatic stretch blow molding machine is one of the newest products for our customer. Its strongest point is energy savings. Adopting high pressure clamping, automatic stretch blow molding machine makes self-adjustment in accordance with the different pressure needed during production, thus ensures the super clamping force. While the high pressure sealing system with automatic adjustment permits that mold sealing is under condition of 100% air tightness before blowing and avoid air energy loss owing to incomplete air tightness. With such effective control over air energy and power, it takes a big part to lower costs and improve efficiency.
Technical Parameters
|
TYPE
|
ITEM
|
UNIT
|
technical data
|
|
Container
|
Product material
|
/
|
PET
|
|
|
Container volume
|
L
|
0.05-2.0
|
|
|
Theoretic output
|
Psc/hr
|
5500
|
|
|
Preform length
|
MM
|
50-200
|
|
|
Max height of bottle
|
MM
|
320
|
|
Molding
|
Preform inner diameter
|
mm
|
15-60
|
|
|
Bottle diameter
|
mm
|
35-110
|
|
|
Max mold plate dimension (L × W)
|
mm
|
380 × 460
|
|
|
Max mold thickness
|
mm
|
200
|
|
Air compressor
|
High pressure compressor
|
M3/Mpa
|
1.2/30 × 3set
|
|
|
Locking force
|
KN
|
170
|
|
|
Mold opening stroke (adjustable)
|
mm
|
200
|
|
|
Low pressure compressor
|
M3/Mpa
|
2.0/10 × 1sets
|
|
|
Air dryer
|
M3/Mpa
|
2.0/30 × 1sets
|
|
Main machine electricity
|
Power
|
KW
|
30
|
|
|
Voltage / frequency
|
V/Hz
|
380/50hz
|

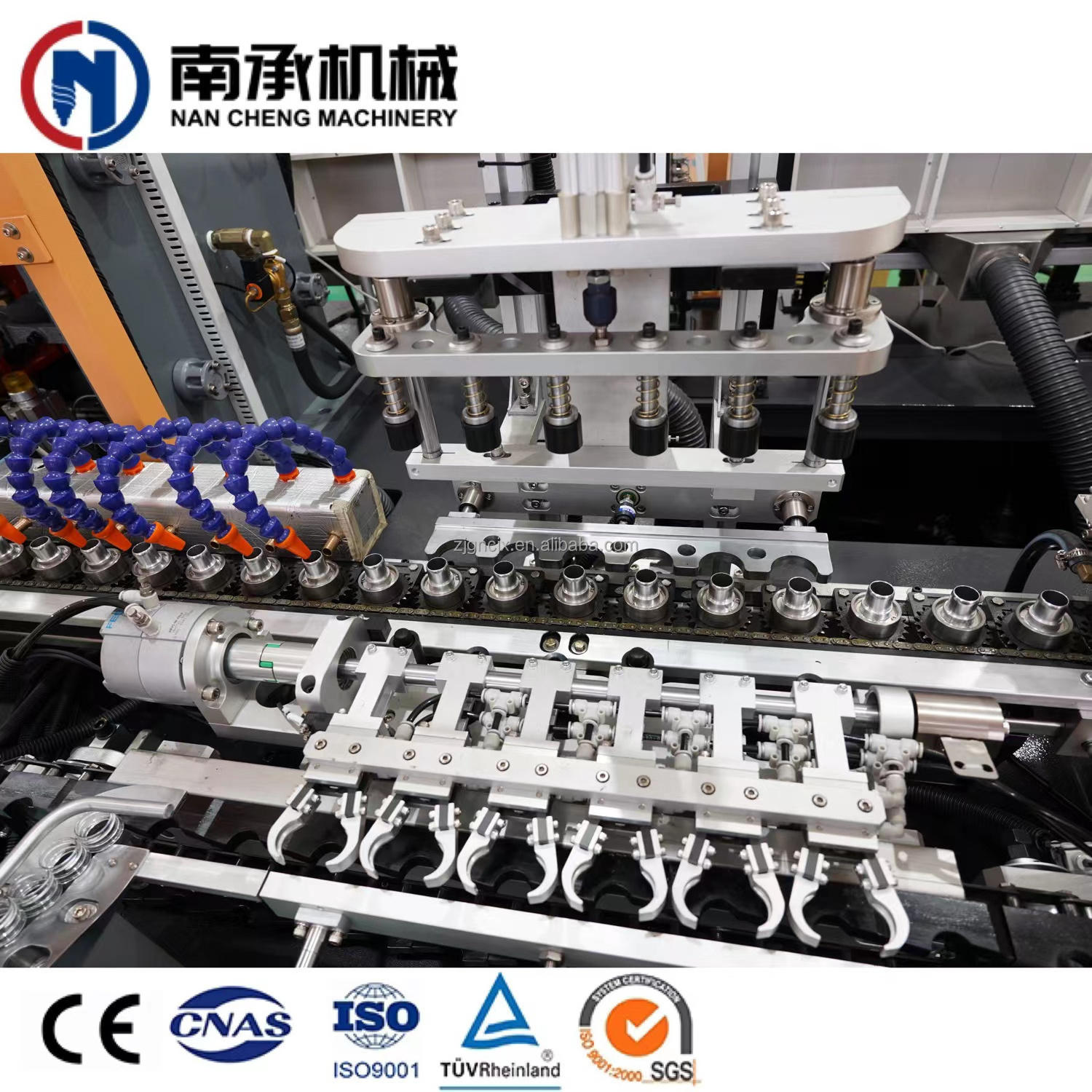

Details Images
Application
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
