Quick Details
-
Power:
-
3kw
-
Min. Lifting Height:
-
100mm
-
Table Size:
-
Customer's Demand
-
Overall Dimensions:
-
customized
-
Weight:
-
1000 kg
-
Keywords:
-
cargo lift goods lift platform
-
Color:
-
optional
-
Application:
-
Transporting goods in warehouse to different level
-
Material:
-
High-duty steel structure
-
Platform:
-
anti-skid
-
Voltage:
-
220v/380v, AC power, 1 or 3 phase, can also be made as local voltage
-
Lift Speed:
-
4-6m/min
-
Feature:
-
Convenient delivery goods , heavy duty , stability elevator
-
Factory:
-
Yes
-
Installed:
-
in a pit or without pit
Quick Details
-
Warranty:
-
3 years
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Quentin
-
Power:
-
3kw
-
Min. Lifting Height:
-
100mm
-
Table Size:
-
Customer's Demand
-
Overall Dimensions:
-
customized
-
Weight:
-
1000 kg
-
Keywords:
-
cargo lift goods lift platform
-
Color:
-
optional
-
Application:
-
Transporting goods in warehouse to different level
-
Material:
-
High-duty steel structure
-
Platform:
-
anti-skid
-
Voltage:
-
220v/380v, AC power, 1 or 3 phase, can also be made as local voltage
-
Lift Speed:
-
4-6m/min
-
Feature:
-
Convenient delivery goods , heavy duty , stability elevator
-
Factory:
-
Yes
-
Installed:
-
in a pit or without pit
Customized size goods lift elevator freight cargo lift platform
Hydraulic guide rail goods lift: Mainly used for two or three storey buildings transport goods high efficiency.
The Minimum height is 150mm-300mm, it is suitable for working sites where pit can not be excavated . Meanwhile, it is unnecessary to set the upper lift point. It is easy operation and working reliable. The transpotation of goods is economical and convemient.
Each floor settings control switch, it will be automatic stop when lifting reached the target height. . Every floor install the anti-fall lock to avoid the table subsidence.
Application:
Widely used -in factories, warehouses, industrial plants, institutions—anywhere that products or supplies need
to move from one level to another. provides fast, efficient,convenient and safe access to mezzanines, balconies,
basements, and any levels in multistoried building.
It can be installed indoor and outdoor applications.
Feature:
Firm structure, large loading capacity, stable lifting, somple and convenient assembly and maintenance.
It is an economical and practical ideal equipment for goods transportation between low floors to higher
floors. Selection of various alternative configurations based on the assembly environment and the use
requirement of the lifting platform can obtain better use effects.
Customized by your parameters, please let me know the lifting height, table size, loading
capacity needed.
Video on youtube:
https://www.youtube.com/watch?v=s_lOp9vrd64&feature=youtu.be
1). Installation by no pit: there will have a ramp bettwen the lift platform and ground, it is easier to load&unload:
2). Installation in a pit: the depth of the pit about 200-300mm.
Installed outdoor : vertical the wall
Installed indoor:

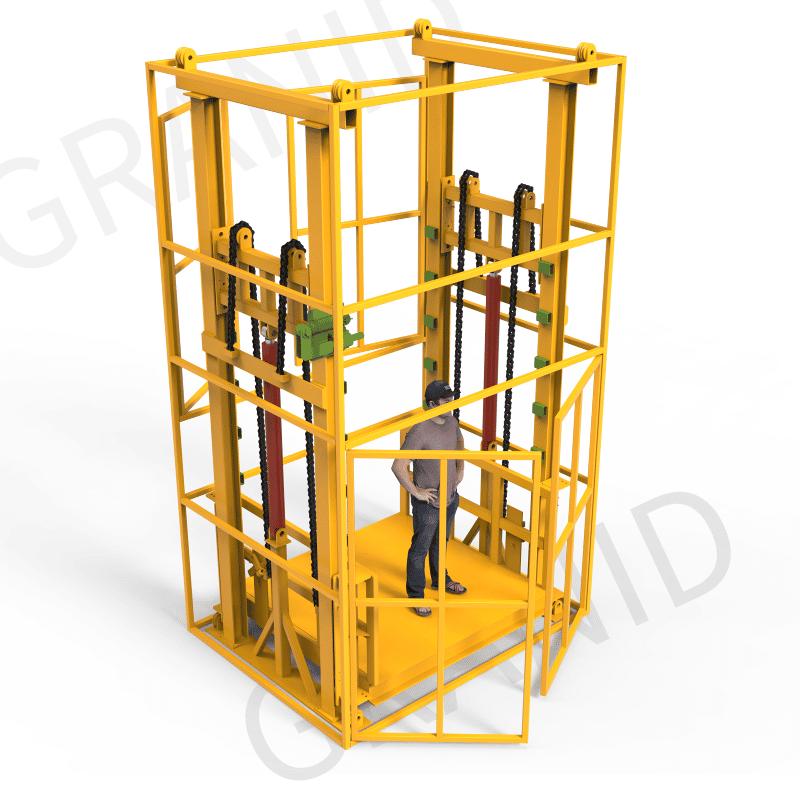

Hydraulic guide rail goods lift surrounded by mesh, more secure:
Safety Device:
1:Spillover valve: prevent high pressure when the goods lifting moves up. It will adjust the pressure.
2:Emergency manual valve: machine will slowly falling when suddenly power off or a other emergency.
3:Explosion-proof valve: protect hydraulic pipe, anti-hydraulic pipe rupture.
4: Temperature protection, when the temperature of the hydraulic oil is substandard, the machine will stop working until the temperature reverts to the safe standard.
5: The balance wire rope protect the table size not incline when working.
6: The anti-falling wire rope will protect the table size slowly falling when there is a emergency.
1). Famous brand cylinder, heavy duty loading suppot:
2). Anti-Falling Wire Rope: protect the equipment not suddenly falling when there is
an emergency
3).Balance Wire Rope: keep the table in safe balance.
Cargo lift supported customized for you. Please kindly let us know your interested lift height, capacity and platform size. As follows. Detailed quotation will be sent to you soon.
|
Model |
Loading Capacity |
Lifting height |
Min.height |
Table size |
Power |
|
QTSJD0.5-3.5 |
500kg |
3500mm |
150mm |
2000*1500mm |
2.2kw |
|
QTSJD1.0-4.5 |
1000kg |
4500mm |
150mm |
2000*1500mm |
3kw |
|
QTSJD2.0-5.5 |
2000kg |
5500mm |
150mm |
2000*1500mm |
3kw |
|
QTSJD3.0-6.5 |
3000kg |
6500mm |
160mm |
2000*1500mm |
3kw |
|
QTSJD1-7.5 |
1000kg |
7500mm |
150mm |
1200*1200mm |
1.5kw |
|
QTSJD1.5-8 |
1500kg |
8000mm |
150mm |
1800*1400mm |
2.2kw |
|
QTSJD2.0-7.5 |
2000kg |
7500mm |
150mm |
2000*1500mm |
2.2kw |
|
QTSJD3.0-7.5 |
3000kg |
7500mm |
160mm |
2000*1600mm |
3kw |
|
QTSJD1.0-10.5 |
1000kg |
10500mm |
150mm |
1800*1400mm |
2.2kw |
|
QTSJD1.0-15 |
1000kg |
1500mm |
150mm |
1800*1500mm |
2.2kw |
|
QTSJD3.0-5.5 |
3000kg |
4500mm |
160mm |
5000*3000mm |
4kw |
schematic diagram:
| Packaging | International standard packaging: Wooden case packaging |
| Delivery days | 15-20 days from payment |
Customer Visit:
Our services:
1. The total machine guarantee is 12 moths.
2. All the machines will be full tested before shipment.
3. 24 Hours technical support, email, telephone or video online.
4. User-friendly english manual for machine using and maintaining.
5. We will send you parts for free if there are any non-human factors problem during warranty
time.
FAQ:
1.Delivery time
Within 10- 15 working days after we receive the order.
2. Payment terms
T/T, L/C, Western Union, PayPal, other kinds, pls contact with us.
3. MOQ
Generally speaking, the MOQ is 1 set, Different products have different MOQ, pls contact with us.
4. Custom-made
