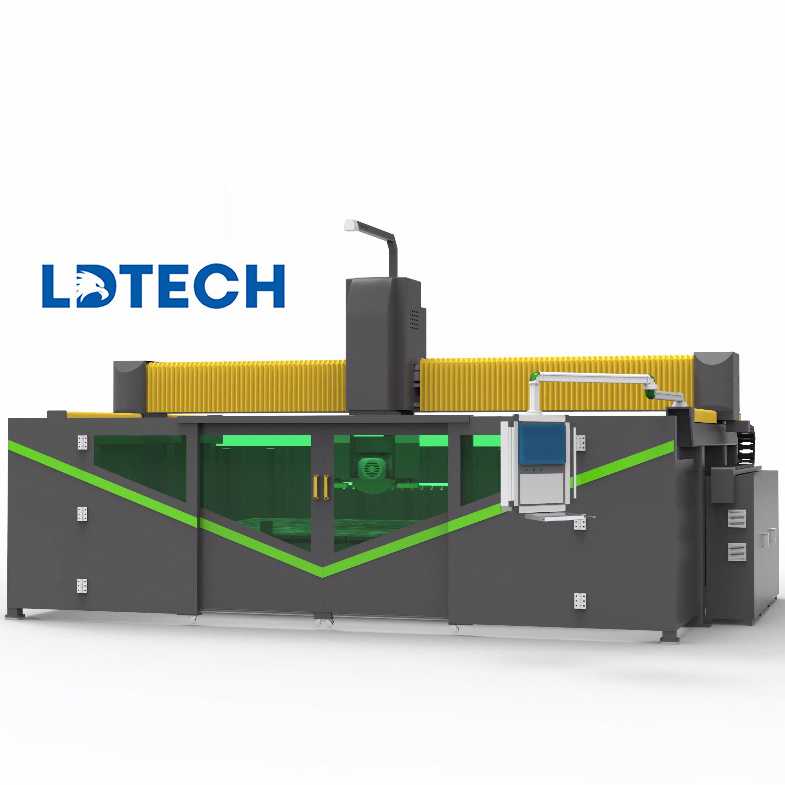

Italy quality system 5 axis bridge saw stone cutting machine granite marble sintered stone quartz cutting saw machine
Italy quality system 5 axis bridge saw stone cutting machine granite marble sintered stone quartz cutting saw machine
Italy quality system 5 axis bridge saw stone cutting machine granite marble sintered stone quartz cutting saw machine
Italy quality system 5 axis bridge saw stone cutting machine granite marble sintered stone quartz cutting saw machine
Italy quality system 5 axis bridge saw stone cutting machine granite marble sintered stone quartz cutting saw machine
Italy quality system 5 axis bridge saw stone cutting machine granite marble sintered stone quartz cutting saw machine
Italy quality system 5 axis bridge saw stone cutting machine granite marble sintered stone quartz cutting saw machine
Italy quality system 5 axis bridge saw stone cutting machine granite marble sintered stone quartz cutting saw machine

Italy quality system 5 axis bridge saw stone cutting machine granite marble sintered stone quartz cutting saw machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $35000
≥2 Sets
US $33000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Production Capacity:
20000mm/min
Place of Origin:
China
Brand Name:
LD
Voltage:
380V/50Hz, 380V/50Hz
Weight:
5500 kg
Application:
Stone Marble Granite Quartz Sandstone
Spindle power:
22KW
Name:
bridge saw machine
Function:
Stone Engraving Carving Cutting
After-sales Service Provided:
Online Support
Feature:
5 Axis Cnc Stone Carving Machine
Description:
Cnc Bridge Stone Cutting Machine

Quick Details

Type:
bridge saw stone cutting
Power:
22KW
Cutting thickness (max):
400mm
Production Capacity:
20000mm/min
Place of Origin:
China
Brand Name:
LD
Voltage:
380V/50Hz, 380V/50Hz
Weight:
5500 kg
Application:
Stone Marble Granite Quartz Sandstone
Spindle power:
22KW
Name:
bridge saw machine
Function:
Stone Engraving Carving Cutting
After-sales Service Provided:
Online Support
Feature:
5 Axis Cnc Stone Carving Machine
Description:
Cnc Bridge Stone Cutting Machine
Products Description
Stone CNC Machine

LD-Q4+1 Bridge Saw CNC machine. is the new generation multi-function processing machine which is associated to be designed and manufactured between LDTech and research institute of famous college. With pattern operation and advanced control system and synchronous CNC control system, the machine can be easily operated easily without knowing complicated CNC knowledge.
It is popularly used for cutting slabs and blocks of both natural and synthetic stone, and ceramic.

Functions.

* M ake vertical, 45° Miter Cut with Disc Blade .
* Make Sink cutting, such as undermount sink cut out.
* Engraving, Polishing, Milling etc with Extra high speed spindle.

Features.

* Cost-Effective: Auto finish 5 axis working by Q4+1 Machine, Cheaper price get multi-function
machine.
* Easy Operation: Can easy edit/Read any drawings/.DXF drawing.
No need professional CNC Experience.
* High Processing Speed Machine:
Cutting speed Max. can be 60M/Meter
* Extra Spindle:
With High Speed Spindle: 24000RPM, compare standard 5 axis machine RPM( 0-6000RPM), Spindle more professional in engraving,
polishing etc.
Optional.
* Camera for local slab by picture.
* Suction cups for auto slab movement
* Cast Iron bridge for e nsure that the accuracy of the machine is not affected by time
* Rubber table for ensure that table doesn't lose its shape due to moisture absorption
* Pulley for feeding slab easily.
* Laser measuring Tools for getting exactly size customized by different customer.
Technical Parameters
Machine Model
LD-Q4+1
Working Size
3200*2000*400MM
Power of Main Motor
15KW/(Optional: 18.5KW)
Dia of Saw Size
ø350-ø400( Customizable)
Extra Spindle Power
6 KW (Optional:7.5KW)
Max. cutting thickness
90mm
Tool Holder Type
Er32 (Optional BT40)
Commend
G Code
Max. Speed of X/Y axis
60000mm/min
Max. Speed of Z axis
8000mm/min
Spindle Rotating Speed
0-18000 RPM
Dimensions (LxWxH)
5300*3300*2450MM
Gross weight
4200KGS
Working Voltage
AC380V/50HZ( Customizable)
Samples Display
Application.
* Processing for granite, marble, quartz, ceramic tile, sintered stone etc
* Auto all kind of counter tops processing, such as auto 45° miter, sink cut out etc
* Can polishing the edge
* Faucet holes, recessed drainer/drain grooves Processing
* Engraving patterns, carving words
Details
Cast Iron Bridge
* Cast Iron bridge s ignificantly improve structural stability.
* Avoid machine shake.
* Ensure accuracy remains unchanged.
Small factory use welded bridge, which will deformed after years working.
Easy Operation System
* LDTech-CAM System developed is based on user experience .
* CNC Machine, operation simple as PLC.
* Free update online.
* Devlelop f unctions based on customer applications.
* Can Read .DXF file, such as AutoCAD.
* Better hardware than **NC.
Bus Absolute Value Servo Motor & Driver
* Absolute Servo > Servo>hybrid Servo>Step.
* Higher accuracy, Powerful, more torque.
* Machine memory , machine can know the exactly location even when machine power off.
* I ntelligent Saving Time , machine can working directly, no need mechanical origin.
* SAFE. standard machine need limited sensor device, avoid machine C Axis no-stop circle to damage machine wire.
Slab Holder
* 4 sets of slab holder.
* Avoid slab movement when we need processing small size & lightweight slab.
* Auto Holder when we need Spindle working.
* Also can manual control to holder slab.

Slab Fixer
* 5 Sets of slab fixer.
* Cutting Direction .
To make sure t he cutting direction is horizontal with the edge direction when we need retain the original edge without cutting.
* Manual control.
Industrial Design
* All the electric part had covered by thick sheet metal.
* Three-layer painting technology is used to achieve rust prevention.
* The whole machine is galvanized ( Optional).

RV Reducer
* RV100C manipulator reducer .
* More powerful than 50C Reducer.
* RPM Max. 20.
* Large wire holes to reduce wear.
High Speed Machine & Industrial Computer
* High-precision industrial grade spare part make sure our machine have high Para.
* Max. Travel speed can be 60 Meter / minute.
* Max. Quartz Cutting Speed : 20 Meter/ Minute.
* Industrial touch-screen computer.
Packing & Shipment
Three Layers：
* The machine all covers will be protected by the foam board
* The middle layer is wrapped with environmental protection material
* And the outermost layer is wrapped with PE stretch film

About The Package of The CNC Router：
* The machine control cabinet and other machine accessories are put on the machine bed.Then,the machine will be wrapped with PE stretch film in case of damage in transit.
* All CNC machines are packaged with the plywood case and the wooden case will be fix on the pallet, the shipping mark will be labeled on the surface of the wooden case.
Certification
About US
Jinan Lingdiao Machinery Equipment Co., Ltd.

Established in 2012, specializing in CNC machinery with rich experience! LDTech have a strong staff team, "LDTech" has gained success in woodworking CNC Router, advertising cnc router, stone cnc router, metal engraving machine, laser engraving& cutting machine,fiber laser marking machine,fiber metal laser cutting machine,plasma metal cutting machine industry equipment.
"LDTech Products are widely used in the fields of marble&stone, advertising, acrylic,plastic,furniture, jewelry pieces, gifts, packaging etc., materials of metal, wood, leather etc.
Lingdiao Company always adhere to the principle --- First class reputation, Top-class service and Excellent products.
Choose LD,Realize Mutual Success,Welcome to Contact.
After-sale Service
After Sales Service
1. Within 8 hours reponse
2. TT/LC/Western Union/Ali trade assurance/Visa payment
3. Best after-sale service
4. Months Guarantee
5. Free training Esay use
6. Long machine life
7. Maritime transport,air transport,land transport and the logistics transport
8. 7-12 delivery time
Customers & Exhibition
FAQ
1. I need a CNC router, can you give me some suggestions?
A: Sure, We will give suggestions of the most suitable machine. Before that, we need to know some information, such as effective processing area, materials, etc, to determine the main parameters.
2. Which kind of materials can be processed on this machine?
A: Wood, mdf, stone, acrylic, glass, plastic, foam, aluminium, Copper,and almost all kinds of non-steel materials.
3. Are you a factory or trading company?
A: We are the manufacturer and we have 10 years factory experience.As only the machine made by ourself, the quality can be trusted, and the most important thing is that we can do better after-sales service.We know how to fix the problem of every part easily, so welcome to visit to our factory.
4. How should I pay for my order?
A: You need to pay 30% as prepayment at first, then we will start to make production. When the machine is completed, we will send pictures or videos to you, and then you need to pay the balance. We will ship the machine to you after we receive your full payment.
5. How long is the delivery time?
For standard machines, it will be 7-10 days: For non-standard machine and customized machines according to clients specific requirements, it will be 15 to 30 days.
