Quick Details
-
Fork Length:
-
1150mm
-
Fork Width:
-
680mm
-
Overall Dimensions:
-
1765*800*2080mm
-
Weight (KG):
-
800 kg
-

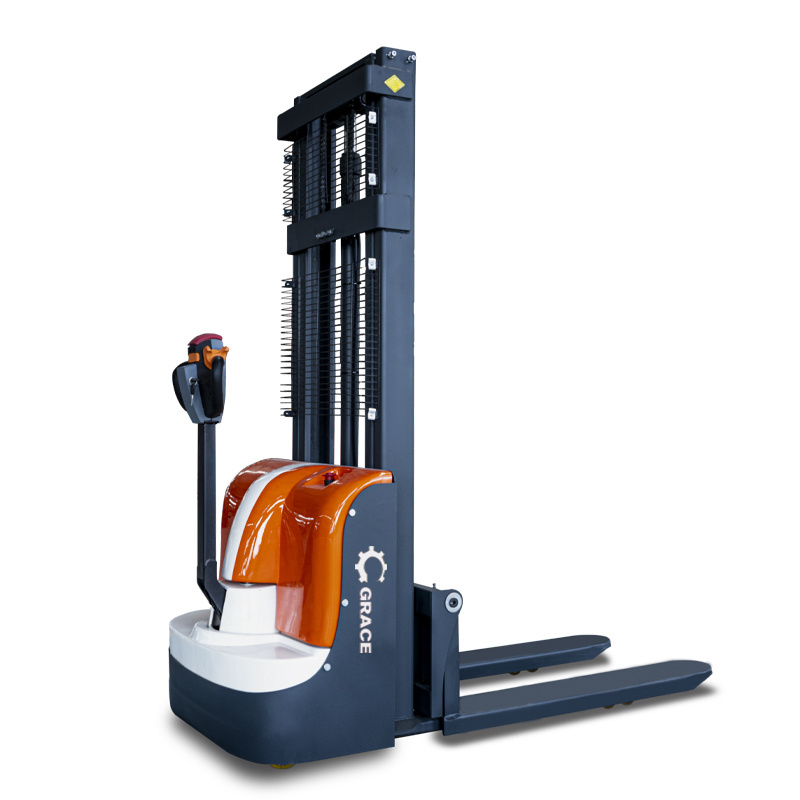

Product Name:
-
Full Electric Stacker
-
Operation Type:
-
Walking Driving
-
Standard Door Stand Height:
-
3000MM
-
Key words:
-
Forklift
-
Color:
-
Red
-
Loading Capacity:
-
1600Kg
-
Model:
-
ES15
-
Location:
-
Shangdong
-
Drive motor:
-
0.75KW
-
Lifting motor:
-
2.2KW
Quick Details
-
Min. Lifting Height:
-
2100mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Fork Length:
-
1150mm
-
Fork Width:
-
680mm
-
Overall Dimensions:
-
1765*800*2080mm
-
Weight (KG):
-
800 kg
-
Product Name:
-
Full Electric Stacker
-
Operation Type:
-
Walking Driving
-
Standard Door Stand Height:
-
3000MM
-
Key words:
-
Forklift
-
Color:
-
Red
-
Loading Capacity:
-
1600Kg
-
Model:
-
ES15
-
Location:
-
Shangdong
-
Drive motor:
-
0.75KW
-
Lifting motor:
-
2.2KW
Application
Full range of material handling systems
Grace Machinery has a full range of material handling systems, from diesel forklifts, LPG forklifts, and electric forklifts to pallet stackers and pallet jacks, reach trucks. Excellent performance and low prices. We have 20 years of production experience, and our products have been tested in the market, winning great praise from customers. We also have a complete after-sales service and quality assurance system to solve your worries. GRACE brand material handling products are indeed yours
Product Series
Product Details
High Performance
The combination of high-performance lithium batteries, high-performance AC motors, and imported controllers is used to achieve low energy consumption, high power, and low noise performance.
Brushless motor .
AC motor with no cabin brush, don't need maintenance, lower cost. Rear cover can be completely open, operator can see all the components, so the maintenance is very convenient.
Simple operation console
Charging, power display, and power switch are on one platform to minimize the difficulty for customers to use. The humanized design is impressive.
Humanized handle
Concentrate all operations on one handle. All operations can be completed without moving the palm of your hand. The handle housing feels comfortable, wear-resistant and impact resistant.
Wear-resistant silent wheel
Two types of wheels are available for selection. Nylon wheels are suitable for rough cement roads. Polyurethane wheels are suitable for epoxy floor paint pavement, quiet and wear-resistant. Long service life.
High strength bearing
High strength bearings can rotate 1 million times. Suitable for various working conditions. It allows you to work safely in any harsh working environment without any worries behind you.
Product specifications
|
ters
|
Unit
|
CDD10C-16
|
CDD10C-25
|
CDD10C-30
|
CDD15C-16
|
CDD15C-30
|
||||
|
Rated load capacity
|
kg
|
1000
|
1000
|
1000
|
1500
|
1500
|
||||
|
Load center
|
mm
|
500
|
500
|
500
|
500
|
500
|
||||
|
Max. lifting height
|
mm
|
1600
|
2500
|
3000
|
1600
|
3000
|
||||
|
Wheel
|
|
PU solid tire
|
|
|
|
|
||||
|
Fork size
|
mm
|
1150×160
|
|
|
|
|
||||
|
Fork over width
|
mm
|
560/680
|
|
|
|
|
||||
|
Overall Length
|
mm
|
1785
|
|
|
|
|
||||
|
Overall Width
|
mm
|
800
|
|
|
|
|
||||
|
Overall height when mast lowered
|
mm
|
2075
|
1825
|
2075
|
2075
|
1825
|
||||
|
Max. height when fork is lifiting
|
mm
|
2075
|
3037
|
3537
|
2075
|
3537
|
||||
|
Fork ground clearance
|
mm
|
85
|
|
|
|
|
||||
|
Turning radius
|
Wa(mm)
|
1380
|
|
|
|
|
||||
|
Distance from front wheels to the fork ends
|
mm
|
430
|
|
|
|
|
||||
|
Min stacking aisle 1000*1000 pallet
|
mm
|
2155
|
|
|
|
|
||||
|
Max travel speed No load/Full load
|
km/h
|
4/3.5
|
|
|
|
|
||||
|
Max grade ability No load/Full load
|
%
|
6/3
|
|
|
|
|
||||
|
Total weight
|
kg
|
506
|
546
|
566
|
596
|
666
|
||||
|
Driving wheel
|
mm
|
210*70
|
|
|
|
|
||||
|
Front wheel
|
mm
|
125*50
|
|
|
|
|
||||
|
Balance wheel
|
mm
|
125*50
|
|
|
|
|
||||
|
Battery capacity
|
V/Ah
|
24V80Ah
|
|
|
|
|
||||
|
Driving motor
|
kw
|
75
|
|
|
|
|
||||
|
Lifting motor
|
kw
|
2.2
|
|
|
|
|
||||
|
Walking Adjustable Type
|
|
Holzer type accelerator
|
|
|
|
|
||||
