Quick Details
-
Function:
-
Remote Control, FULL COLOR, Loop recording, Build-in WiFi, Build-in GPS, Build-in GSM, ADAS
-
Type:
-
SD Card Mobile DVR, sd card mdvr
-
Working Temperature Range:
-
-20 - 70 ℃
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GISION
-
Model Number:
-
X3-4GW
-
Video Compression:
-
H.265
-
Storage media:
-
sd card
-
Local playback:
-
Playback by file
Quick Details
-
Car Fitment:
-
Universal
-
Angle:
-
120°
-
Resolution:
-
1080P
-
Function:
-
Remote Control, FULL COLOR, Loop recording, Build-in WiFi, Build-in GPS, Build-in GSM, ADAS
-
Type:
-
SD Card Mobile DVR, sd card mdvr
-
Working Temperature Range:
-
-20 - 70 ℃
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GISION
-
Model Number:
-
X3-4GW
-
Video Compression:
-
H.265
-
Storage media:
-
sd card
-
Local playback:
-
Playback by file
Key features

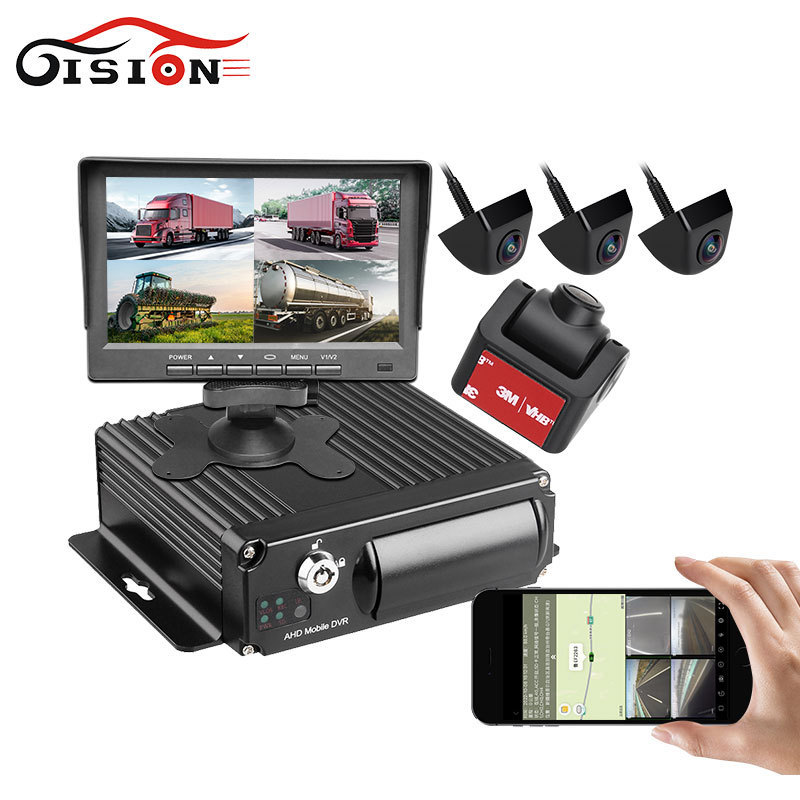

4G GPS WIFI SD Card Mdvr
1. Industrial-grade design with special vehicle port for reliable working on harsh environment
2. Wide voltage support over-load ,short circuit ,reverse connect protection
3. support 2 sd cards , max support 256GB.
4. 3/4G WIFI transmit; multiple grade image quality transmitting option
5. GPS/BD/GLONASS global positioning
6. Powerful software platform including remote preview, playback, broadcast, talk and more
7. Support multiple serial port extension
Specification
|
System
|
Operating system
|
Embedded Linux OS
|
|
|
Operating language
|
Chinese/English
|
|
|
Operating interface
|
GUI, support mouse
|
|
|
Password security
|
User password/Admin password
|
|
Audio
&
Video
|
Video standard
|
PAL/NTSC
|
|
|
Video compression
|
H.264
|
|
|
Image resolution
|
1080P/1080N/720P/960H/D1/CIF
|
|
|
Playback quality
|
1080P/1080N/720P/960H/D1/CIF
|
|
|
Compound mode
|
A variety of ways
|
|
|
Decoding ability
|
1ch 1080p real time
|
|
|
Recording quality
|
Class 1-6 optional
|
|
|
Image display
|
Single/QUAD display optional
|
|
|
Audio Compression
|
G.726
|
|
|
Audio recording
|
Audio & Video synchronized recording
|
|
Recording
&
Playback
|
Recording mode
|
Manual/Alarm
|
|
|
Video bit rate
|
Full frame 4096Mbps，6 classes image quality optional
|
|
|
Audio bit rate
|
8KB/s
|
|
|
Storage media
|
SD card
|
|
|
Video inquiry
|
Inquiry by channel/Recording type
|
|
|
Local playback
|
Playback by file
|
|
Firmware upgrading
|
Upgrading mode
|
Manual/Automatical/Remote/Emergency Recovery
|
|
|
Upgrading method
|
USB stick/Wireless network/SD card
|
|
Interface
|
AV input
|
4ch aviation interface
|
|
|
AV output
|
1ch VGA video output, 1ch aviation AV output
|
|
|
Alarm input
|
4 digital inputs (4 Positive/Negative trigger)
|
|
|
SD card
|
2 SDXC High speed card (up to 256GB)
|
|
|
USB interface
|
1 USB 2.0 (support U disk/mouse)
|
|
|
Ignition input
|
1 ACC signal
|
|
|
UART
|
1 LVTTL Level
|
|
|
LED Indication
|
PWR/RUN
|
|
|
Disk /SD card lock
|
1
|
|
|
Debug port
|
1
|
|
Function extention
|
GPS/BD
|
Support detecting antenna Plug in/Unplug/Short circuit
|
|
|
3G/4G
|
Supports CDMA/EVDO/GPRS/WCDMA/FDD LTE/TDD LTE
|
|
|
WIFI
|
802.11b/g/n, 2.4GHz
|
|
Others
|
Power input
|
8~36V DC
|
|
|
Power input
|
Standby 3mA
Maximum consumption 30W @12V 2.5A @24V 1.25A
|
|
|
Working temperature
|
-20 --- 70℃
|
|
|
Storage
|
1080P 1.5G/h/channel 1080N 1.2G/h/channel
720P 1G/h/channel 960H 750M/h/channel
|
|
|
|
|
|
|
Dimension
|
147mm*124mm*41mm
|
