Quick Details
-
Place of Origin:
-
China Guangdong
-
Brand Name:
-
sribo
-
Model Number:
-
5840-31ZY Double shaft
-
Torque:
-
7(NM)
-
Product Name:
-

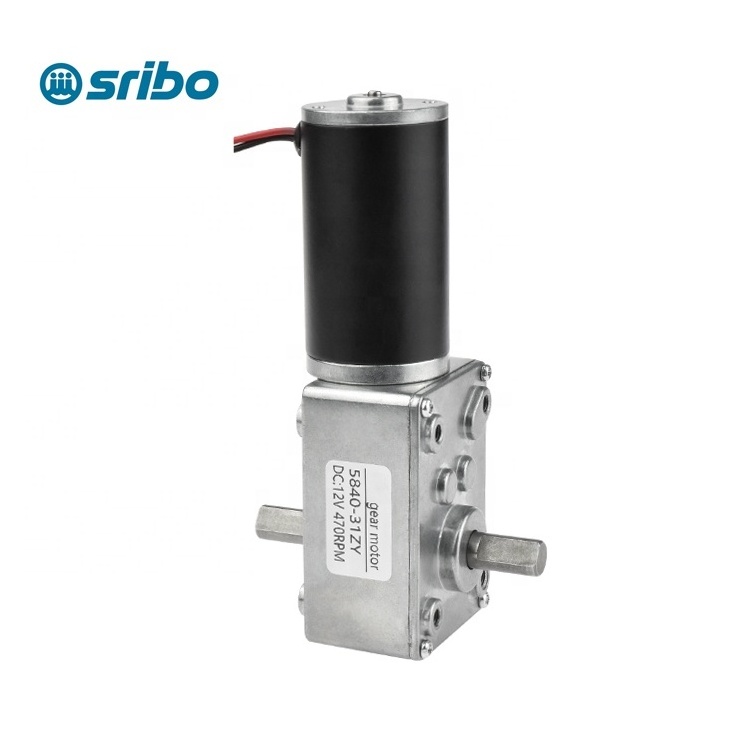

5840-31ZY Double shaft DC Worm Gear Motor
-
Motor type:
-
Brushed DC Motor
-
Reducer Size:
-
58mm*40mm*27mm
-
Reducer Shaft Length:
-
15mm(Double output shaft)
-
Reducer Shaft Diameter:
-
8mm
-
Reducer Shaft Type:
-
D-Shaft(Milling edge 1mm)
-
MAX Torque:
-
70Kg.cm
-
Weight:
-
355g
Quick Details
-
Speed(RPM):
-
5~470(rpm)
-
Continuous Current(A):
-
1(A)
-
Efficiency:
-
IE 1
-
Place of Origin:
-
China Guangdong
-
Brand Name:
-
sribo
-
Model Number:
-
5840-31ZY Double shaft
-
Torque:
-
7(NM)
-
Product Name:
-
5840-31ZY Double shaft DC Worm Gear Motor
-
Motor type:
-
Brushed DC Motor
-
Reducer Size:
-
58mm*40mm*27mm
-
Reducer Shaft Length:
-
15mm(Double output shaft)
-
Reducer Shaft Diameter:
-
8mm
-
Reducer Shaft Type:
-
D-Shaft(Milling edge 1mm)
-
MAX Torque:
-
70Kg.cm
-
Weight:
-
355g
High Quality Double Output Shaft Dc Worm Gear Motor For Automatic Drying Rack
|
Brand |
Sribo |
|
Model |
5840-31ZY double shaft DC Worm Gear Motor |
|
Rated power |
21 (W) |
|
Product Type |
Brushed DC Motor |
|
Rated voltage |
12-24 (V) |
|
Rated current |
1 (A) |
|
Rated speed |
5~470 (rpm) |
|
Rated torque |
7 (NM) |
|
Dimensions |
120mm*66mm |
|
Product certification |
CE |
|
Scope of application |
Automatic drying rack, window opener, curtain machine, billboard, intelligent equipment |
|
Efficiency |
80% |
|
Rated voltage range |
Below 36V DC |
Note:
Shaft, Speed, Voltage Can Be Customized.
Common applications:
1. Household applications: white goods, small appliances, fans, electric screens, automatic window opening, floor cleaning robots, vacuum cleaners, smart home systems.
2. Medical applications: medical pumps, sphygmomanometers, surgical tools, medical agitators, centrifuges.
3. Power tools: air pump, water pump, vacuum pump, oxygen generator, electric drill, electric screwdriver.
4. Commercial equipment: printers, copiers, shredders, projectors, scanners, cash registers, vending machines.
5. Personal care: hair dryer, electric shaver, beauty product, hair curler, steam hair straightener (water jet straight hair outlet).
6. Health field: massager, adult toy.
7. Security field: surveillance system, camera, safe.
8. Industrial applications: robotic arms, printing equipment, automation equipment.
9. Other applications: electronic door locks, smart switches, robots, toys, smart cars, boats, intelligent wear, electronics, DIY, etc.
Notice:
Hello, I am very happy to see our products. We are professional motor OEM/ODM manufacturers, and have nearly 11 years of production and R&D experience. We have our own factory and technical engineers. We are located in Shenzhen, China, If you are interested in our products, there are any motor customization needs, welcome to contact us , our professional services to answer your questions.
