Quick Details
-
Brand Name:
-
SHINEEAST
-
Model Number:
-
STT25
-
Place of Origin:
-
JINAN CHINA
-
Lubrication Style:
-
Oil-free
-
Certificate:
-
ISO9001:2008
-
Power:
-
Pneumatic
-
Standard or Nonstandard:
-
Standard
-
Theory:
-
Reciprocating Pump
-
Product name:
-
Pumps
-
Color:
-
Black
-
Packing:
-
Wooden Case
-
Pump Type:
-
GAS Booster Pump
Quick Details
-
Application:
-
Other, Pressure testing, Work holding/power clamping, Jacking/lifting, Valve actuator control, Hydraulic cylinder actuation, Press safety overload devices, Roller tensioning, Metering, Precision lubrication and spraying, Liquefied gas transfer
-
Pressure:
-
High Pressure
-
Warranty:
-
1year
-
Brand Name:
-
SHINEEAST
-
Model Number:
-
STT25
-
Place of Origin:
-
JINAN CHINA
-
Lubrication Style:
-
Oil-free
-
Certificate:
-
ISO9001:2008
-
Power:
-
Pneumatic
-
Standard or Nonstandard:
-
Standard
-
Theory:
-
Reciprocating Pump
-
Product name:
-
Pumps
-
Color:
-
Black
-
Packing:
-
Wooden Case
-
Pump Type:
-
GAS Booster Pump

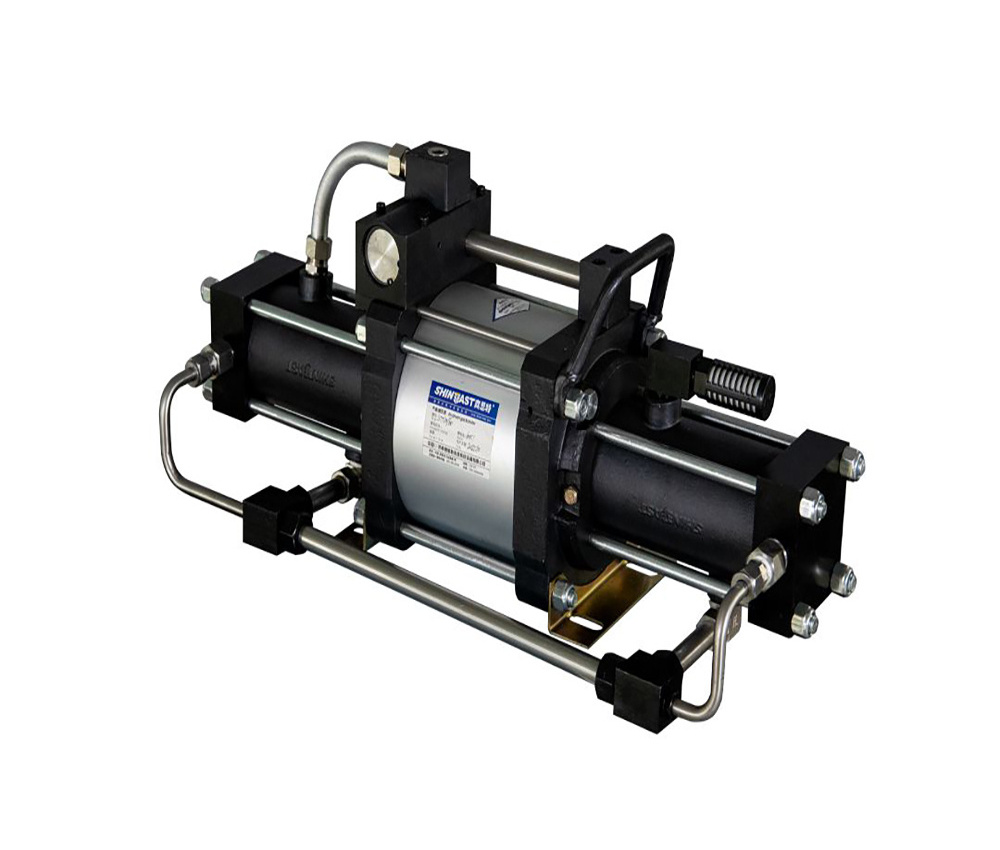

- Air Driven gas boosters involve STT Series are high pressure reciprocating pumps used for gases boosting,driven of compressed shop air.STT Series boosters are double stage, double acting with single air head driven type.They are capable of gas boosting from very low to super high pressure.Gas inlet pressure as low as 1bar (14.5psi.).
- STT series gas boosters are suitable for the oil free compression of air and Industrial gases like Nitrogen, Helium as well as flammable and risk gases like hydrogen,oxygen and natural gas.Air drive pressure from 1bar(14.5psi.)to 8bar(116psi.).Provide for operating pressures up to 80Mpa.
Key features
- Double action for effective operation.Double stage for high pressure available
- No electricity required. Safe operation, ex-proof
- More appropriate ratios for meeting higher flowrates and faster fill times
- No airline lubricator required
- Hydrocarbon free-seperation between air drive and gas booster sections
- Suitable for most gases
- Built-in cooling
- High quality seals, long life service available
- All components in contact with the gas are made of aluminium or resp. stainless steel
- Wide range of models. There are five models for your option
- Standard and custom systems available
- Reliable,easy operation and maintenance
Applications
- Mining,fire&safety
- Aircraft ground support
- Automotive air bag vessel filling
- Power generation
- Injection moulding
- Accumulator charging
- Supply for isolating gas systems
- Gas proof testing
- Hydrostatic and Burst Pressure testing for valves,pipes and tubing,pressure vessels and air craft components,etc.
- Safety valve adjusting
Technical parameters
|
Type |
Pressure ratio |
Min. gas Inlet pressure P A (bar) |
Min. gas outlet Pressure P A (bar) |
Max.gas oulet pressure P B (bar) |
Formula to calculate gas oulet pressure P B |
Connection: Gas Inlet / Gas outlet |
Max. flow at air drive pressure of 6 bar(L/min) |
|
STT25 |
25:1 |
1 |
10 |
200 |
25XP L +3.5XP A |
ZG1/4/ ZG1/4 |
136 (at P A of 8 ar ) |
|
STT40 |
40:1 |
1 |
10 |
320 |
40XP L + 6XP A |
ZG1/4/ ZG1/4 |
124 (at P A of 8 bar ) |
|
STT10/60 |
10:1/60:1 |
1 |
10 |
480 |
60XP L +6X P A |
ZG1/4/ ZG1/4 |
84 (at P A of 8 bar ) |
|
STT25/60 |
25:1/60:1 |
10 |
25 |
480 |
60XP L +2.5XP A |
ZG1/4/ ZG1/4 |
72 (at P A of 8 bar ) |
|
STT100 |
100:1 |
1 |
10 |
800 |
100XP L +10XP A |
ZG1/4/ ZG1/4 |
63 (at P A of 8 bar ) |
Note: P L : air drive pressure P A : gas inlet pressure P B : gas outlet pressure
NET WEIGHT:20.2KGS
Please consult us for printable dimensional drawings and performance charts for STT Series boosters sized to your specific application parameters.
