Quick Details
-
Product name:
-
Temperature And Humidity Sensor
-
Alarm:
-
Sound And Light Alarm
-
Protocol:
-
TCP/ UDP/ SNMP
-
Power supply:
-
POE and DC12-24V
-
Set:
-
Webserver And Key
-
Certificate:
-
ISO9001/CE/ROHS
-
Display:
-
Color Screen
-
Type:
-
Ethernet Interface
-
Colour:
-
White And Black
-
Language:
-
Chinese And English
-
Certification:
-
CE,ROHS
Quick Details
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
YC
-
Model Number:
-
APEM-5930
-
Product name:
-
Temperature And Humidity Sensor
-
Alarm:
-
Sound And Light Alarm
-
Protocol:
-
TCP/ UDP/ SNMP
-
Power supply:
-
POE and DC12-24V
-
Set:
-
Webserver And Key
-
Certificate:
-
ISO9001/CE/ROHS
-
Display:
-
Color Screen
-
Type:
-
Ethernet Interface
-
Colour:
-
White And Black
-
Language:
-
Chinese And English
-
Certification:
-
CE,ROHS
Webserver Temperature And Humidity Sensor RJ45 Interface POE Power TCP/UDP/SNMP Protocol
P roduct description

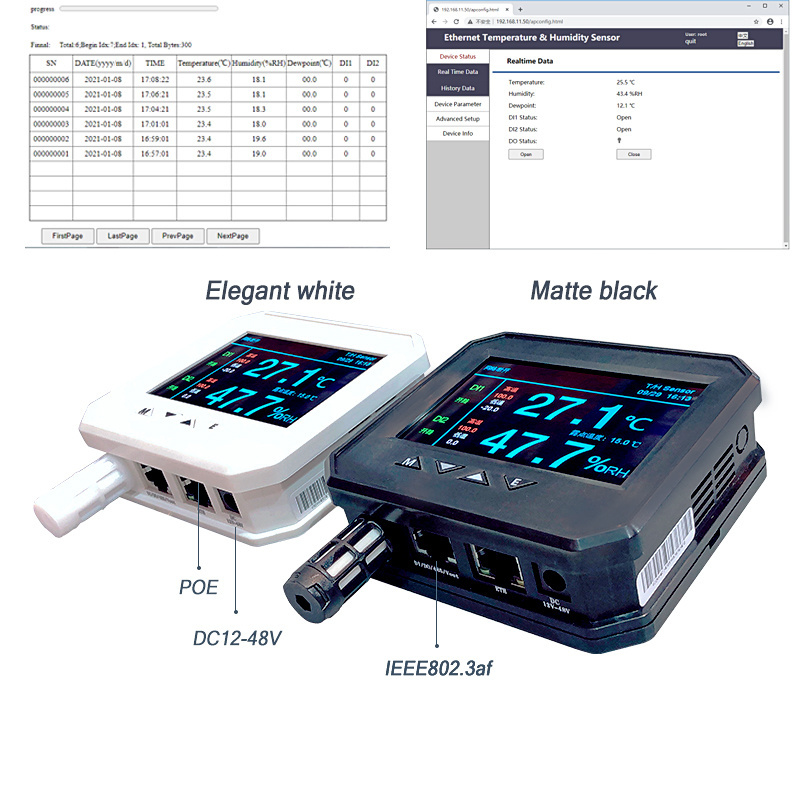

APEM5930 network temperature and humidity sensor, in line with the requirements of the development of the Internet, monitors the real-time environmental temperature and humidity through the Ethernet interface. This product can provide OEM service for the partners,
Its features include: color screen, Webserver setup, 2 way switching value, 1way 485 serial port, 1way relay output, POE power supply, etc, supports TCP/UDP/SNMP/ARP, DHCP/MQTT and other communication protocols, open communication protocol,makes users’s secondary development and application more convenient, it can be seamless with a variety of integrated management platform, The sensor is ideal for modern network environment sensing.
F eatures
1. Adopts high precision imported temperature and humidity sensor from Switzerland high measuring accuracy and maintenance free
2. 100MHz Ethernet, AUTO MDI/ mdi-x
3. 3.5-inch TFT color screen
4. Overall dimensions: 100 * 92 * 3 ( mm
5. Supports data logging.
6. Alarm hysteresis can be set
7 .Webserver
Product parameters
|
T emperature |
M easurement accuracy: Measuring range: C alibration: |
±0.2C -40-125C Key or Webserver |
|
H umidity |
measurement accuracy:
Measuring range: calibration: |
±2% RH ( Typical value, can be customized 1.5%± 1.5% RH ) 0%~100% RH (typical) Key / Webserver |
|
A larm |
Alarm method: Alarm setting upper and lower limits: |
Sound and light alarm
Key / Webserver |
|
Communication parameter |
Network Interface: Device MAC address: Transmission distance: Serial port /switching value/ relay Interface: Parameter configuration Set mode : Protocol: |
RJ45, 10M/100M adaptive Factory default (unique address is not adjustable) Unlimited
RJ45 Webserver / Key TCP, UDP, SNMP, ARP, DHCP and other network protocols |
|
P ower supply |
Power supply: Dual power supply: operating hours: Working current: |
POE / D c12v 300ma Support 7*24*365 hours 300mA |
|
Sensor probe |
Types of: Built in / external: |
Temperature and humidity External |
|
E nvironment |
W orking environment:
Storage environment: |
Temperature -20~+70°C, humidity 0~99%RH, non-condensing Temperature -20~+70°C, humidity 0~99%RH, non-condensing |
|
Protection level |
Enclosure rating: Fire-proof level: Anti-electromagnetic interference: |
IP55 V-0
Optical isolation |
|
M aterial |
S hell : panel: Screen display: weight: Installation Method: |
ABS (white) PCB single side Color screen About 300 grams Wall surface: screw fixed metal surface: magnet adsorption |
|
S ize |
Shell size: LCD size: |
100*92*30 mm 73.44*48.96 mm |
Webserver
