Quick Details
-
Model Number:
-
HHC15A
-
Max. Current:
-
16(10)A
-
Product name:
-
WEEKLY TIME SWITCH
-
Operating voltage:
-
AC 220V -240V
-
Contact capacity:
-
16(10)A, 250VAC
-
Frequency:
-
50-60Hz
-
Installation type:
-
DIN-rail
-
Time accuracy at 25 °C:
-
≤ ± 2 s/day(Quartz)
-
Type of protection:
-
IP 20
-
Type of connection:
-
Screw terminals
-
Power reserve:
-
3 years
-
Contact form:
-
1 Z
Quick Details
-
Max. Voltage:
-
240 VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CKMINE
-
Model Number:
-
HHC15A
-
Max. Current:
-
16(10)A
-
Product name:
-
WEEKLY TIME SWITCH
-
Operating voltage:
-
AC 220V -240V
-
Contact capacity:
-
16(10)A, 250VAC
-
Frequency:
-
50-60Hz
-
Installation type:
-
DIN-rail
-
Time accuracy at 25 °C:
-
≤ ± 2 s/day(Quartz)
-
Type of protection:
-
IP 20
-
Type of connection:
-
Screw terminals
-
Power reserve:
-
3 years
-
Contact form:
-
1 Z

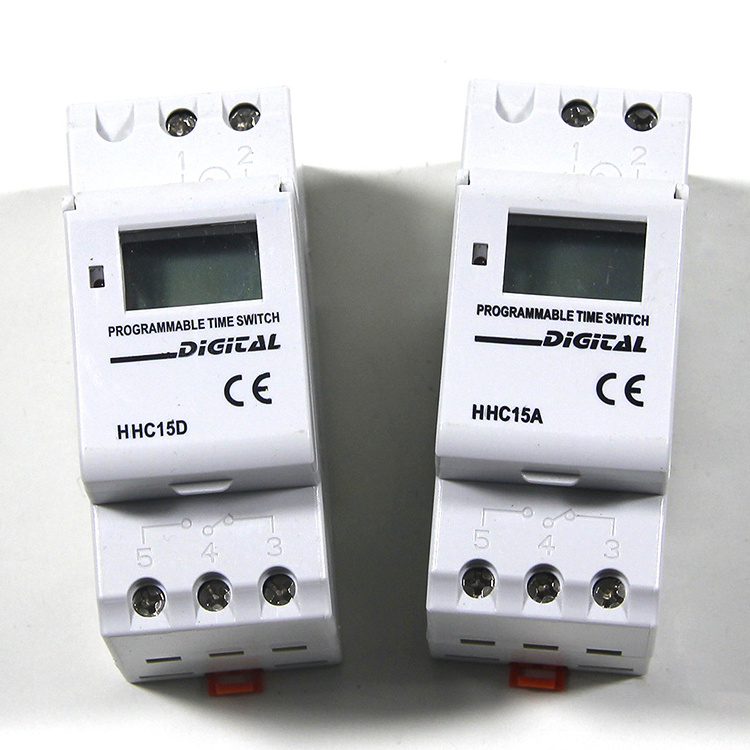

CKMINE HHC15A AC 220V -240V Din Rail LED Digital Weekly Programmable Timer Switch
Banner
|
Type
|
HHC15A
|
HHC15D
|
|
|
Item
|
Weekly programmable timer
|
Astronomical timer
|
|
|
Dimension
|
86*36*66mm
|
|
|
|
Rated voltage
|
AC 220V -240V
|
AC 85V -265V
|
|
|
Operating voltage
|
230-240 VAC
|
|
|
|
Contact capacity
|
16(10)A, 250VAC
|
|
|
|
Frequency
|
50-60Hz
|
|
|
|
Installation type
|
DIN-rail
|
|
|
|
Type of connection
|
Screw terminals
|
|
|
|
Drive
|
Quartz-controlled stepper motor
|
|
|
|
Full timing range
|
Per week or per day cycle
|
Per week or per day cycle, auto change the time as to latitude
|
|
|
Power reserve
|
3
years
|
|
|
|
Contact form
|
1Z
|
|
|
|
Display
|
LED
|
|
|
|
Programmable
|
20 ON/OFF per day/week
|
20 ON/OFF per day/week
|
|
|
Minimum setting Unit
|
15 min
|
|
|
|
Number of switching
|
96
|
|
|
|
Max power consumption
|
5VA
|
|
|
|
Temperature
|
‒10 °C +50°C
|
|
|
Application
