Quick Details
-
Place of Origin:
-
Hunan
-
Brand Name:
-
Huayuan LCD
-
LCD display size:
-
10.1 inch
-
Module structure:
-
HD MI display+USB touch PCB
-
Display resolution:
-
1024 RGBX600 (optional 1280x800)
-
Module size(WXHXT):
-
23.5x143x7.75mm
-
Active Area:
-
222.72x125.28mm
-
Color pixel arrangement:
-
RGB Stripe
-
Dispaly mode:
-
Transmissive type, normally white mode
-
Viewing direction:
-
6 O'clck
-
Interface Type:
-
LCD: HD MI CTP:: USB
-
Brightness:
-
250cd/m2
Quick Details
-
Type:
-
TFT
-
Display Size:
-
16:9
-
Supplier Type:
-
Factory supply
-
Place of Origin:
-
Hunan
-
Brand Name:
-
Huayuan LCD
-
LCD display size:
-
10.1 inch
-
Module structure:
-
HD MI display+USB touch PCB
-
Display resolution:
-
1024 RGBX600 (optional 1280x800)
-
Module size(WXHXT):
-
23.5x143x7.75mm
-
Active Area:
-
222.72x125.28mm
-
Color pixel arrangement:
-
RGB Stripe
-
Dispaly mode:
-
Transmissive type, normally white mode
-
Viewing direction:
-
6 O'clck
-
Interface Type:
-
LCD: HD MI CTP:: USB
-
Brightness:
-
250cd/m2

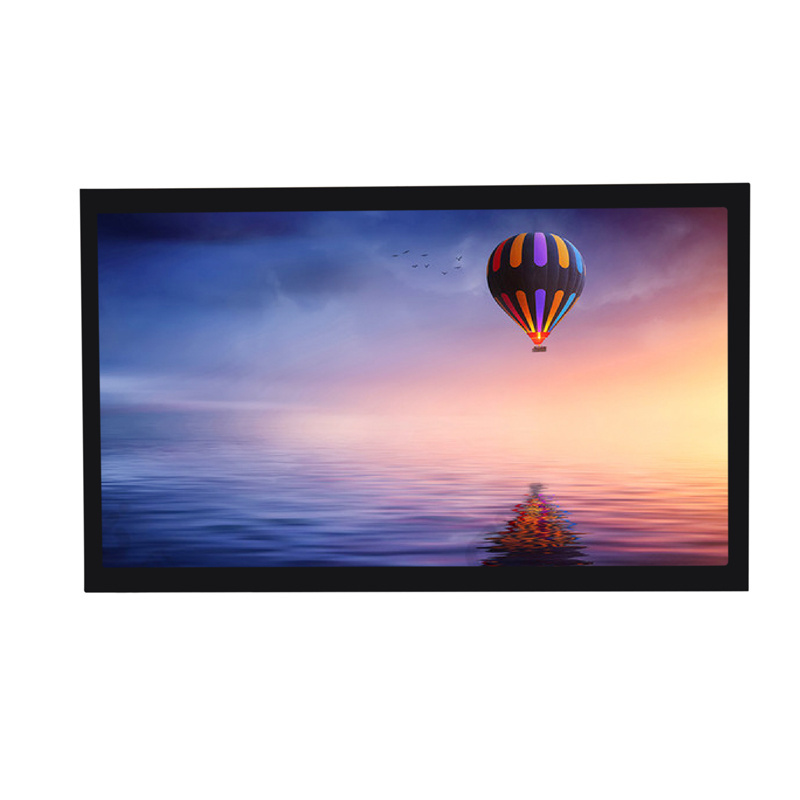

Raspberry Pi 1024X600 10.1 Inch Display Module Capacitive Panel 10'' LCD Touch Screen 10 Inch LCD Monitor
| Product model | HY12460c101L-HD MI V01 |
| LCD display size | 10.1 inch |
| Module structure | HDMI display+ USB touch PCB |
| Display resolution | 1024RGBX 600 |
| Module Dimensions(WXHXT) | 234.00X143X7.75MM |
| Active Area (WXH) | 222.72x125.28mm |
| Pixel pitch (WXH) | 0.1506x 0.1432mm |
| Color Pixel arrangement | RGB Stripe |
| Display mode | Transmissive type, normally white mode |
| Vewing direction | 6:00 |
| Interface type |
LCD: HD MI interface CTP: USB interface |
| Number of colors | 16.7M |
| CTP Structure type | Cover Glass i' to PET(G+P) |
| CTP Surface Hardness | more than 6H |
| Brightness | 250 cd/m2 |
| Contrast Ratio | 300:1 |
Autoelectronics, 3D&Shutter, Meters&Instrument, Telecommunication,
Domestic electrical appliance(Household appliance), Fuel dispensers, Office equipment,
Medical &health equipment, Business related facility, Education electronics.
- Character lcd (8x1, 8x2, 16x1, 16x2, 16x4, 20x2, 20x4, etc. )
-
Graphic lcd (122x32, 128x64, 192x64, 240x128, 320x240, etc. ) -
TFT LCD (1.44", 1.77", 2", 2.2", 2.4", 2.8", 3", 3.2", 3.5", 4", 4.3", 5", 5.5", 5.7", 6.2", 7", 8", 9", 3, 7", 10.1", 10.2", 10.4", 17" and so on. -
TN/STN/HTN/VA segment customized lcd -
LED backlight panel
All kinds of LCD Module can customized.
