Quick Details
-
Voltage:
-
380v/3phase/50hz
-
Disc Dia.:
-
Auto Spray Paint Booth
-
No Load Speed:
-
0.25m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
OKEAH
-
Model Number:
-
et2500
-
Warranty:
-
12month
-
Product name:
-

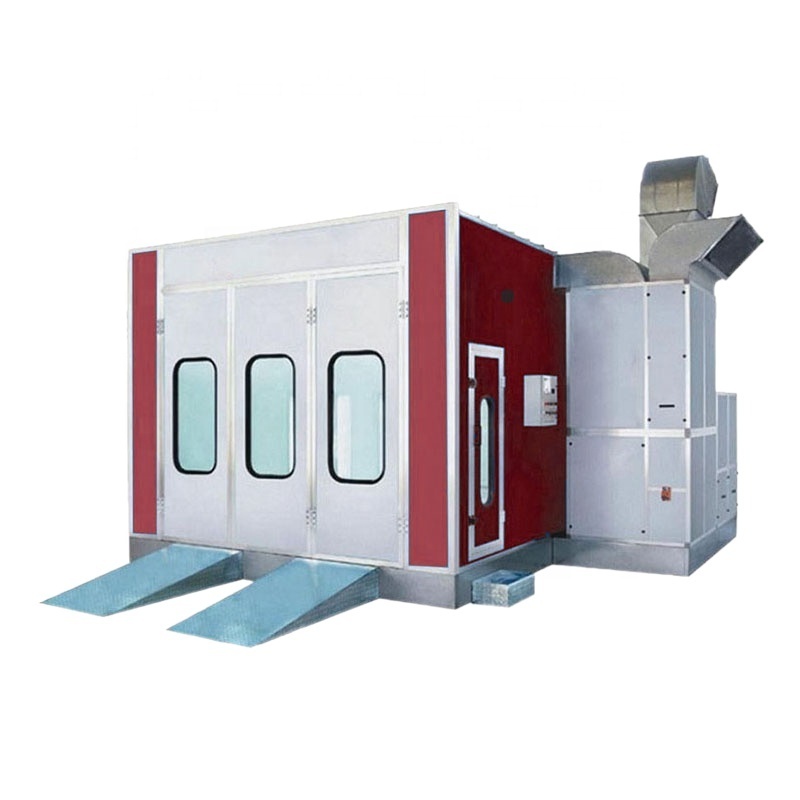

Best Choice Diesel Burner System Car Painting Spray Booth G20
-
Panels:
-
50mm thick antiflaming EPS panel
-
Main door:
-
3000*2500mm
-
Sode door:
-
700*1800mm
-
Intake Fan:
-
2*3kw
-
Exhaust Fan:
-
1*5.5kw
-
Heating System:
-
Diesel Heating
-
Shipping way:
-
By sea
-
Color:
-
Customized
-
Application:
-
For car painting
Quick Details
-
Power:
-
12kw
-
External Size:
-
6950*4000*3350
-
Internal Size:
-
6850*3900*2650
-
Voltage:
-
380v/3phase/50hz
-
Disc Dia.:
-
Auto Spray Paint Booth
-
No Load Speed:
-
0.25m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
OKEAH
-
Model Number:
-
et2500
-
Warranty:
-
12month
-
Product name:
-
Best Choice Diesel Burner System Car Painting Spray Booth G20
-
Panels:
-
50mm thick antiflaming EPS panel
-
Main door:
-
3000*2500mm
-
Sode door:
-
700*1800mm
-
Intake Fan:
-
2*3kw
-
Exhaust Fan:
-
1*5.5kw
-
Heating System:
-
Diesel Heating
-
Shipping way:
-
By sea
-
Color:
-
Customized
-
Application:
-
For car painting
Product Draft
Specification
|
Room outside size:
|
6950*4000*3300mm
|
|
|
|
Room inside size:
|
6850*3900*2650mm
|
|
|
|
Panels:
|
Wall panels:50mm thick antiflaming EPS panel,with 0.4mm thick steel skin, With tongue & groove style, anti-flame and
heat-insulation; Roof panel: galvanized steel panels. |
|
|
|
Main door:
|
3-fold main doors,total 3000*2500mm(W*H),with safety glass,
with handles and high-pressure safety lock, rubber strips. |
|
|
|
Side door:
|
1 unit 700*1800mm(W*H), with safety glass windows,
aluminum alloy frame, with handle,safety lock and rubber strips. |
|
|
|
Basement:
|
Total height is 300mm with grills,embossed plates, and bottom supports;
Grills: 2 rows, material: 30*4mm thick; Embossed plate:2mm thick plate with supports, 3 rows on floor; Ramp:Two sets of hard strength ramps, size:1600*650*260mm; |
|
|
|
Air fans:
|
Intake Fan:
|
2*3kw;double-inlet centrifugal fans; 20000m³/h.
|
|
|
|
Exhaust Fan:
|
1*5.5kw; double-inlet centrifugal fan;18000m³/h.
|
|
|
Cabinets:
|
Bottom cabinet for the fans, size:2700*1100*1290mm;
Upper cabinet for heating exchanger, size:1700*1100*1290mm; |
|
|
|
Electric damper:
|
TF16-230, 16N.m;
Install on the cabinet to control the inner air door. |
|
|
|
Air ducts:
|
Exhaust air ducts:
Trapezoidal duct: 1pc; Elbow 90°duct:1pc; Straight ducts:2pcs, size:700*700*900mm; Inlet air duct: upper bend air duct*1pc; All the material thickness is 0.8mm. |
|
|
|
Filtering system: |
Pre-filter, filtering rate>83%,can capture granules larger than 10μm;
Ceiling filter,filtering rate>97%, can capture granules bigger than 4μm; Floor filter, filtering rate>70%. |
|
|
|
Heating System: |
Diesel burner heating, Italy Riello G10 oil burner.
Heating productivity: 100000 Kcal/h, 0.8mm thick steel heating exchanger, with anti-explosion hole for protection, max working temperature is 80ºC. |
|
|
|
Lighting system:
|
Ceiling lights: 8units*3pcs=24pcs, powder-coated light box.
Wall lights:6units*3pcs=18pcs,vertically set,powder-coated light box. |
|
|
|
Controlling system:
|
Intelligent control:power switch,spray/baking switch,light switch,emergency stop, electric damper button.
|
|
|
|
Power total:
|
About 12kw, voltage: 380V/50HZ/3P
|
|
|
Product Description
Details Images
Intake and Exhaust Fan
Cabinets
Ceiling Lights Box
RIELLO G10 Burner
Electric Damper
Controller
Side Doors
Floor Grills
Base Bottom Support Legs
Air Ducts
Side Lignts
Accessories
