- Product Details
- {{item.text}}
Quick Details
-
Charging Port:
-
NO USB
-
Connection:
-
Type 2/GBT
-
Voltage:
-
220-430 VAC
-
Warranty:
-
12 Months
-
Place of Origin:
-
China
-
Brand Name:
-
GDE
-
Model Number:
-
GDE-M2MB11KW03
-
Product name:
-
Portable EV Charger
-
Color:
-
Black with Orange / Green
-
Keyword:
-
For Electric Vehicle Charging
-
Standard:
-
IEC 61851
-
Package:
-
Netruel Cartons
-
Mechanical Life:
-
no-load plug in / plug out > 10000 times
-
Insulation Resistance::
-
>1000MΩ (DC500V)
-
Coupled Insertion Force::
-
>45N<80N
-
IP Grade:
-
IP 65
-
Packing:
-
Protective Neutral
Quick Details
-
Function:
-
Colorful lights, screen display, Power Off Memory, Signal Stabilization, Voltage Monitoring, Current Adjustable, Timer
-
Car Fitment:
-
Mercedes-Benz, VOLVO, VW (FAW), Nissan, tata, VW, HONDA, Tesla, Renault, Ford, Fiat, Hyundai, POLESTAR, bmw, Chevrolet, Audi, Jaguar, PEUGEOT, Skoda, PORSCHE
-
Type:
-
Portable EV Charger
-
Charging Port:
-
NO USB
-
Connection:
-
Type 2/GBT
-
Voltage:
-
220-430 VAC
-
Warranty:
-
12 Months
-
Place of Origin:
-
China
-
Brand Name:
-
GDE
-
Model Number:
-
GDE-M2MB11KW03
-
Product name:
-
Portable EV Charger
-
Color:
-
Black with Orange / Green
-
Keyword:
-
For Electric Vehicle Charging
-
Standard:
-
IEC 61851
-
Package:
-
Netruel Cartons
-
Mechanical Life:
-
no-load plug in / plug out > 10000 times
-
Insulation Resistance::
-
>1000MΩ (DC500V)
-
Coupled Insertion Force::
-
>45N<80N
-
IP Grade:
-
IP 65
-
Packing:
-
Protective Neutral

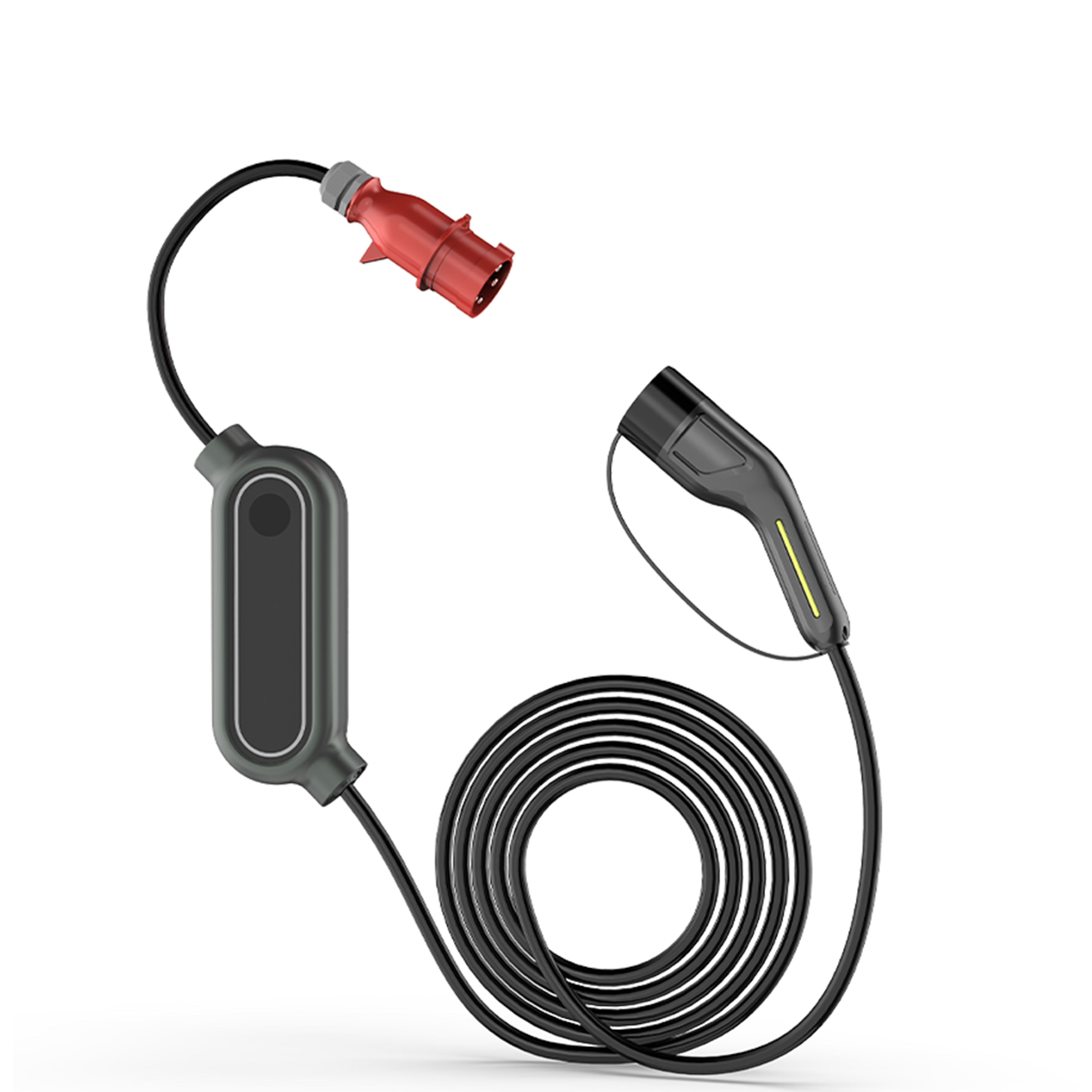

Level 2 Type B Portable AC EV Car Charger Station Type 2 3 Phase 11kw 22kw 16A 32A
Product Description
|
|
|
|
|
|||
|
Input voltage/Output voltage
|
220-430V AC Single & Triphase Compatible
|
Current
|
8A-16A For 11KW
10-32A For 22KW
|
|||
|
Max Output Power
|
Max 11KW /22KW
|
Optional Function
|
○ Current Adjustable
○ Screen Dispaly
○ Timer
○ Runing Led Light
|
|||
|
Standard
|
IEC 62752, Type B leakage
|
Delay Charging
|
Yes
|
|||
|
Protection
|
|
|
|
|||
|
Over voltage protection
|
yes
|
Earth leakage protection
|
yes
|
|||
|
Under voltage protection
|
yes
|
I
ngress Protection
|
yes ,IP65
|
|||
|
Real time Temperature Protection
|
yes
|
Lightning protection
|
yes
|
|||
|
Specification
|
|
|
|
|||
|
Operating temperature
|
:-30℃~+50℃
|
Case Material :
|
Thermoplastic, UL94 V-0
|
|||
|
Contact Pins
|
Copper Alloy,Silver Plating
|
Withstand Voltage
|
2000V
|
|||
|
No-load plug in / pull out
|
＞10000 times
|
Coupled insertion force
|
＞45N＜80N
|
|||
|
Cable Type
|
Type 2 / GBT
|
Box Material
|
ABS
|
|||
|
Certificate
|
TUV /CE
|
|
|
|||
Installation Instructions
Step 1
Connect The Power
Plug the Red Cee inlet to connect the electricity.
Step 2
Set Charging Current
Click the touching screen to choose charging current .
Step 3
Set The Timer
Click the touching screen to start the timer. 1h/2h/3h/4h/5h/.....
Company Introduction
GoodEv Tech's production base ,a 10 years experienced factory ensures big production capacity with high quality products by strict controls on the manufacture process and quality inspection.
Our professional and experienced R&D team combining the up-to-date technology into every product design, provides strong technical upport for clients customized needs; Our reliable quality products and excellent after sale services
help gain customers from all over the world.
Our Service
Packing Service
Generally, we pack our goods in brown strong cartons. If you have legally registered patent we can pack the goods in your branded boxes after getting your authorization letters.
Terms of delivery
FOB, CFR, CIF, DDU,EXW,DAP,DDP
Delivery time
Generally, it will take 5 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Samples Policy
Yes, we can produce by your samples or technical drawings.
if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Customer Service
We can provide customers with professional product advice and purchase options.
All emails will be responded within 24 hours during working days.
We have online customer service in English, French, German and Spanish. You can communicate with ease, or contact us through email anytime. All customers will get one-on-one service.
Customized Service
We provide flexible customized services with our abundant experiences in kinds of OEM projects.
OEM includes color, length, logo, packaging, etc. MOQ is depend on different customized requests.
After Sale Service
The warranty of all our products is one year. The specific after-sale plan will be free for replacement or charging a certain
maintenance cost according to the specific situations.
.However, according to the feedbacks from markets, we seldom have after-sale problems because strict product inspections are carried out before leaving the factory. And all of our products are certificated by top testing institutions such as CE TUV . Providing safe and guaranteed products is always one of our greatest strengths.
Generally, we pack our goods in brown strong cartons. If you have legally registered patent we can pack the goods in your branded boxes after getting your authorization letters.
Terms of delivery
FOB, CFR, CIF, DDU,EXW,DAP,DDP
Delivery time
Generally, it will take 5 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Samples Policy
Yes, we can produce by your samples or technical drawings.
if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Customer Service
We can provide customers with professional product advice and purchase options.
All emails will be responded within 24 hours during working days.
We have online customer service in English, French, German and Spanish. You can communicate with ease, or contact us through email anytime. All customers will get one-on-one service.
Customized Service
We provide flexible customized services with our abundant experiences in kinds of OEM projects.
OEM includes color, length, logo, packaging, etc. MOQ is depend on different customized requests.
After Sale Service
The warranty of all our products is one year. The specific after-sale plan will be free for replacement or charging a certain
maintenance cost according to the specific situations.
.However, according to the feedbacks from markets, we seldom have after-sale problems because strict product inspections are carried out before leaving the factory. And all of our products are certificated by top testing institutions such as CE TUV . Providing safe and guaranteed products is always one of our greatest strengths.
Certifications
EACH OF OUR PRODUCT HAVE TO BE EXTREMELY STRICT INSPECTION BEFORE SHIPMENT
