Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HABOO
-
Model Number:
-
HBP22-A11S
-
installation size:
-
22mm
-
contact type:
-
1NO+1NC
-
function:
-
momentary or maintained
-
material:
-
stainless steel or copper plated Ni
-
top head:
-
flat head
-
termianl:
-
pcb type
-
Certification:
-
ce
Quick Details
-
Protection Level:
-
IP67
-
Max. Current:
-
3A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HABOO
-
Model Number:
-
HBP22-A11S
-
installation size:
-
22mm
-
contact type:
-
1NO+1NC
-
function:
-
momentary or maintained
-
material:
-
stainless steel or copper plated Ni
-
top head:
-
flat head
-
termianl:
-
pcb type
-
Certification:
-
ce
Our Advantages
1.
10 years old company, focus on button switch production, factory strength
2.
Sufficient inventory and fast delivery
3.
Product certificate complete, excellent quality
Products Description
|

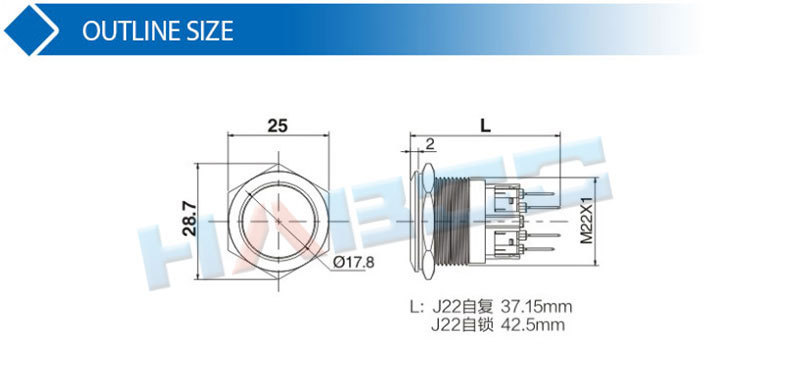

installation diemeter
|
22mm
|
|
operation
|
momentary/latching
|
|
contact type
|
1NO+1NC/2NO+2NC
|
|

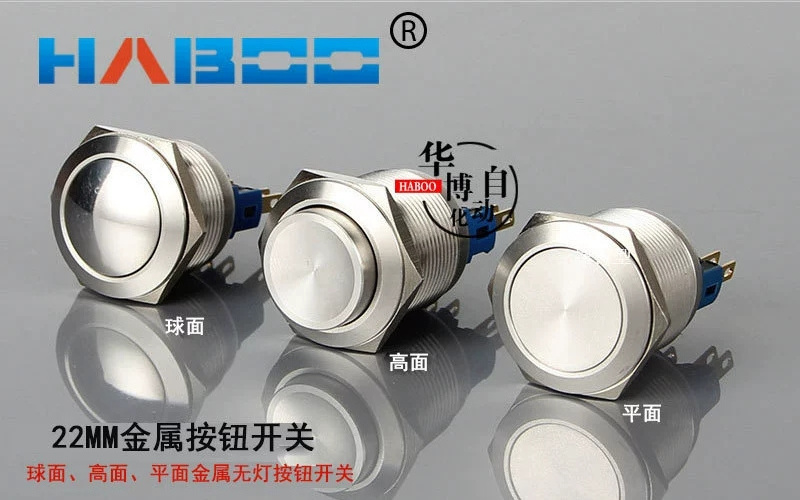

lampshare shape
|
flat head,high head,ball head
|
|
install type
|
PCB type
|
|
crust material
|
316 stainless steel,brass,aluminum oxide
|
|
protection class
|
IP67
|
|
max voltage
|
250VAC/DC
|
|
max current
|
2A
|
|
contact materical
|
sliver with glodplating
|
Details Images
