Quick Details
-
Application:
-
Construction
-
Rated Lifting Moment:
-
1058 kN.M
-
Span:
-
6m
-
Place of Origin:
-
Hunan, China
-
Warranty:
-
1 Year
-
Max. rated lifting capacity:
-
25 TON
-
Max. load moment of basic boom:
-
1058kN.M
-
Max. lifting height of main boom:
-
40M
-
Slewing speed:
-
0 -2.7r/min
-
Applicable Industries:
-
Machinery Repair Shops, Manufacturing Plant, Printing Shops, Construction works , Energy & Mining, Advertising Company
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Italy, Pakistan, Mexico, Spain, Australia, Morocco, Kenya, Argentina, South Korea, Bangladesh, Kyrgyzstan, Tajikistan
-
Certification:
-
ISO, CE
Quick Details
-
Rated Loading Capacity:
-
25 ton
-
Max. Lifting Height:
-
40m
-
Engine Brand:
-
TOP BRAND
-
Application:
-
Construction
-
Rated Lifting Moment:
-
1058 kN.M
-
Span:
-
6m
-
Place of Origin:
-
Hunan, China
-
Warranty:
-
1 Year
-
Max. rated lifting capacity:
-
25 TON
-
Max. load moment of basic boom:
-
1058kN.M
-
Max. lifting height of main boom:
-
40M
-
Slewing speed:
-
0 -2.7r/min
-
Applicable Industries:
-
Machinery Repair Shops, Manufacturing Plant, Printing Shops, Construction works , Energy & Mining, Advertising Company
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Italy, Pakistan, Mexico, Spain, Australia, Morocco, Kenya, Argentina, South Korea, Bangladesh, Kyrgyzstan, Tajikistan
-
Certification:
-
ISO, CE
Related Products

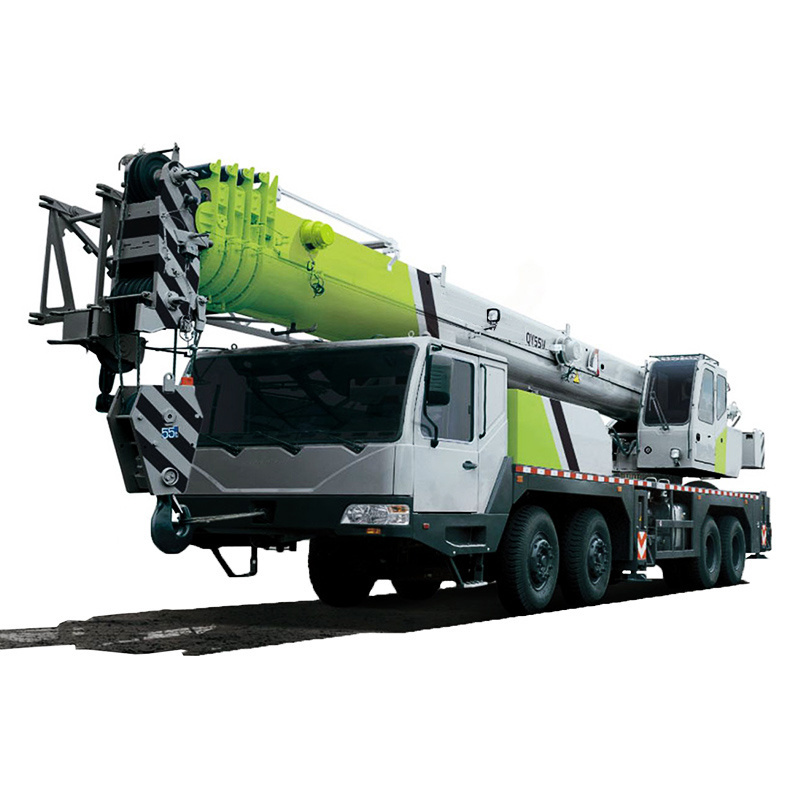

Official Hydraulic Hoising Machine 25 ton Hydraulic Truck Crane QY25V552
Contact zoe for more information
TEL/WhatsApp: +86 18711708860
Wechat: 18711708860
Product Description
| Truck crane parameters | |
| Device model | 25 tons (QY25V552) |
| Maximum lifting moment of basic boom | 1058kn/m |
| Maximum lifting height of jib | 48.5m |
| Boom boom time | 40s |
| Boom extension time | 80s |
| Main boom elevation | -2-80 |
| Maximum grade | 37% |
| Minimum ground clearance | 220mm |
| Dimensions (L×W×H) | 12900*2500*3465 |
| Swing speed | 0-2.2r/min |
| The maximum lifting height of the longest main boom | 40.5m |
| Outrigger span (vertical × horizontal) | 5.36*6.1 |
| Main boom arm length (fully retracted ~ fully extended) | 10.6-40m |
| Rotation range | 3385mm |
| Maximum speed of single rope of main winch | 120m/min |
| Maximum travel speed | 78km/h |
| Minimum turning radius | 22m |
| Jib arm length | 8m |
| Self-weight in driving state | 37t |
| Lifting height of main boom | 40.5m |
| Whole vehicle curb quality | 22t |
| Maximum rated total lifting capacity | 25000kg |
| Maximum speed of single rope (secondary winch) | 100m/min |
| Jib installation angle | 0.30 |
