Quick Details
-
Product name:
-
Hi-Res Bluetooth Transceiver Receiver with LDAC
-
Bluetooth chip:
-
BT V5.0
-
Audio codic:
-
SBC/AAC/APTX/APTX-LL/APTX-HD/LDAC
-
Interface:
-
3.5mm Aux & OPTICAL
-
Transmission distance:
-
Up to 164ft (50m)
-
Antenna:
-
dual external antennas
-
Current:
-
<150mA
-
Input Voltage:
-
4.8V~5.25V
-
Rate Power:
-
<750mW
-
Certifications:
-
CE FCC ROHS
Quick Details
-
Brand Name:
-
1Mii/OEM/ODM
-
Model Number:
-
B03Pro+
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Hi-Res Bluetooth Transceiver Receiver with LDAC
-
Bluetooth chip:
-
BT V5.0
-
Audio codic:
-
SBC/AAC/APTX/APTX-LL/APTX-HD/LDAC
-
Interface:
-
3.5mm Aux & OPTICAL
-
Transmission distance:
-
Up to 164ft (50m)
-
Antenna:
-
dual external antennas
-
Current:
-
<150mA
-
Input Voltage:
-
4.8V~5.25V
-
Rate Power:
-
<750mW
-
Certifications:
-
CE FCC ROHS
Why Choose Us
Product Paramenters
|
Product name
|
Bluetooth Transmitter & Receiver (LDAC, Screen)
|
|
Wireless Mode/Chip
|
Bluetooth 5.0/CSR8675
|
|
Feature
|
Visual operation to connect to bluetooth receiver
|
|
Complies with
|
A2DP/AVRCP/HFP/HSP/ SBC/AAC/APTX/APTX-LL/APTX-HD/LDAC (up to 990kbps, PCM 96kHz/24bit)
|
|
Audio interface
|
3.5mm AUX x 2 & OPTICAL x 2
|
|
Battery
|
No
|
|
Antenna
|
dual 2dBi external antennas
|
|
Current
|
<150mA
|
|
Input Power
|
5V DC
|
|
Working distance
|
Up to 164ft (50m) in open air and up to 50-70ft (20-30m) indoors
|
|
Working temperature
|
-20 ~ + 60 ° C
|
|
Product size
|
110 x 70 x 20mm (60g)
|
|
Package Size
|
19 x 12.5 x 3.1cm (219g)
|
Products Description

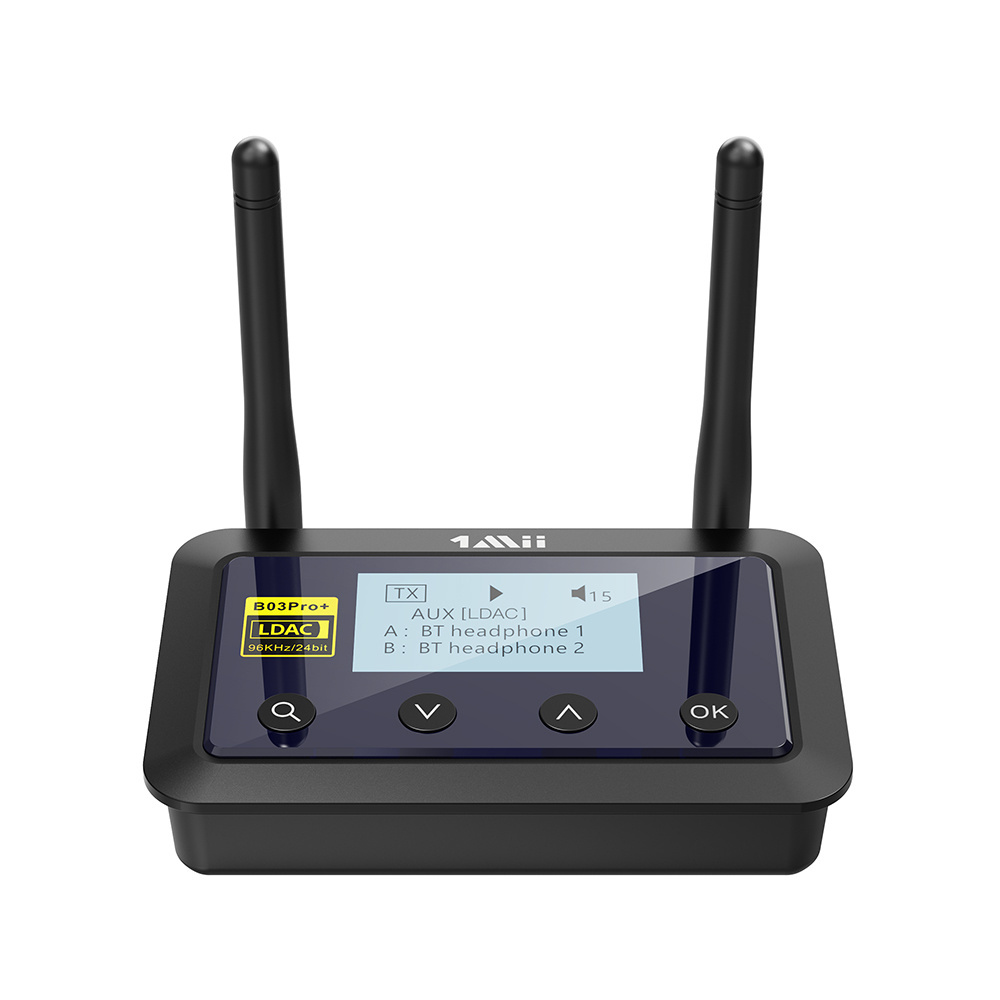

1Mii B03Pro+ - Bluetooth Audio Transmitter Receiver
with LDAC
1Mii B03Pro+ Bluetooth Transmitter Receiver featuring the latest Bluetooth 5.0 (CSR8675) and support for LDAC, APTX HD, APTX LL, SBC and AAC decoding.
2>>>24-bit LDAC High-Resolution Audio Solution
Built-in individual DAC chip ESS SABRE9018Q2C which are widely recognized by audiophiles as the gold standard for audio performance. LDAC is a codec that allows you to stream high-resolution audio high-resolution wireless audio up to 24-bit/96kHz, it's the highest standard for Bluetooth devices. Note: If you want to use LDAC, APTX HD and APTX LL codec to work, then your receiving device must support LDAC, APTX HD and APTX LL, otherwise LDAC, APTX HD and APTX LL will not work.
NOTICE: In TX mode, LDAC function works with ONLY ONE Bluetooth headphone which also features LDAC. DOESN'T support LDAC when pair with two Bluetooth headphones.
3>>>LCD Screen Display
1Mii B03Pro+ Bluetooth Adapter is designed with a very nice display screen. Clear and readable during operation, you can select the correct Bluetooth headphones, speakers or cellphones easily. B03Pro+ Bluetooth Transmitter Receiver also with volume control buttons.
4>>>TX + Bypass Mode
B03Pro+ Bluetooth Transmitter supports you to hear from wireless headphones and wired Speakers / sound bar at the same time. This allows the headphone user to listen at a different volume level when watching TV with families; a perfect solution for family use.
Note: Bypass can only work with the same type of input/output. eg. AUX input to AUX output or OPT input or OPT output.
5>>>No Lip Sync Delay & Dual Stream
APTX Low Latency technology eliminate Bluetooth audio delay, Long Range adapter 1Mii B03Pro+ supports dual link simultaneously, Pair with two Bluetooth headphones or two Bluetooth speakers & BOTH enjoy ultra-fast audio streaming. To achieve low latency (<40ms delay), your receiving device must also support APTX Low Latency, or you may experience a 70-220ms delay.
