Factory direct price aerogel insulation for building insulation materials  aerogel Blanket  20mm
Factory direct price aerogel insulation for building insulation materials  aerogel Blanket  20mm
Factory direct price aerogel insulation for building insulation materials  aerogel Blanket  20mm
Factory direct price aerogel insulation for building insulation materials  aerogel Blanket  20mm
Factory direct price aerogel insulation for building insulation materials  aerogel Blanket  20mm
Factory direct price aerogel insulation for building insulation materials  aerogel Blanket  20mm
Factory direct price aerogel insulation for building insulation materials  aerogel Blanket  20mm
Factory direct price aerogel insulation for building insulation materials  aerogel Blanket  20mm

Factory direct price aerogel insulation for building insulation materials aerogel Blanket 20mm

FOB Reference Price: Get Latest Price
≥30 Square meters
US $9
≥1000 Square meters
US $8
≥2000 Square meters
US $7
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Application:
construction
Design Style:
Modern
Place of Origin:
Chongqing, China
Brand Name:
CYK
Model Number:
10mm
Type:
aerogel
Material:
aerogel
product:
aerogel blanket
thickness mm:
3mm 6mm
Thermal conductivity w/m.k:
<0.018
Raw material:
aerogel
Color:
white
Size mm:
1500*20000*3mm
roll length m:
20
width m:
1.5

Quick Details

Warranty:
More than 5 years
After-sale Service:
Online technical support
Project Solution Capability:
total solution for projects
Application:
construction
Design Style:
Modern
Place of Origin:
Chongqing, China
Brand Name:
CYK
Model Number:
10mm
Type:
aerogel
Material:
aerogel
product:
aerogel blanket
thickness mm:
3mm 6mm
Thermal conductivity w/m.k:
<0.018
Raw material:
aerogel
Color:
white
Size mm:
1500*20000*3mm
roll length m:
20
width m:
1.5

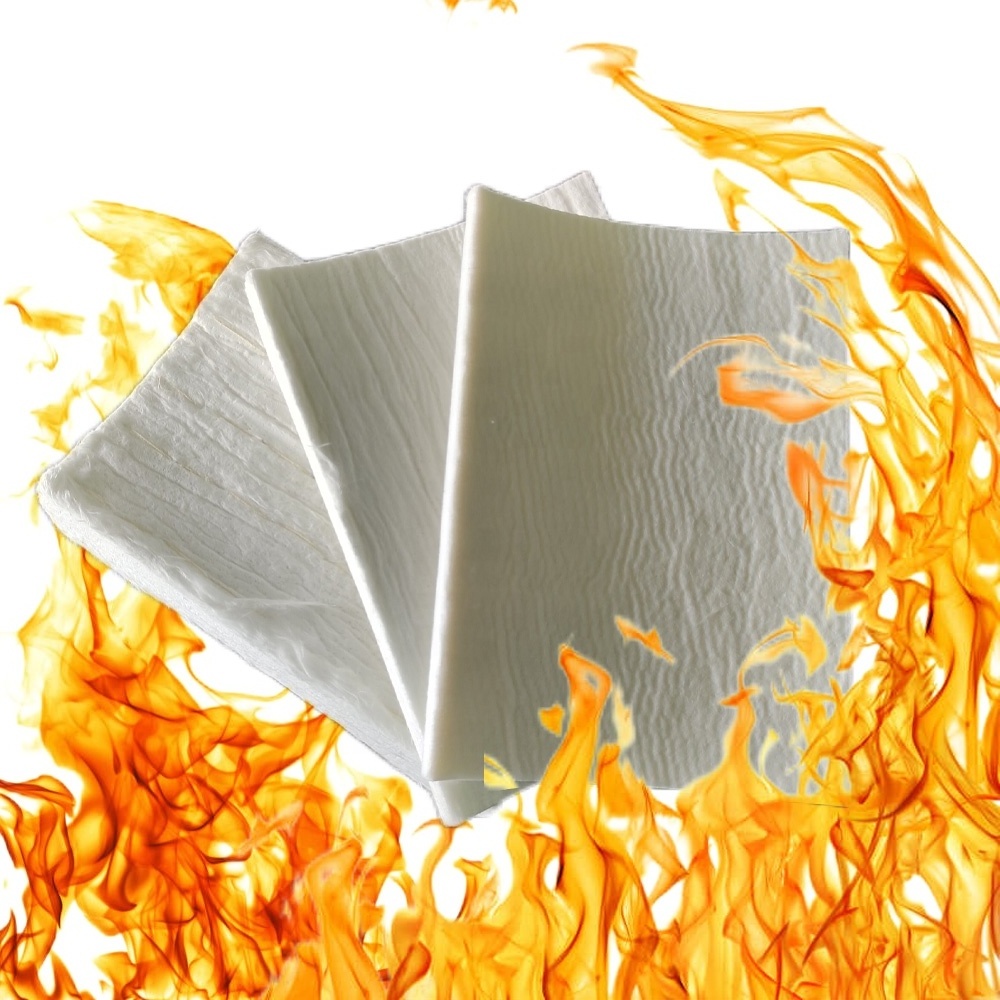

10mm Aerogel Blanket / Mat thermal Insulation Material
Description
Aerogel insulation mat is a kind of flexible, hydrophobic, high temperature resistant, fire-retardant, heat-insulating and energy-saving thermal insulation felt made by combining nano-porous silica aerogel and inorganic fiber materials using patented technology. The special process makes aerogel mat products have low thermal conductivity, low density, excellent overall hydrophobic performance, fire and flame retardant grades up to Class A standards, no powder falling off during transportation and use, and environmental protection. At the same time, they have superior with the characteristics of sound insulation, noise reduction, pressure reduction and vibration reduction, it can replace the traditional thermal insulation materials with poor thermal insulation performance such as various mineral wool, polyurethane, calcium silicate and so on.
Specifications
Item
Unit
Value
Test method
Thickness
mm
3/6/10/20 or others
Vernier caliper
Color
--
White
Visually

Thermal Conductivity

W/(m•K)
25℃
≤0.018

GB/T 10294-2008
300℃
≤0.037
500℃
≤0.076
Linear shrinkage
%
<1.0%
ASTM-C177
Compressive strength
Kpa
31@10%
GB/T 13480-2014
Chloride ion content
%
≤0.0003
JC/T 618-2005
Vibration loss rate
%
0.4
GB/T 34336-2017
Porosity
%
>95
GB/T 1799-2018
Hydrophobicity
%
99
GB/T 10299-2011
Bulk density
kg/m3
160~180
GB/T 1799-2018
Maximum service temperature
650/1100
GB/T 17430-1998
Combustion rating
A grade
A1 grade
GB 8624-2012
Applications
Aerospace: Aerospace vehicles and detectors, space suits, etc.;
Military field: heat preservation and fire protection of large ships and submarines, and light fire protection of tank armor;
Industrial equipment: thermal insulation of high-temperature kilns, steam pipes, large storage tanks, flange joints and other equipment;
Building thermal insulation: building internal and external wall thermal insulation, roof thermal insulation, steel frame structure fire insulation, etc.;
Transportation: heat insulation of engine, heat preservation of vehicle internal structure, cold and heat insulation of high and low temperature transportation pipelines.
Civilian fields: firefighting suits, space suits, cold-proof shoes, sleeping bag tents, paint-coated fabric insulation products, etc.
New energy sources: thermal insulation in the power warehouse (power battery), passenger car warehouse, and car body structure of new energy vehicles.
1. who are we?
We are a specialized supplier of heat insulation and filtration materials ,based in Chongqing, China, start from 2010. We have our own plants to serve our customers both in China and overseas' market. We have established the strategic cooperation with some of customers and quikly grows in these years. Besides it, we work closely with our partner manufacturers of glass fiber, basalt fiber and carbon fiber products etc to serve well on our customers.

2. how can we guarantee quality?
We always adhere to the principle of "to provide the best quality as we can". We have the strict quality control policy on our products and on our partner's companies before the goods delivery. If there is some quliaty issue, we will closely check with our customers and always take our responsibilities if it happen even though the possiblility is very low.

3.what can you buy from us?
The heat insulation materials include vacuum insulation panel(or board), Vacuum glass ,Aerogel mat and others for construction and industrial applications. The filtration material and product include various kinds of glass fiber filtrate paper (F and Hepa grade, laminated ones), wood pulp filter paper (tea and coffee filter paper), various kinds of non-woven tissue (used for face mask and others) and PP, PET filter paper. The new material of fiber products include glass fiber, basalt fiber and carbon fiber materials such as roving, chop strand,fabric and mat.etc.

4. why should you buy from us not from other suppliers?
We are specialized in the heat insulation and filtration fields morn than 10 years and can provide the best solutions to our customers. We always respect our reputation and treat our customers sincerely.

5. what services can we provide?
Accepted Delivery Terms:EXW, FOB,CFR,CIF,Express Delivery;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T, L/C, D/P,Western union,Paypal;
