Quick Details
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
i-transfer
-
Model Number:
-
HPM-2917
-
Usage:
-
4 Station Pneumatic Automatic Heat Press Mahcine
-
Dimensions(L*W*H):
-
260*98*140cm
-
Weight:
-
1300 KG
-
Keywords:
-
pneumatic four stations heat transfer
-
Color:
-
Blue
-
Application:
-
T shirts,rock photos, tiles, backpack bag, puzzle
-
Feature:
-
Personalized Custom
-
Printing Area:
-
200*1700mm
-
OEM and ODM:
-
Available
-
GW:
-
1300kg
-
Package Size:
-
260*98*140cm
Quick Details
-
Condition:
-
New
-
Plate Type:
-
Flatbed Printer
-
Color & Page:
-
Multicolor
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
i-transfer
-
Model Number:
-
HPM-2917
-
Usage:
-
4 Station Pneumatic Automatic Heat Press Mahcine
-
Dimensions(L*W*H):
-
260*98*140cm
-
Weight:
-
1300 KG
-
Keywords:
-
pneumatic four stations heat transfer
-
Color:
-
Blue
-
Application:
-
T shirts,rock photos, tiles, backpack bag, puzzle
-
Feature:
-
Personalized Custom
-
Printing Area:
-
200*1700mm
-
OEM and ODM:
-
Available
-
GW:
-
1300kg
-
Package Size:
-
260*98*140cm
Product Description

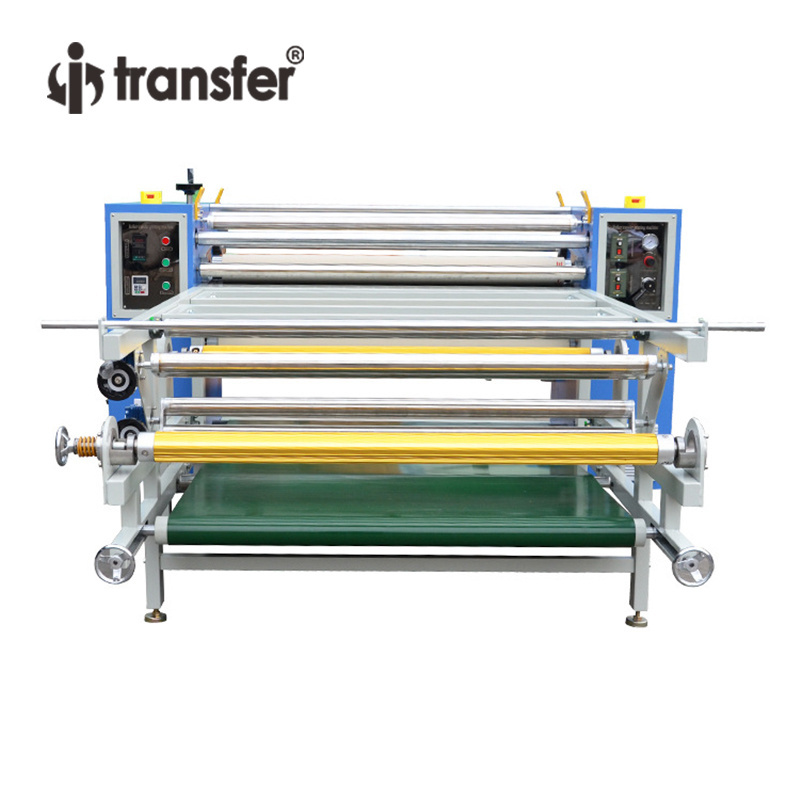

Multi-function Mini Sublimation Transfer Textile Roll Fabric Rotary Printing Drum Calender Roller Heat Press Machine
This machine improved from the original model of “down delivery” to the “Up delivery”. Therefore, it is more convenient to transfer printing on clothing and cuttings with more accurate location. Using the pneumatic pressing or hydraulic press for wool blanket marks the color of the products darker, and brighter, which greatly speed up the transfer printing.
Features:
1. This SUS heating hose heats oil directly at the higher heating speed, reaching 200℃ within 45 minutes
2. It is equipped with external oil box which makes it convenient to add heat conduction oil, it has high security performance with the unique advantage of anti-explosion through automatic turn off.
3. Blanket ad belt are separated. Adopt simultaneous shaft adjustment and pressure balancing shaft to make sure the pressure on the blanket is consistent with that on the heating roller, Thus completely solve the problem of cooling the blanket while turning off the machine or while power off, and give more protection to the blanket and extend its using life.
4. Use frequency conversion governor which can adjust the printing speed freely. And the transfer printing speed is more stable.
5. Automatic collecting and releasing cloth system is optionally equipped.
6. The electric components of the product are imported, and it separated structure of the electric box with the body machine makes the using life of the electrical equipment longer, the digital control brings higher accuracy.
7. The hardware is with high-tech configuration. The main wall panel and rollers are all reinforced and manufacture professionally.
8. The releasing-laying system is manufactured with the body machine as a while part, thus to deliver the paper or cloth exactly parallel without deviation. It only converts a small area but it is labor-saving with high overall efficiency.
Specification
|
Type
|
Heat Press Machine
|
|
Applicable Industries
|
Garment Shops, Printing Shops
|
|
Condition
|
New
|
|
Plate Type
|
Flatbed Printer
|
|
Brand Name
|
i-transfer
|
|
Model Number
|
HPM-2917
|
|
Voltage / power
|
220V/380V 120000W
|
|
Time range
|
0-999s
|
|
Max temp
|
0-220℃
|
|
Printing Size
|
200*1700mm
|
|
GW
|
1300kg
|
|
Package size
|
260*98*140cm
|
