Quick Details
-
Filling Accuracy:
-
±1ml
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YOUNGSUN
-
Weight:
-
2000 KG
-
CAPACITY:
-
Max 72.000 cph
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Machinery Capacity:
-
72000BPH
-
Packaging Material:
-
Glass
-
Filling Material:
-
Beer
-
Filling Accuracy:
-
±1ml
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YOUNGSUN
-
Weight:
-
2000 KG
-
CAPACITY:
-
Max 72.000 cph
-
Marketing Type:
-
Ordinary Product
Product Description

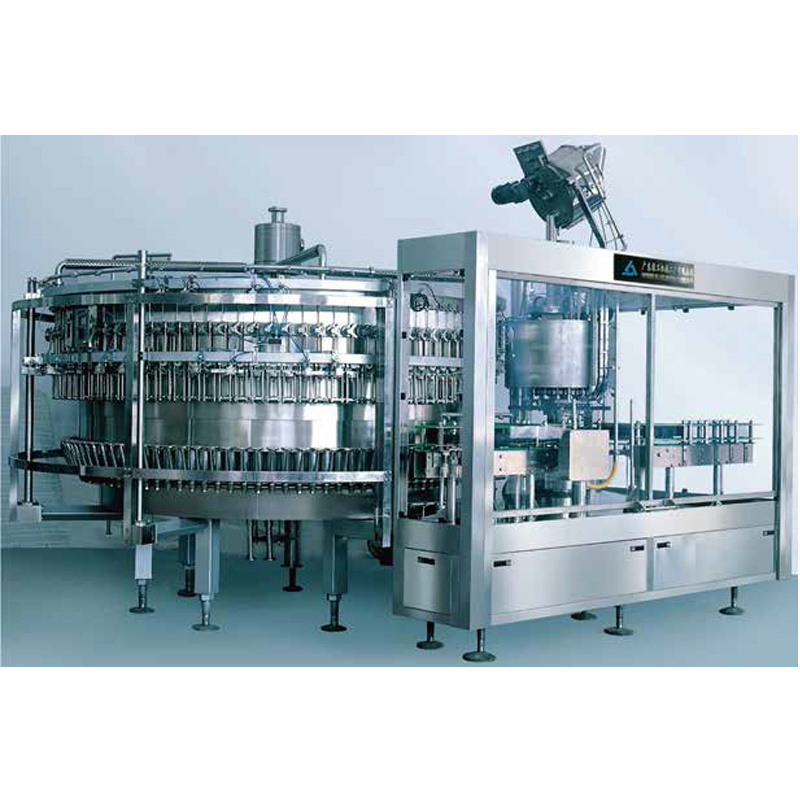

The short tube filler or volumetric can filler in hygienic design is used to fill beer or carbonated soft drinks in aluminum cans. The filler is blocked with a seamer and is driven by frequency-controlled motors. The cans are supplied to the filler in handling parts, designed for quick changeover and made from high wear resistant plastic material. Both cold fill and warm fill up to 15°C is possible. The fill height is either controlled by vent tubes or volumetric control to ensure high fill level accuracy. All parameters can be easily adjusted on the HMI. The filer is equipped with oxygen measurement and fully automatic CIP and COP process.
All parts of the filler are designed for easy cleaning and sterilization.
All parts of the filler are designed for easy cleaning and sterilization.
OPERATION SAFETY
* Protection doors surrounding the machine, alternative by filling room.
* Auto stop at all doors and windows.
* Auto stop at all doors and windows.
Size Information
|
PRODUCTION CAPACITY
|
|
|
||
|
Ringbowl diameter
|
Number of valves
|
Capacity per hour
|
||
|
1,600
|
32
|
6.000 to 15.000
|
||
|
2,000
|
40 or 50
|
15.000 to 36.000
|
||
|
2,400
|
60
|
27.000 to 40.000
|
||
|
2,166
|
76
|
32.000 to 50.000
|
||
|
2,622
|
92
|
43.000 to 60.000
|
||
|
3,078
|
108
|
51.000 to 72.000
|
||
|
3,648
|
128
|
60.000 to 90.000
|
||
|
4,104
|
144
|
90.000 to 120.000
|
||
FILLING TECHNOLOGY
* PGF: Mechanical filler with vent tubes and cam control.
* YDL: Volumetric filler with measuring cylinder for filling volume control with deviation within ±1ml.
* YDL: Volumetric filler with measuring cylinder for filling volume control with deviation within ±1ml.
Why Choose Us
MACHINE BENEFITS
* Hygienic design with automated CIP and COP.
* Circular type ring bowl in sanitary design without dead spaces.
* Motorized height adjustment of filler bowl to adapt the filler to different SKUs.
* Automatic filling speed control according to infeed/discharge product flow. The infeed is automatically stopped if the flow of empty cans is interrupted. Filling speed and can counter are displayed on the HMI.
* Reliable plastic infeed star wheels for quick change over and fast release.
* Coupling joint connection between filler and the seamer to ensure synchronization.
* Dissolved oxygen measurement and control.
* Hygienic central supply pipe to avoid cross contamination between product (CO2/CIP) and operation gas, no fluid or gas accumulation for easy cleaning.
* Stable operation, filling volume is pre-set at the HMI for high filling accuracy. Minimized product loss.
* Microbiological safe guiding parts with self-contained star wheels, open guiding curves and streamline support parts to
eliminate dead spaces，ensuring complete cleaning and sterilization of all outside surfaces.
* Glass observation window in product supply pipe.
* Auto CIP dummy cups as option.
* Circular type ring bowl in sanitary design without dead spaces.
* Motorized height adjustment of filler bowl to adapt the filler to different SKUs.
* Automatic filling speed control according to infeed/discharge product flow. The infeed is automatically stopped if the flow of empty cans is interrupted. Filling speed and can counter are displayed on the HMI.
* Reliable plastic infeed star wheels for quick change over and fast release.
* Coupling joint connection between filler and the seamer to ensure synchronization.
* Dissolved oxygen measurement and control.
* Hygienic central supply pipe to avoid cross contamination between product (CO2/CIP) and operation gas, no fluid or gas accumulation for easy cleaning.
* Stable operation, filling volume is pre-set at the HMI for high filling accuracy. Minimized product loss.
* Microbiological safe guiding parts with self-contained star wheels, open guiding curves and streamline support parts to
eliminate dead spaces，ensuring complete cleaning and sterilization of all outside surfaces.
* Glass observation window in product supply pipe.
* Auto CIP dummy cups as option.
* Microbiological safe guiding parts with self-contained star wheels, open guiding curves and streamline support parts to
eliminate dead spaces to ensure complete cleaning and sterilization of all outside surfaces.
* Glass observation window in product supply pipe.
* Auto CIP dummy cups as option.
eliminate dead spaces to ensure complete cleaning and sterilization of all outside surfaces.
* Glass observation window in product supply pipe.
* Auto CIP dummy cups as option.
Related Products
Company Introduction
Youngsun, be built in 1983, the famous trademark of China’s packaging industry, is a larger manufacturer of packaging equipment in China and a national high-tech enterprise integrating R&D, production, sales and services, with main businesses including various liquid filling, powder and granule packaging, universal packaging equipment, and external packaging materials, etc.
It has been listed on the Shanghai Stock Exchange since May 29, 2015, with the Stock Code 603901.
The output value of Youngsun group and the affiliated companies reach USD 600 million, and the output value of Youngsun headquarters reaches USD 300 million.
We have already passed Moody international ISO9000 in 2002, approved CE in 2004. What's more, we established long term business with world-famous brands like Ferroro, Danone, Budweiser, Pepesi, P&G, Asiafoods etc.
As a customized-products oriented company and enjoy high reputation in worldwide packing industry, we are still seeking for ever greater perfection.
We offer: Case Erectors; Labeling Machine; Shrink Wrapper; Carton Sealer Strapping Machine; Strapping Tool; Palletizer; Wrapping Machine; Carton Packer; Packing Line; PP/PET Straps; Stretch Film/Shrink Film; Conveyor; Cartoning Machine; Robot……and customized packing machines.
We are in a good position not only to supply you high quality machinery, but also the excellent after sales service. Well-trained engineers will offer you any technical support. I think we can find opportunity to cooperate as we have the same goal: providing superior quality products and services that consistently exceed our customers' expectations.
Product Range
FAQ
1. Any assistive tool needed to work?
Kindly please note: All of the pneumatic machine/tool need to work together with the air compressor.
2.Are you manufacturer or trade Company?
We are a factory founded in 1983 with trade team for international service. We can not only offer you good quality machine, but also after-sale service and technical support.
3. What terms of payment you usually use?
T/T 100%; T/T 30% deposit and 70% against document, Western Union, L/C at sight……
4.Any certificate for the machine?
CE Certificate
5. What is your lead time for your goods?
It depends on the machine quantity. Kindly please feel free to contact us for the exact lead time.
Manual strapping machine:
7-15 days
Packing machine:
Normally 45 days after confirmed order.
30 days could be available in low season for some items (during May to July), and 65 days
during new year and hot season ( Jan to March).
