Quick Details
-
Brand Name:
-
GEMCO
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1240*580*1000mm
-
Power (kW):
-
7.5Kw
-
Weight (KG):
-
2 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Wood granultor pellet machine
-
Material:
-
straw, hay, wood, sawdust.etc
-
Pellet diameter:
-
2-12mm
-
Capacity of saw dust pellet making:
-
160-250 kg per hour
-
Motor of wood pellet machine:
-
electric motor
-
Shape:
-
Length of the pellets can be adjustable by control the cutting knife
-
Advantages:
-
heating, industrial electricity and others
-
Countries:
-
South Africa, Russia, America
-
Usage:
-
making biomass energy
Quick Details
-
Pellet Diameter (mm):
-
2 - 12
-
Output (kg/h):
-
2 - 12 kg/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
GEMCO
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1240*580*1000mm
-
Power (kW):
-
7.5Kw
-
Weight (KG):
-
2 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Wood granultor pellet machine
-
Material:
-
straw, hay, wood, sawdust.etc
-
Pellet diameter:
-
2-12mm
-
Capacity of saw dust pellet making:
-
160-250 kg per hour
-
Motor of wood pellet machine:
-
electric motor
-
Shape:
-
Length of the pellets can be adjustable by control the cutting knife
-
Advantages:
-
heating, industrial electricity and others
-
Countries:
-
South Africa, Russia, America
-
Usage:
-
making biomass energy

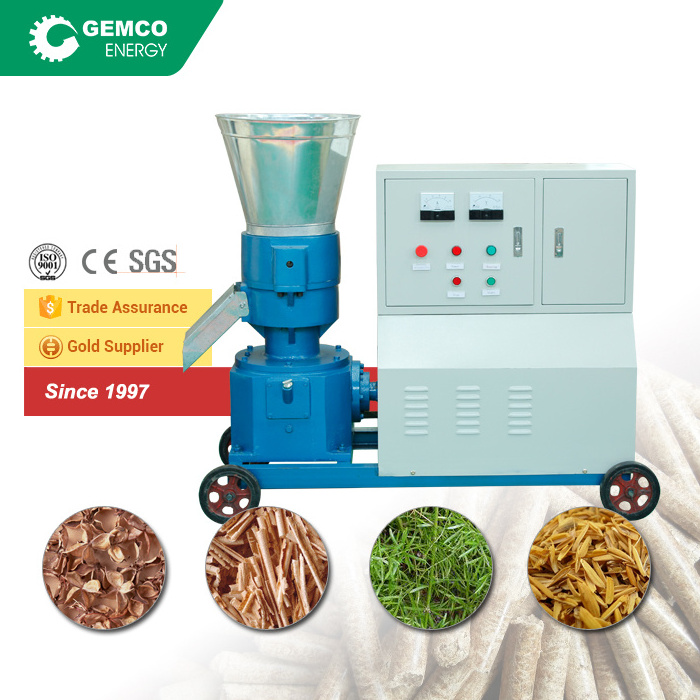

Gemco small scale saw dust wood pellets making machine
Small scale
wood granulator
is also called flat die wood pellet machine, which is a small type saw dust pellet making machine with small capacity.
This wood granulator has two types,
D-type
and
R-type
.
The two type flat die wood pellet machine are all good at making wood pellets. Relatively speaking, the yield of D-type is less than R-type. So it is more suitable for processing soft wood raw materials ( like saw dust ). Besides, the investment is lower. R-type is more suitable for harder wood raw materials ( like Oak wood ). From the aspect of structure, the roller of D-type wood granulator is fixed on the upper machine and the die rotates with the main shaft. R-type is contrary to D-type, the die of R-type is fixed while the roller rotates.
small scale saw dust pellet wood crusher making machine wood pellet pellets small scale saw dust pellet wood crusher making machine wood pellet pellets
GEMCO D-Type C model wood granulator pellet machines
| Model | Power(kw) | Output(kg/h) | Weight(kg) | Packing Size(mm) |
|---|---|---|---|---|
| ZLSP-D 150C | 3phase 5.5 | 60-110 | 105/125 | 1000*480*780 |
| ZLSP-D 200C | 3phase 7.5 | 80-120 | 210/230 | 1050*550*830 |
| ZLSP-D 230C | 3phase 11 | 120-200 | 290/320 | 1200*560*950 |
| ZLSP-D 260C | 3phase 15 | 160-250 | 340/370 | 1240*580*1000 |
| ZLSP-D 300C | 3phase 22 | 250-400 | 425/465 | 1300*620*1100 |
Click Now for Catalogs & Factory Price !
small scale saw dust pellet wood crusher making machine wood pellet pellets small scale saw dust pellet wood crusher making machine wood pellet pellets
Main structure in wood pellet machine
There are two major parts of the wood granulator, roller and pellet die. They are the key parts during the saw dust pellet making machine and they decide the quality of pellets.
Click Now for Catalogs & Factory Price !
small scale saw dust pellet wood crusher making machine wood pellet pellets small scale saw dust pellet wood crusher making machine wood pellet pellets
The wood granulator making flow chart
Click Now for Catalogs & Factory Price !
small scale saw dust pellet wood crusher making machine wood pellet pellets small scale saw dust pellet wood crusher making machine wood pellet pellets
Application of wood granulator
Flat die saw dust pellet making machine for sale is suitable for home use, small plant production and farm. The end products can be used for household heating, cooking, horse bedding, sometimes for industrial boiler heating, for its highest yield can be up to 500kg/h.
GEMCO Machinery offers all kinds of wood granulator for you.
Advantages of wood granulator pellet machine
Material of wood pellet machine
Click Now for Catalogs & Factory Price !
small scale saw dust pellet wood crusher making machine wood pellet pellets small scale saw dust pellet wood crusher making machine wood pellet pellets
Packing & Delivery
Click Now for Catalogs & Factory Price !
Certifications of wood granulator
GEMCO wood granulator agents recruiting!
Do you want to start a business in wood granulator selling? Do you want to get huge profits? There is a great opportunity that should not be missed! We are searching for the agent in each kind of wood granulator pellet machine selling, if you have the plan and ability, and if there is large potential of pellets consuming market in your local position. You can join us, for we provide all-around service to our agent! Besides, we will transfer the order to you, if we get the order from your agency area! It is really a great chance, we are hopefully waiting for your joining!
Click Now for Catalogs & Factory Price !
Customer visiting for GEMCO wood granulator pellet machine
