Quick Details
-
Product name:
-

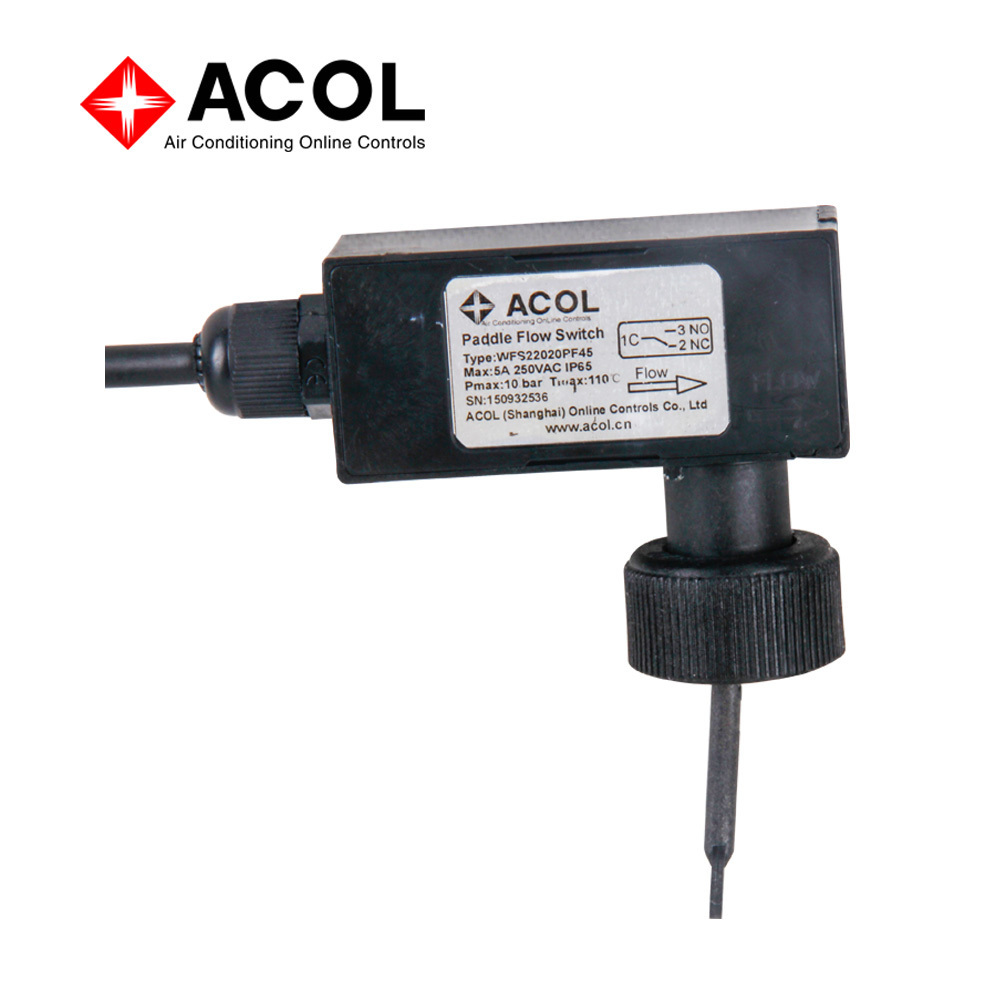

Hot sale magnetic water flow switch
-
Max.voltage:
-
250VAC/24VDC±10%
-
Max.current:
-
5A
-
Mode of connection:
-
Direct connect/DIN 43650A
-
Output:
-
SPDT micro switch
-
Pressure:
-
25bar
-
Average pressure loss:
-
0.01bar at Q.max
-
Working temperature:
-
-20℃~90℃
-
Protection class:
-
IP65
Quick Details
-
Media Type:
-
water
-
Place of Origin:
-
Shanghai, China
-
Brand name:
-
ACOL
-
Product name:
-
Hot sale magnetic water flow switch
-
Max.voltage:
-
250VAC/24VDC±10%
-
Max.current:
-
5A
-
Mode of connection:
-
Direct connect/DIN 43650A
-
Output:
-
SPDT micro switch
-
Pressure:
-
25bar
-
Average pressure loss:
-
0.01bar at Q.max
-
Working temperature:
-
-20℃~90℃
-
Protection class:
-
IP65
| Parameter | |
| Max.voltage | 250VAC(No status Indicator)/24VDC±10%(With status Indicator) |
| Max.current | 5A(50VA) |
| Mode of connection | Direct connect/DIN 43650A |
| Output | SPDT micro switch,Two lines/three lines are optional(Optional status indicator) |
| Pressure | 25bar,custom-made 40bar |
| Average pressure loss | 0.01bar at Q.max |
| Working temperature | -10℃~85℃ |
| Protection class | IP65 |
| Body material | PPO plastic |
| Paddle material | PPO plastic |
| Electrical enclosure | ABS |
Application
Magnetic water flow switch for chiller flow switch is w idely used in industrial automation / mechanical equipment / air compression industry / refrigeration and air conditioning, industrial applications in water-cooled welding machines, laser equipment cooling systems, vacuum coating machines, electric furnaces, polysilicon ingot furnaces, sewage systems.
| parameter | ||||||||
| Pipe diameter | Model | Flow range(l/min) | MAX Flow(l/min) | A(mm) | B(mm) | C(mm) | D(mm) | L(mm) |
| DN20 | WFS22020PF(30) |
5.6(4.8)~7.6(6.4) |
40 | 29.5 | -- | -- | 13 | 29 |
| DN25 | WFS22020PF(35) |
8.6(7.3)~11.7(9.9 ) |
60 | 35.5 | --- | -- | 13 | 29 |
| DN32 | WFS22020PF(35) | 14.1(12.0)~19.1(16.3) | 80 | 35.5 | -- | -- | 13 | 29 |
| DN40 | WFS22020PF(35) | 22.1(18.8)~29.9(25.4) | 100 | 35.5 | -- | -- | 13 | 29 |
| DN50 | WFS22020PF(45) | 34.5(29.4)~46.7(39.7) | 150 | 45.5 | -- | -- | 13 | 29 |
| DN63 | WFS22020PF(70) | 53.2(45.2)~71.9(61.2) | 250 | 70 | 46.5 | 12 | -- | 29 |
In flow range,outside the brackets is the action flow point,inside is the reset flow point.
In the figure, the size of A is the sum of the top of the tee to the center of the tee and the thickness of a rubber sheet(about 1.5mm).
| Selection table | |||||||
| WFS22 | 020 | P | F |
(30) |
1A | /1M | Detailed |
| WFS22 | WFS22 Series | ||||||
| 020 | Connection thread:DN25 | ||||||
| P | Body material:Engineering plastic | ||||||
| F | Interface Type:Internal thread insert | ||||||
| (30) | Blank height:30mm | ||||||
| (35) | Blank height:35mm | ||||||
| (45) | Blank height:45mm | ||||||
| (70) | Blank height:70mm | ||||||
| 1A | Cable connector type:DIN 43650connector(The letter after the number represents the connector) | ||||||
| 2A | Cable connector type: Common connector(The letter after the number represents the connector) | ||||||
| /1M | Wiring:1M(According to demand) | ||||||
WIRING(DIN43650)
WIRING(Ordinary connector with wire)
