Quick Details
-
Model Number:
-
KCD4
-
Max. Current:
-
10A/15A/16A/20A
-
Mechanical Life:
-
10000H
-
Products name:
-
Electric Rocker Switch
-
color:
-
red/green/yellow/black
-
pins:
-
4P
-
material:
-
ABS/Nylon
-
Function:
-
ON-OFF
-
Led color:
-
Red
-
Rating:
-
16A 250VAC / 20A 125VAC
-
Application:
-
Electric Equipment
-
Certification:
-
none
Quick Details
-
Max. Voltage:
-
250V/125V
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
hengxin
-
Model Number:
-
KCD4
-
Max. Current:
-
10A/15A/16A/20A
-
Mechanical Life:
-
10000H
-
Products name:
-
Electric Rocker Switch
-
color:
-
red/green/yellow/black
-
pins:
-
4P
-
material:
-
ABS/Nylon
-
Function:
-
ON-OFF
-
Led color:
-
Red
-
Rating:
-
16A 250VAC / 20A 125VAC
-
Application:
-
Electric Equipment
-
Certification:
-
none

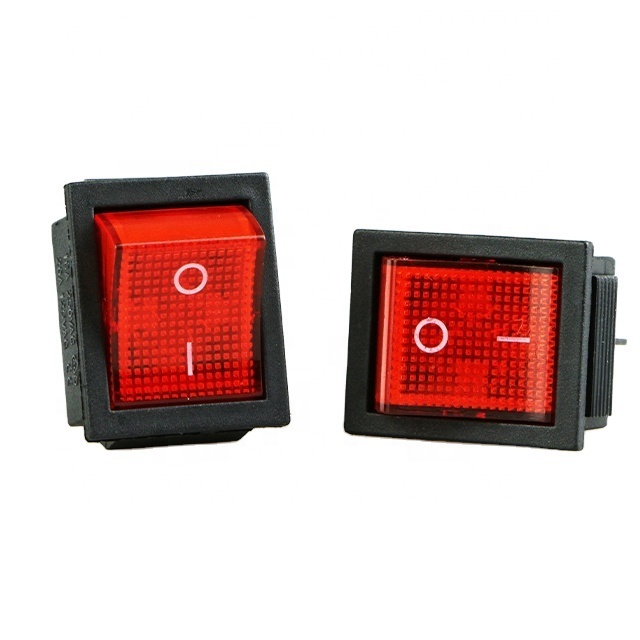

16A Electrical boat switch 4 pin 6 pin illuminated ON-OFF KCD4 rocker switch
Specification
|
Rating |
15A 16A/250V AC, 20A/125V AC |
|
Rated Load |
2/8A 250V AC |
|
Contact Resistance |
≤50MΩ |
|
Dielectric Intensity |
≥1500V AC/min |
|
Withstand Voltage |
1500V AC/min |
|
Temperature |
-25~85°C |
|
Insulation Resistance |
≥100MΩ |
|
Life |
≥10,000 cycles |
|
Pins |
4/6 |
|
Function |
Six kinds of choices |
|
Illumniated |
No Illuminated or 220V Neon Lamp |
|
Terminal Base |
NYLON 66 |
Material
1. Base plastic ---Nylon 66
2. Button plastic --- ABS or Nylon 66
3. Copper parts such as terminal---- Copper H62
4.Terminal surface treatment----- silver plating
5.Contact----Ag or Composite silver
6.Spring----Tungsten steel
7.Waterproof cap----PVC (It has waterproof cap if required. )
8.Mount-PCB
Packing details
2000pcs/ctn G.W:30kgs/ctn 55x35x45cm
