Quick Details
-
Brand Name:
-
Clientop
-
Supplier Type:
-
Custom
-
Resolution:
-
1920*1080
-
Frequency:
-
75Hz
-
HDM1:
-
1080P,HDCP Version 2.0/1.4
-
Type C input:
-
1080P
-
Type C power in:
-
5V 3A power out
-
Working power:
-
DC 12V input
-
LCD interface:
-
LVDS to panel
-
Voltage:
-
5V,12V
-
LED lights:
-
PWM backlight adjustment
-
OSD language:
-
Multiple language
Quick Details
-
Model Number:
-
W3AFHD DV1
-
Type:
-
Multilayer pcb
-
Place of Origin:
-
GUA
-
Brand Name:
-
Clientop
-
Supplier Type:
-
Custom
-
Resolution:
-
1920*1080
-
Frequency:
-
75Hz
-
HDM1:
-
1080P,HDCP Version 2.0/1.4
-
Type C input:
-
1080P
-
Type C power in:
-
5V 3A power out
-
Working power:
-
DC 12V input
-
LCD interface:
-
LVDS to panel
-
Voltage:
-
5V,12V
-
LED lights:
-
PWM backlight adjustment
-
OSD language:
-
Multiple language

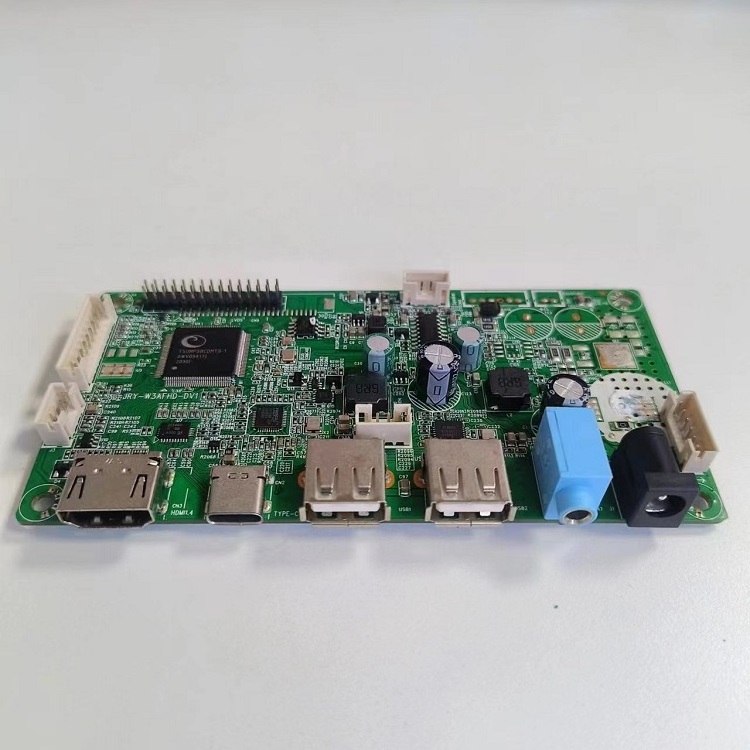

2K FHD 1920*1080@75Hz LVDS LCD control board,
W3AFHD DV1 LVDS LCD controller board Comes with LVDS interface and multiple OSD languages,touch screen compatible,
HDM1 input, HDMI1 1.4 and HDCP 2.0 integrated.
Support USB HUB function,2*inner USB 2.0 interfaces
,could be applied for touch panel and serial communication connection.
Support 5V 3A power to panel.
Type C terminal support DisplayPort Alt Mode.
|
No.
|
|
Interface
|
|
Function
|
||
|
1
|
|
CN4
|
|
LVDS signal out
|
||
|
2
|
|
CN1
|
|
Keyboard interface
|
||
|
3
|
|
J3
|
|
IIC/RS232 communication interface
|
||
|
4
|
|
CN3
|
|
HDM1 1.4 signal in
|
||
|
5
|
|
CN2
|
|
Type C signal in
|
||
|
6
|
|
J4
|
|
Inner USB2.0 down interface
|
||
|
7
|
|
J2
|
|
Inner USB2.0 down interface
|
||
|
8
|
|
CN7
|
|
Earphone output
|
||
|
9
|
|
J1
|
|
DC power in
|
||
|
10
|
|
CN8
|
|
Backlight output
|
||
|
11
|
|
CN6
|
|
Speaker output interface(2*2w)
|
||
