Quick Details
-
Market Segement:
-
Mining transportation
-
Engine Capacity:
-
< 4L
-
Gross Vehicle Weight:
-
4050
-
Drive Wheel:
-
4x4
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Overseas Call Centers, Return and Replacement, Field installation, commissioning and training, Online support, Free spare parts, Field maintenance and repair service, Shop warranty
-
Brand Name:
-
FOTON
-
Place of Origin:
-
Guangdong, China
-
Dimensions (L x W x H) (mm):
-
5770x2200x2630mm
-
Cargo Tank Dimension:
-
standard
-
Wheel base:
-
3200mm
-
Bucket Dimension:
-
3500x2050x600mm
-
Lifting type:
-
F type lifting
-
Cylinder:
-
Hydraulic
-
Max speed:
-
76km/h
-
Gear box:
-
WLY5-45, 5 speeds
Quick Details
-
Condition:
-
New
-
Horsepower:
-
110HP
-
Emission Standard:
-
Euro 2
-
Market Segement:
-
Mining transportation
-
Engine Capacity:
-
< 4L
-
Gross Vehicle Weight:
-
4050
-
Drive Wheel:
-
4x4
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Overseas Call Centers, Return and Replacement, Field installation, commissioning and training, Online support, Free spare parts, Field maintenance and repair service, Shop warranty
-
Brand Name:
-
FOTON
-
Place of Origin:
-
Guangdong, China
-
Dimensions (L x W x H) (mm):
-
5770x2200x2630mm
-
Cargo Tank Dimension:
-
standard
-
Wheel base:
-
3200mm
-
Bucket Dimension:
-
3500x2050x600mm
-
Lifting type:
-
F type lifting
-
Cylinder:
-
Hydraulic
-
Max speed:
-
76km/h
-
Gear box:
-
WLY5-45, 5 speeds

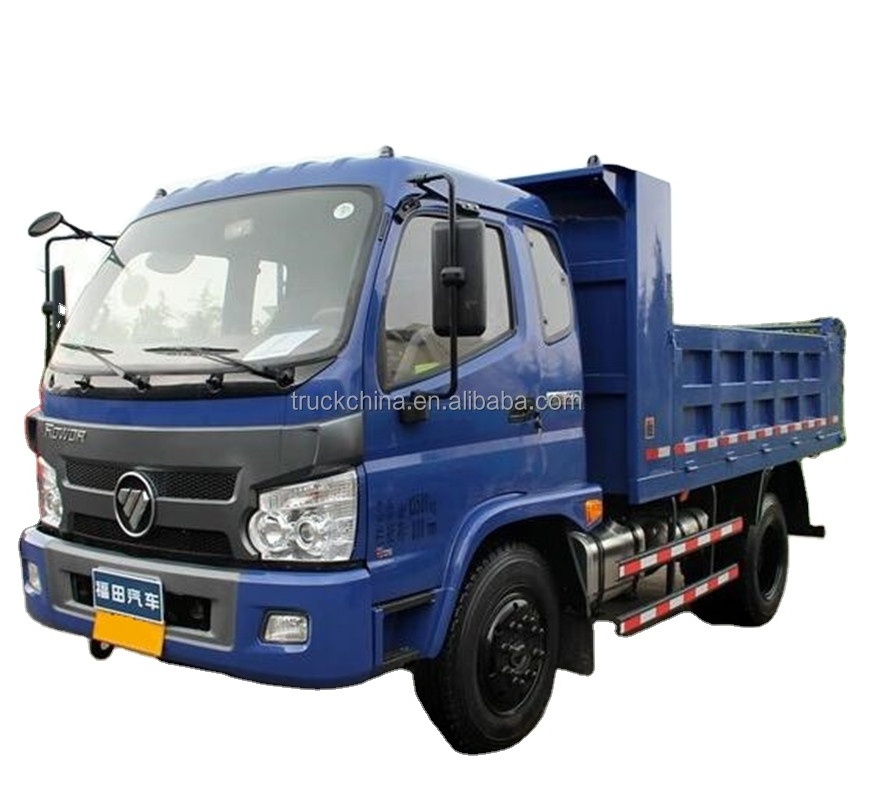

FOTON 4x4 5 tons Tipper Truck Small Off Road Dump Trucks for sale
1.FOTON 4X4 dump truck for sale
2.All wheel drive type dump truck,4x4 military quality
3.High quality and competitive price
4.Quick delivery time
5.Best after-sales
|
Vehicle model |
BJ3052D8JEA-2 |
|
|
Model |
3062AEL34100Lj32-1(4x4) |
|
|
Cabin model |
Left hand driving,single-row,flat head,1900 |
|
|
Emission Standard |
Euro-II |
|
|
Whole vehicle main dimensions |
Overall dimensions (L×W×H)(mm) |
5770×2200×2630 |
|
Inner dimensions of the cargo body (L×W×H)(mm) |
3500×2050×600 |
|
|
Driving type |
4x4 |
|
|
Wheel base (mm) |
3200 |
|
|
Wheel track (front/rear)(mm) |
1760/1654 |
|
|
Weight data |
Curb weight(kg) |
4050 |
|
Rated payload(kg) |
5000 |
|
|
Seating capacity |
3 |
|
|
Whole vehicle main performance |
Max. speed(no load)(km/h) |
76 |
|
Max. lift degree(°) |
48.1 |
|
|
Engine |
Model |
YN4100QBZL (Euro-II) |
|
Type |
In-line/water-cooling/four-stroke/intercooling/supercharge |
|
|
Displacement(L) |
3.298 |
|
|
Rated Power(kw/hp) |
81/110 |
|
|
Gearbox |
Modle |
WLY5-45 |
|
Rear axle |
Main reduction ratio |
6.33 |
|
Steering gear |
Power steering |
|
|
Tire type/number |
8.25-20/6+1 |
|
|
Brake system |
Service brake |
Drum type,air pressure double loop braking |
|
Parking brake |
Energy storage spring rear wheel braking |
|
|
Rate Voltage ( V ) |
24 |
|
|
Capacity of fuel tank(L) |
140 |
|
|
Standard configurations |
Adjustable steering wheel,heater,spare tire,auxiliary brake,electronically flameout, air conditioner |
|
We can supply kinds of service to customers according to customers' request:
1,We Will Check Again Before Sending.
2,Spare Parts Supply:
We have our own spare parts departments,have strong production and distribution capability. We can satisfy your demand within 2-7 days. We always do our best to solve the problems, and put our customers' interests in the first place. And We can Supply Spare Parts For Many Brands, Such as SINOTRUK, BEIBEN, FAW, FOTON, IVECO, SHACMAN, SHANTUI, CIMC, DONGFENG and so on.
