Quick Details
-
Production Capacity:
-
11KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Guangjie
-
Voltage:
-
380V/220V, 220V/380V
-
Dimension(L*W*H):
-
3.6m x 2.2m x 2.1m
-
Weight:
-
1800kgs
-
Model:
-
1325 Stone cnc machine
-
X Y Z working area:
-
1300*2500x 400mm
-
Max. Speed:
-
12m/min
-
Max. Working speed:
-
5-6m/min
-
Clamping mode:
-
Normal Clamping
-
Spindle power:
-
5.5kw Water Cooling Spindle
-
Control system:
-
NC Studio
-
Application:
-
Stone Industrial
-
Driving system:
-
Leadshine Drivers MA 860H
-
Certification:
-
CE
Quick Details
-
Type:
-
Stone Engraving Machine
-
Power:
-
5.5KW
-
Cutting thickness (max):
-
100mm
-
Production Capacity:
-
11KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Guangjie
-
Voltage:
-
380V/220V, 220V/380V
-
Dimension(L*W*H):
-
3.6m x 2.2m x 2.1m
-
Weight:
-
1800kgs
-
Model:
-
1325 Stone cnc machine
-
X Y Z working area:
-
1300*2500x 400mm
-
Max. Speed:
-
12m/min
-
Max. Working speed:
-
5-6m/min
-
Clamping mode:
-
Normal Clamping
-
Spindle power:
-
5.5kw Water Cooling Spindle
-
Control system:
-
NC Studio
-
Application:
-
Stone Industrial
-
Driving system:
-
Leadshine Drivers MA 860H
-
Certification:
-
CE

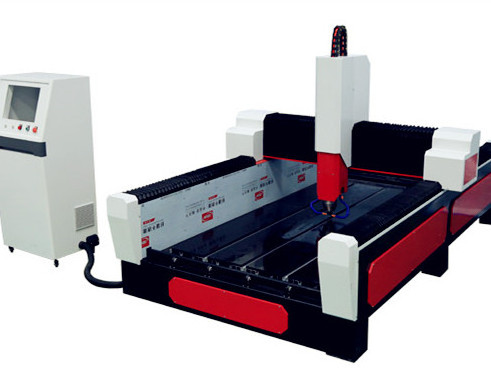

1325 CNC 3D granite/marble/stone engraving machine
Specification:
|
1 |
Working area |
1300*2500*400mm |
|
2 |
Spindle |
5.5KW water cooling spindle |
|
Machine structure |
8mm thickness welded steel tube,cast iron vertical shafts and steel gantry |
|
|
4 |
Spindle speed |
0-24000rpm/min |
|
5 |
Guide rail |
TRV square guide rail |
|
6 |
Driving method |
X,Y axis by helical gear rack,Z axis by TBI ball screw |
|
7 |
Motors and drivers |
Stepper motor450B,Leadshine drivers MA860H |
|
8 |
Control system |
Ncstudio |
|
9 |
Invert |
Fuling invert |
|
10 |
Max.idling speed |
25m/min |
|
11 |
Max.working speed |
12m/min |
|
12 |
Machine structure |
8mm thickness welded steel tube, cast iron vertical shafts and steel gantry |
|
13 |
Working voltage |
220-380V/50HZ |
|
14 |
Control cabinet |
Independent |
1.Machine packaged in fumigation-free wooden case.
2. Inner package: Stretchy film and plastic film for humidity and dustproof.
We can package according to your requests.
3. Delivery:Within 7 days after the deposit
Delivery Detail:
By sea or according to customer requirement.
We can offer FOB/CFR/CIF services. Shipped in 7-15 working days after received your deposit.
1.We test equipment at least 3-5 days to ensure our users to receive perfect machines.
2. We guarantee that every part of machine is totally new and clean before delivery.
3. We supply 24 hours after sale service from our Service Department.
4.W e can send technical person to help customer install machine on your site .
5.We provide many online service such as Skype, MSN, QQ, Whats A pp, Wechat, Email, and Vide o call
6. We provide CD Video to show how to operate the cnc router
