Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZLTECH
-
Model Number:
-
ZLLG45ASM200+ZLAC706-CAN
-
Torque:
-
5N.M
-
Outside diameter with tyre:
-
121mm
-
Shaft type:
-
double shaft
-
Power type:
-
DC motor
-
Motor Weight:
-
2.9KG
-
Motor kit weight:
-
3.1KG
-
Certification:
-
CE, FCC, RoHS, ce, RoHS, ISO9001
-
Max. torque:
-
10N.m
-
Max. rated speed:
-
customize
-
Protection mode:
-
IP54
Quick Details
-
Speed(RPM):
-
300RPM
-
Continuous Current(A):
-
5~15A
-
Efficiency:
-
Ie 3
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZLTECH
-
Model Number:
-
ZLLG45ASM200+ZLAC706-CAN
-
Torque:
-
5N.M
-
Outside diameter with tyre:
-
121mm
-
Shaft type:
-
double shaft
-
Power type:
-
DC motor
-
Motor Weight:
-
2.9KG
-
Motor kit weight:
-
3.1KG
-
Certification:
-
CE, FCC, RoHS, ce, RoHS, ISO9001
-
Max. torque:
-
10N.m
-
Max. rated speed:
-
customize
-
Protection mode:
-
IP54

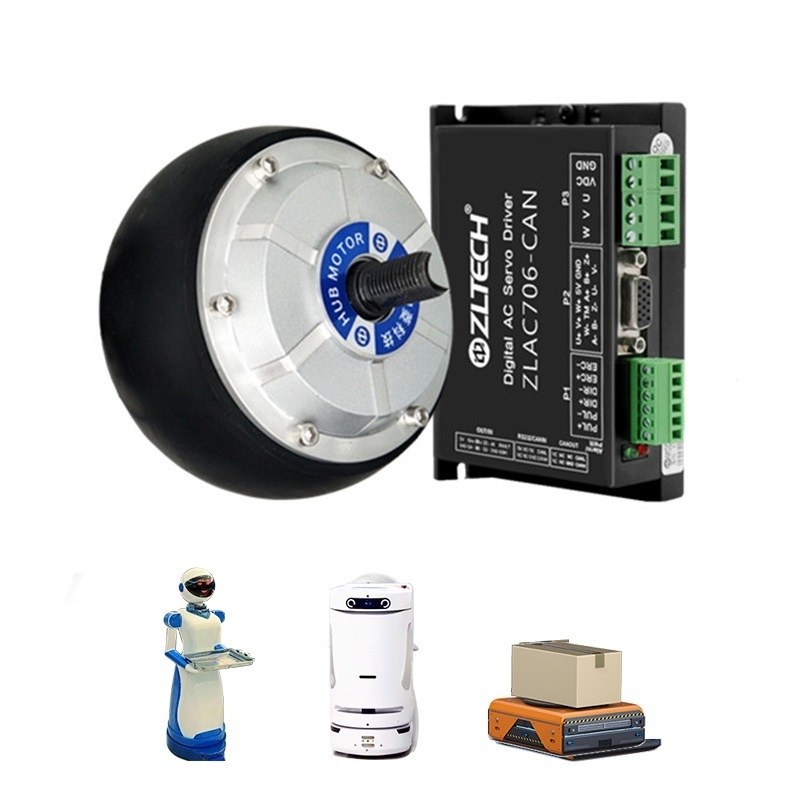

ZLTECH electric hub motor kit for europe built-in 1024 encoder 24V hub motor wheelchair kit for push electric car
Hub motor feature:
|
O utside diameter |
4.5 inch |
|
Voltage |
24v 36v 48v, customize |
|
Encoder |
1024 line Incremental Photoelectric Encoder |
|
Efficiency |
≥83% |
|
Number of poles |
10 pole s |
|
Carrying weight |
150KG/set |
|
Shaft connection |
thread |
|
Brake method |
electric brake |
|
Excitation mode |
permanent magnet type |
|
Tyre form |
no pattern |
|
Matching driver |
ZLAC706/ZLAC706-CAN/ZLAC706-RC |
|
Environment temperature |
-10 ~ +40 degree centigrade |
Driver feature:
|
Model |
ZLAC706 |
ZLAC706-CAN |
ZLAC706-RC |
|
Communication mode |
RS232, pulse control |
RS232, CAN, pulse control |
RS232, CAN, RS485, pulse control |
|
Repeat tracking error |
1Pulse |
||
|
Speed control accuracy |
2RPM |
||
|
Receiving frequency |
600khz |
||
|
Positioning accuracy |
1/10000 |
||
|
No-load acceleration |
200RPM/MS |
||
|
Storage Temperature |
-20~80 Celsius |
||
|
Working voltage(V) |
24V-60VDC(24~36VDC for 200W Motor; 24~60VDC for 400W) |
||
|
Control mode |
External pulse, analog quantity, PC communication, support position, speed and torque modes |
||
|
Protect function |
under-voltage, over-voltage, overload, over-current, encoder abnormality; with alarm output |
||
|
Environment |
Avoid the intrusion of dust, corrosive gases, conductive objects, liquids and flammable materials, maintain good heat dissipation conditions |
||
Our hub servo motor advantage:
-
Self R & D , have own patent and great market competitiveness
- Built-in high precision encoder 12-21 bits optional, also can be customized, electric brake, high load carrying etc
- Simple structure, easy installation and high cost performance
- High precision, high power density , low noise
-
The motor and the outer tyre are integrated, beautiful design
- 4-15 inch optional, power: 50-2KW optional, a ccept OEM/OEM for all models
More hub servo motor pictures:
Dimension:
Comparison:
Common motor Hub motor
VS
Complicated installation and tire easy to wear Easy install, 4 omnidirectional wheels, silicone body
More robot hub motor kit :
My friend, click here and learn details about different size of ZLTECH robot AGV hub servo motor.
Application: Service Robot, AGV
Bulk production
Patent
P ackage: c arton with foam, quantity per carton will depend on the hub motor size.
Shipping: goods will be deliveried by air(EMS, DHL, FedEx,TNT etc), by train or by boat according to your requirements.
