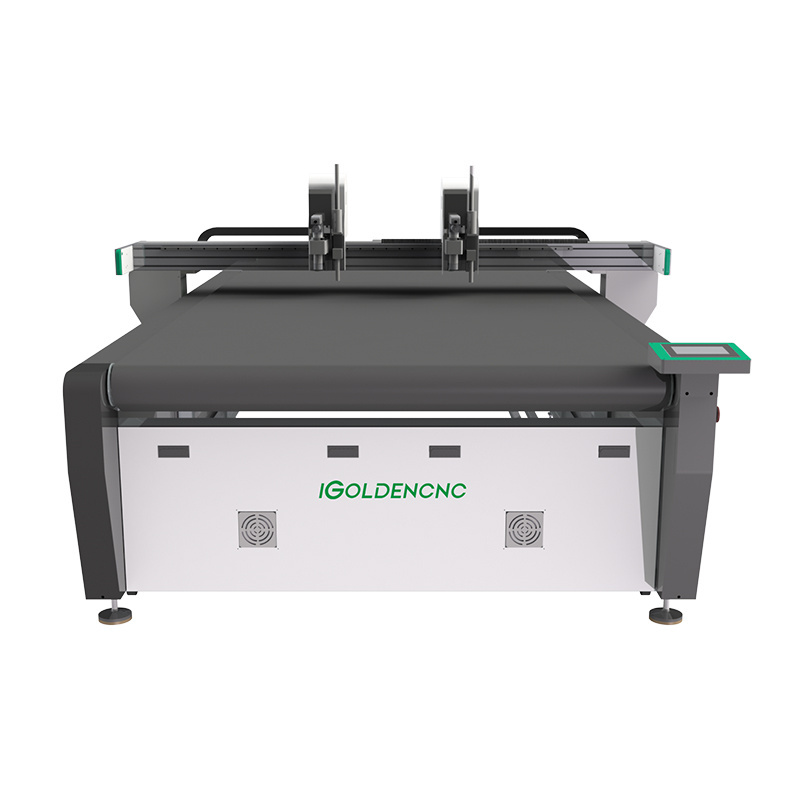

flatbed plotter cutting machine pcv carton car film cutting machine with two cutter tool

flatbed plotter cutting machine pcv carton car film cutting machine with two cutter tool

FOB Reference Price: Get Latest Price

≥1 Sets

US $14399.1

≥5 Sets

US $8999.1

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimension(L*W*H):: 1600*2500*1000mm

Year:: 2024

Power (kW):: 12 kW

Weight (KG):: 900 KG

Control System:: XDW system

Machine Body:: T-type Welding Structure

Gantry:: Steel Structure

Worktable:: Vacuum Suction with T-slot Table

Spindle:: HQD 9.0kw Air Cooling Spindle

Tool changer:: 12 straight line change knives

Custom Configuration:: Press wheel, vibrating knife and inclined knife

Speed Speed:: 18000rpm

Guide Rails:: Taiwan HIWIN

Vacuum pump:: 7.5kw

Quick Details

Place of Origin:: shandong

Brand Name:: IGOKLDENCNC

Voltage:: 380V/220V

Dimension(L*W*H):: 1600*2500*1000mm

Year:: 2024

Power (kW):: 12 kW

Weight (KG):: 900 KG

Control System:: XDW system

Machine Body:: T-type Welding Structure

Gantry:: Steel Structure

Worktable:: Vacuum Suction with T-slot Table

Spindle:: HQD 9.0kw Air Cooling Spindle

Tool changer:: 12 straight line change knives

Custom Configuration:: Press wheel, vibrating knife and inclined knife

Speed Speed:: 18000rpm

Guide Rails:: Taiwan HIWIN

Vacuum pump:: 7.5kw

Products Description

Oscillating knife cutting machine feature

1.High speed and quality. 5-8 times faster than laser cutting machine.

2. Smooth cutting without burrs, no pollution and no noise.

3. High precision. adopts Japan YASKAWA servo motor and drive.

4. For cutting different materials 8 types of heads are available.

Cutting Tool Options

Vibrating knife head

For different cutting materials, suitable cutter heads can be selected for intelligent cutting

Control system

Can optional Zhongrui / Rui Control system, The system is more intelligent and flexible

Vacuum table

Honeycomb aluminum platform + high quality felt ,better cutting effect.

Red light positioning

Red light positioning cuts more accurately and with less error

Taiwan Guide

High precision and stiffness, low noise, easy assembly,touch anti-collision bar

Applications and Samples

Product Parameters

Model	iGK-1625
Working size	1600 (W)*2500mm (L)
Avilable Match Cutting Tool	Oscillating Cutting Tool/ Driven Rotary Cutting Tool/ Creasing Wheel/ Kiss Cutting Tool/ Pneumatic Cutting Tool/ Milling Tool etc...
Applicable Materials	Fabric/ Cardboard/ Paper/ Mats/ PVC/ EVA/ Leather/ Acrylic/ Foam/ XPE, etc
Tool	Vibrating Knife
Cutting speed	200-2600mm/s
Translatory velocity	500-2800mm/s
Cutting thickness	0.1-40mm(The actual materials shall prevail)
Cutting accuracy	0.05mm( The actual materials shall prevail)
Operating system	Zhongrui
Vacuum pump	9KW vacuum pump
Driver part	TAIWAN straight square rail and rack
Miscellaneous function	Cross red light location
Voltage	AC220V/380V,50HZ
Machine Body	Welding high strength integrated bed
Platform adsorption material	4mm felt
