1. Experience - More than ten years of experience specialized in off-grid power industry, proficient in technology.
2. R&D Team - Experienced R&D team with OEM ODM customized service.
3. Quality - From raw materials to production and to testing, a strict quality management and control system, making sure the trustworthy products.
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
25 years
-
Brand Name:
-
YINEN
-
Model Number:
-
YN-MY5M72-195/ 200/ 205/ 210/ 215
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1580*808*35mm (62.20*31.81*1.38 inch)
-

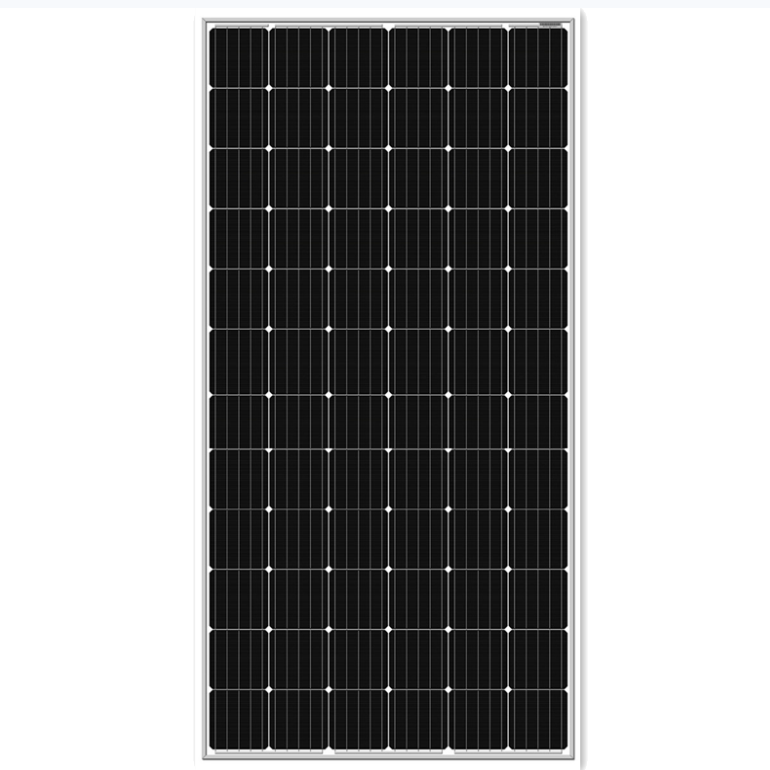

Product name:
-
Monocrystalline Silicon Solar Panel
-
Cell type:
-
Mono PERC 125mmx125mm
-
Weight:
-
15.1kg(33.29 lbs)
-
Front glass:
-
3.2mm tempered glass anti-reflection coaring, high transmission
-
Frame:
-
Anodized aluminium alloy
-
Junction box:
-
IP67 rated
-
Output cables:
-
TUV 1*4.0m㎡, length 900mm or customized length
-
Operating temperature::
-
-40℃ ~ +85℃
-
Max system voltage:
-
1000VDC(IEC)
-
nominal operating cell temperature(NOCT):
-
45±2/℃
-
Certificate:
-
CE, TUV, CQC, ISO
Quick Details
-
Cell size:
-
125mmx125mm
-
Type:
-
PERC
-
Panel Efficiency:
-
16.8%
-
Warranty:
-
25 years
-
Brand Name:
-
YINEN
-
Model Number:
-
YN-MY5M72-195/ 200/ 205/ 210/ 215
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1580*808*35mm (62.20*31.81*1.38 inch)
-
Product name:
-
Monocrystalline Silicon Solar Panel
-
Cell type:
-
Mono PERC 125mmx125mm
-
Weight:
-
15.1kg(33.29 lbs)
-
Front glass:
-
3.2mm tempered glass anti-reflection coaring, high transmission
-
Frame:
-
Anodized aluminium alloy
-
Junction box:
-
IP67 rated
-
Output cables:
-
TUV 1*4.0m㎡, length 900mm or customized length
-
Operating temperature::
-
-40℃ ~ +85℃
-
Max system voltage:
-
1000VDC(IEC)
-
nominal operating cell temperature(NOCT):
-
45±2/℃
-
Certificate:
-
CE, TUV, CQC, ISO
Product Description
Specification
|
item
|
value
|
|
Place of Origin
|
China
|
|
|
Anhui
|
|
Brand Name
|
YINEN
|
|
Model Number
|
YN-MY5M72-195/ 200/ 205/ 210/ 215
|
|
Cell size
|
125mm*125mm
|
|
Type
|
PERC
|
|
Panel Dimensions
|
1580*808*35mm (62.20*31.81*1.38 inch)
|
|
Panel Efficiency
|
16.80%
|
|
Certificate
|
CE, TUV, CQC, ISO
|
|
Product name
|
Monocrystalline Silicon Solar Panel
|
|
Cell type
|
Mono PERC 125mm*125mm
|
|
Weight
|
15.1kg(33.29 lbs)
|
|
Front glass
|
3.2mm, anti-reflection coaring, high transmission, low iron, tempered glass
|
|
Frame
|
Anodized aluminium alloy
|
|
Junction box
|
IP67 rated
|
|
Output cables
|
TUV 1*4.0m㎡, length 900mm or customized length
|
|
Operating temperature:
|
-40℃ ~ +85℃
|
|
Max system voltage
|
1000VDC(IEC)
|
Production Line
Packaging & Logistics
Why Choose Us
Anhui Yinen Technology Co., Ltd., as one of the key invited investments by Anqing municipal government, is located in the national Economical-tech Development Zone of Anqing City, the well-known hometown of Huangmei Opera worldwide.
We are a leading manufacturer specialized in solar, wind and other renewable energy products. We have a complete set of R&D, production, sales and service systems; and produce off-grid pure sine wave inverters, solar charge controllers, and wind-solar hybrid charge controllers. We also provide solar power system, designs for solar street-light system, and service for production and installation.
Since our establishment, we Yinen Technology have acquired the awards of the national high-tech enterprises and Anhui provincial software enterprises. By having won more than thirty patents of Intellectual Property and EU certificates of CE and RoHS, we have also registered the Trademark “YINEN” (Registration No. 57674929), to become an influential enterprise with its brand force in the green energy industry.
We believe and also hold innovation as the driving force for our long-lasting development. The members of our R&D team are a group of well-educated and highly-qualified professionals with rich R&D experience in the renewable energy power industry and a strong sense of independent innovation. They have also gained a wealth of experience in a large number of major governmental projects.
We Yinen people, take “integrity, innovation, dedication and cooperation” as the spirit of our company, to provide our customers with high-quality system design, installation and solutions for technical transformation and improvement. We also keep enhancing the satisfaction for the public and our customers, and striving for a greater contribution to the society as a world famous enterprise in the new energy industry.
4. Certification - CE, RoHS, ISO9001 and domestic patent and design certificates.
5. Service - 7*24 after sales service and a lifelong technical support.
Certifications
FAQ
1. Q: Are you a factory or trading company?
A: We are exclusive distributor of Morningstar since 2009 and gained Partner Awards for years.
2. Q: What kind of payment do you accept?
A:We accept all payment terms and you are also welcomed to make an order online through Alibaba.
3. Q: Do you have any MOQ for OEM?
A: We have no quantity limit for our regular series product. But for OEM or any other type of customization, our MOQ is 100pcs.
4. Q: May I take one piece or several pieces of samples to test before placing an order ?
A: Yes,we actually very much encourage new customers to start from samples. Customers who wanna have samples could just pay for it/them and the express freight if customers don't have their own express user account.
5. Q: How long can you offer the samples?
A: Two days after the deposit received.
6. Q: What is your lead-time for my order?
A: The lead-time is decided by the quantity of your order, normally ranging from 5-35 days from 50pcs to 1000pcs.
7. Q: What's your guarantee?
A: Our standard regular guarantee is 12-month as the norm requires, but we could also provide customers who need a particular prolonged guarantee much longer warranty increased from 18-month to 5-year by selecting much refined material with much stricter and exquisite production to ensure it.
