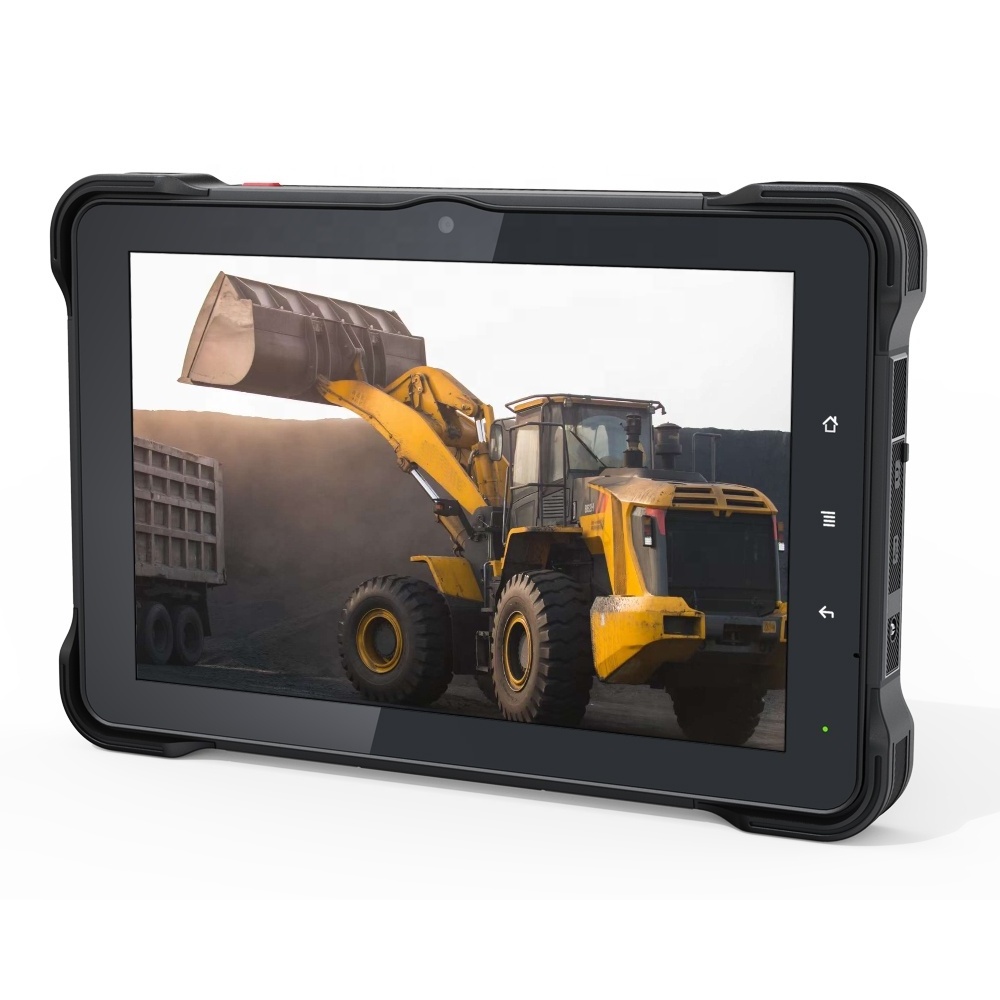

10.1 inch IPS Panel, 1280*800 resolution and 1000nits higher brightness, makes VT-10 tablet sunlight visible with better end user experience, especially for out-door used.
- Product Details
- {{item.text}}
Quick Details
-
Operating System:
-
Android 9.0
-
Type:
-
Tablet PC
-
Place of Origin:
-
China
-
Brand Name:
-
3Rtablet
-
Model Number:
-
VT-10 Pro
-
Product name:
-
Outdoor Rugged Tablet
-
RAM:
-
2GB LPDDR3
-
Storage:
-
16 GB eMMC
-
BT:
-
4.2 BLE
-
WLAN:
-
IEEE 802.11 a/b/g/n/ac; 2.4GHz/5GHz
-
Mobile Broadband:
-
LTE, HSPA+, UMTS, EDGE, GPRS, GSM (Data and Voice)
-
GNSS:
-
GPS/GLONASS
Quick Details
-
Screen Size:
-
10.1"
-
Memory Capacity:
-
2gb
-
Display resolution:
-
1280x800
-
Operating System:
-
Android 9.0
-
Type:
-
Tablet PC
-
Place of Origin:
-
China
-
Brand Name:
-
3Rtablet
-
Model Number:
-
VT-10 Pro
-
Product name:
-
Outdoor Rugged Tablet
-
RAM:
-
2GB LPDDR3
-
Storage:
-
16 GB eMMC
-
BT:
-
4.2 BLE
-
WLAN:
-
IEEE 802.11 a/b/g/n/ac; 2.4GHz/5GHz
-
Mobile Broadband:
-
LTE, HSPA+, UMTS, EDGE, GPRS, GSM (Data and Voice)
-
GNSS:
-
GPS/GLONASS
1000nits high brightness IPS Panel
Product Description
IP67 Rated
VT-10 is certified by IP67 rating, which is to soak for 30 minutes in a water depth of 1 meter. It can also work normally in harsh environments.
The rugged design have improved the reliability and stability of the tablets, and extend the service life, thereby reducing hardware costs.
High-precision GPS positioning
VT-10 tablet supports high-precision GPS positioning system. It can play a great role in agricultural intensive farming and fleet management.
A positioning chip with good performance is necessary for MDT.
8000mAh Removable battery
The tablet built in 8000mAh Li-on replaceable battery, which can be quickly installed and removed, it can help you improve maintain efficiency and reduce after-sales cost. Make a better user experience.
Wide range of operating temperature support
VT-10 support to work in wide range of operating temperature for outdoor environment, whether it
is fleet management or
agricultural machinery,
high and low working temperature problems
will be encountered. VT-10 supports to work in
the temperature
range of -10°C ~65°C
with reliable performance, the CPU processor
will not slow down.
Fall protection and Drop Resistance
MIL-STD-810G, anti- vibration, shocks and
drop resistance. It supports a height of
1.2m drop. In the event of an accidental
fall, it can avoid damage to the machine
and increase its service life.
Specification
|
Model Number
|
VT-10 Pro
|
|
|
CPU
|
Qualcomm Cortex-A53 64-bit Octa-core Processor， 1.8GHz
|
|
|
GPU
|
Adreno 506
|
|
|
Operating System
|
Android 9.0
|
|
|
RAM
|
2GB LPDDR3 (Default)
|
|
|
Storage
|
16 GB eMMC (Default)
|
|
|
Storage Expansion
|
Micro SD 128 GB
|
|
|
LCD
|
10inch HD (1280 x 800), 1000cd/m² higher brightness, Sunlight readable
|
|
|
Touchscreen
|
Multi touch capacitive touchscreen supporting glove and rain mode
|
|
|
Camera
|
Front:5 MP
Rear: 16 MP with LED light
|
|
|
BT
|
4.2 BLE
|
|
|
WLAN
|
IEEE 802.11 a/b/g/n/ac; 2.4GHz/5GHz
|
|
|
Mobile Broadband
|
LTE, HSPA+, UMTS, EDGE, GPRS, GSM (Data and Voice)
|
|
|
GNSS
|
GPS/GLONASS
|
|
|
Sound
|
Build-in speaker 2W, 85dB
Internal microphones
|
|
|
Interfaces
|
Docking connector x1(POGO-PIN x24)
3.5mm headphone jack, Headset jack x1
Type-C, Compliant with USB 3.0 (For data transfer;support OTG)
|
|
|
Sensors
|
Acceleration sensors, ambient light sensor,Gyroscope, compass Acceleration sensors, ambient light sensor
|
|
|
Power
|
DC8-36V (ISO 7637-II compliant)
Battery: 3.7V,8000mAh Li-ion (Replaceable) Battery: User replaceable Li-ion 5000 mAh with warm swap function Battery charging time:about 4.5hours Battery operating time: about 4.5hours (Typical) |
|
|
Physical Dimensions (WxDxH)
|
277×185×31.6mm
|
|
|
Weight
|
1357g(2.99lb)
|
|
|
Environment
|
Gravity drop resistance test: 150cm
Vibration test: MIL-STD-810G Dust resistance test: IP6x Water resistance test: IPx7 Operating temperature: -10° C ~ 65°C(14°F-149°F) charging temperature: 0° C ~ 55°C (32°F-131°F) Storage temperature: -20° C ~70° C |
|
|
Interface(Docking Station)
|
|
|
|
USB2.0 (Type-A)
|
x1
|
|
|
RS232
|
x2
|
|
|
ACC
|
x1
|
|
|
Power
|
x1
|
|
|
GPIO
|
Input x2, Output x2 (Default)
|
|
