Male Sperm Analyzer Human Body Health Test Machine

Male Sperm Analyzer Human Body Health Test Machine

FOB Reference Price: Get Latest Price

≥1 Pieces

US $2100

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: RSA-720

Place of Origin:: Guangdong, China

Group number of collected images:: 1-15 groups

The analysis time:: 1-5 seconds or longer

The range of detection speed:: 0-180um/s

The frame number of picture:: 0-75

Maximum of the detected sperms:: 1000

Resolution of particle diameter:: 0-150um/s

Quick Details

Warranty:: 1 Year

After-sale Service:: Online technical support

Brand Name:: Raecho

Model Number:: RSA-720

Place of Origin:: Guangdong, China

Group number of collected images:: 1-15 groups

The analysis time:: 1-5 seconds or longer

The range of detection speed:: 0-180um/s

The frame number of picture:: 0-75

Maximum of the detected sperms:: 1000

Resolution of particle diameter:: 0-150um/s

Order with Trade Assurance

Product Description

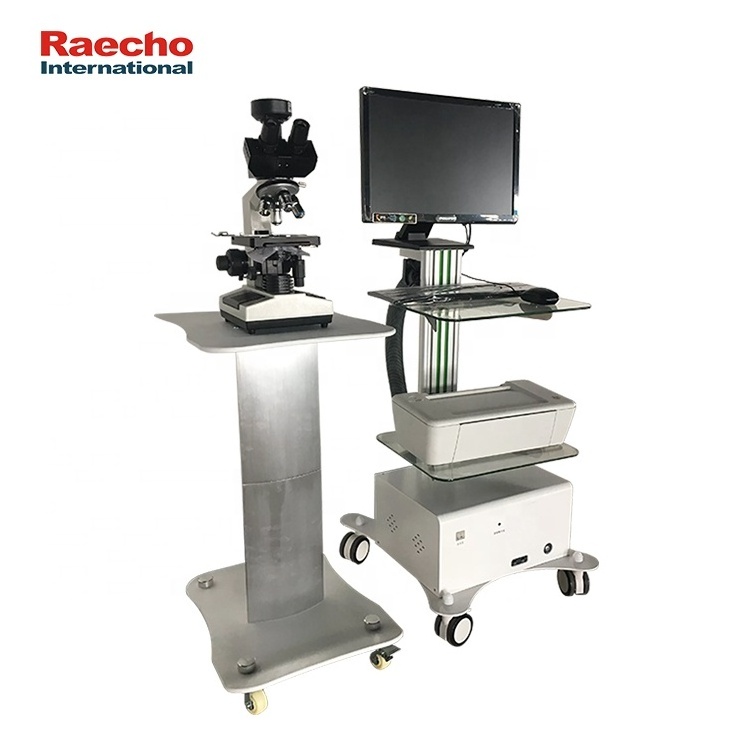

Apparatus Introduction

It's a kind of high-tech intelligent product used in modern reproductive medicine with the combination of computer image
processing technology and advanced artificial intelligence technology. It can be used for automatic identification of sperm and automatic tracking of sperm movement, finish the analysis for a number of parameters in conformity with the WHO international standards fast and take comprehensive quantitative analysis of sperm activity and static characteristics. It is suitable for clinical semen detection, providing an important scientific basis for male fertility.

Apparatus Features

1. Can filter out all kinds of impurities which are different from sperm to ensure the accuracy of test.

2. Scatheless detection can ensure the sperm's natural motion state and monolayer sampling.

3. Advanced morphological analysis software, clearly and intuitively colorful picture. Colorful picture-close shot.

4. All the data and dynamic static images of sperm examination for patients are stored with digital form. It can be used for variedly querying, modifying, adding up, and printing inspection reports, and can also share resource within the networking freely.

Detection Items

1. Sperms density, survival rate of sperms, the movement locus of sperms, and distribution curve of sperms movement.

2. Average speed, total number of the sperms, total numbers of motile sperms, survival rate of the sperms in the curvilinear motion of sperms.
3. Average speed, total number of the sperms, total numbers of motile sperms, survival rate of the sperms in the rectilinear
motion of the sperms.
4. Average speed, total number of the sperms, total numbers of motile sperms, survival rate of the sperms in the average path motion of the sperms.
5. Graded speed of sperms motion: the survival rate of A rapid motion forward, B slow motion forward, C non travel forward, D hyperslow or motionless of the sperms.
6. The side-way amplitude of sperms, sperms wing, whipping frequency of sperms, the rate of rectilinear motion, total number.
7. linear speed, average speed of motion, the sperms' number of linear motion.
8. Morphology Analysis-Sperm detailed shape and so on.

Technical Parameters
Maximum of the detected sperms	1000
The range of detection speed	0-180µm/s
The frame number of picture	0-75
Resolution of particle diameter	0-150µm/s
The analysis time	1-5 seconds or longer
Group number of collected images	1-15 groups
Applicable magnification of microscope objective lens	10x.20x.25x.40x
The displayed content of sperm detection system is no less than	1) distribution curve of static sperms, 2) the features data of semen and statistical analysis data from all the main functions, 3) sperm dynamic trajectory curve, 4) display various sperms motion speed and energy isarithmic map of sperms, 5) case information for management such as patients’ name
The output content from sperms detection system is no less than	1) the main technical data of sperms, 2) sperm dynamic trajectory curve, 3) analysis and determinant histogram 4) case information for management such as patients’ name

Subjective Examination Items

1. Other ingredient of semen-- epithelium, hematid, leucocyte;

2. Number of teratosperm—number of head teratosperm, number of tail teratosperm, number of body teratosperm, number of mixed teratosperm; Rate of teratosperm;
3. Sperm appearance, viscosity of sperm;

Sperm volume, dilution ratio; Scent of sperm, sperm extraction method; Sperm PH value, date and time of sperm extraction;
4. Continence time, basic data of patient; Sperm Counting Plate (Can be choose)

System Features

1. The actual clinical demand of grass roots is taken into consideration during the design process. Simple and rational structure, stable property and friendly human-computer interface for intuitive and easy use; the operators can get hold of operation method without being trained. The manual inspection adopts quantitative criteria that can reduce the knowledge pressure of inspectors, which is the epic change in the inspection method.

2. High intelligence, automatic inspection, analysis and scaling can guarantee the accuracy of test data under any enlargement ratio and provide the comprehensive test data for sperm quality objectively, accurately and scientifically.

3. Overall and intuitive data image testing and analysis, rich test data and overall analysis data; 34 items of semen index can be detected; 3 kinds of speed distribution statistical chart; high detecting speed and the detection and analysis could be finished in no time, which can greatly reduce the labor intensity of workers. Pollution can be reduced efficiently; strong operability; counting function on screen display which can display the test data in real time; the repeated verification of test result is clear; neat design of printed report forms can make the diagnostic result easy to check out.

4. With the database function; the test result is stored in the system hard disk, which can be inquired, adjusted and printed;
advanced method is provided for clinical science study and teaching; strong extended function which can apply to analysis and test on biological properties such as corpuscle or colon bacillus etc, as well as special industries such as animal or animal husbandry.
