Quick Details
-
Brand Name:
-
KINGISO
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1760x1220x2020mm
-
Weight (KG):
-
1100
-
Power (kW):
-
1.69
-
Saw blade Thickness:
-
8mm
-
Tooth pitch:
-
7-100mm
-
Circular saw outside diameter:
-
80-815mm
-
Bore hole diameter:
-
10-220mm
-
Hook angle of grinding:
-
-20 degree-40degree
-
The rear angle of grinding:
-
6-45 degree
-
Left-right pitch of tooth:
-
Tooth tip :45degree Tooth face:45degree
-
Range of Grinding Cycle:
-
0-30mm
-
Wheel speed:
-
6000 r/min
-
The Speed of Work:
-
24 teeth/min
Quick Details
-
Wheel Size(mm):
-
8
-
Year:
-
This Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KINGISO
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1760x1220x2020mm
-
Weight (KG):
-
1100
-
Power (kW):
-
1.69
-
Saw blade Thickness:
-
8mm
-
Tooth pitch:
-
7-100mm
-
Circular saw outside diameter:
-
80-815mm
-
Bore hole diameter:
-
10-220mm
-
Hook angle of grinding:
-
-20 degree-40degree
-
The rear angle of grinding:
-
6-45 degree
-
Left-right pitch of tooth:
-
Tooth tip :45degree Tooth face:45degree
-
Range of Grinding Cycle:
-
0-30mm
-
Wheel speed:
-
6000 r/min
-
The Speed of Work:
-
24 teeth/min
|
|
|
|
|

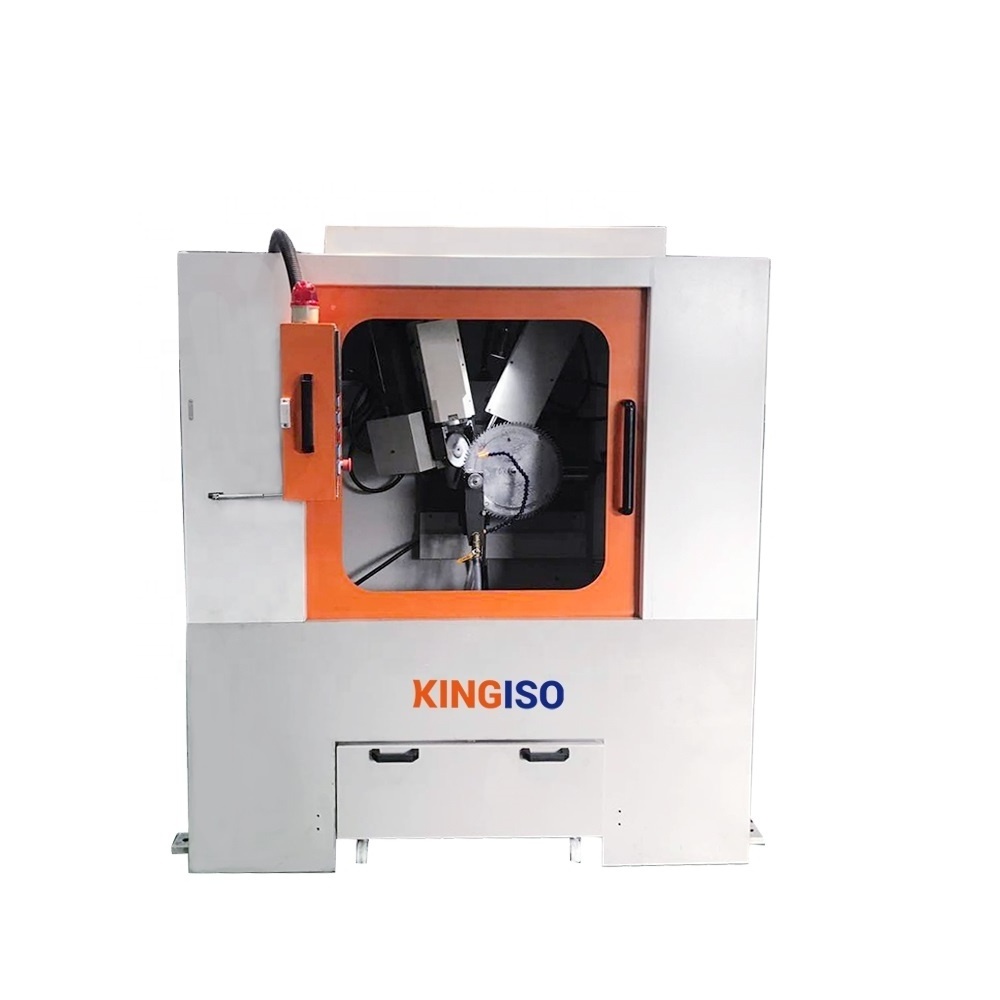

band saw blade grinding machine band saw blade sharpener
Application :
Band saw blade sharpening machine is designed for sharpening blade with different width and hook teeth with different size of pitch .Select appropriate grinding wheel with corresponding angle,according to the hardness of different panels,to grind out a blade with matched teeth.
F eatures and A dvantage:
1.Automatic,easy and convenient operation,easy-to-understand,without any grinding workers.
2.Diamond grinding wheel,use grinding oil cooling,saw teeth is sharp and reliable.
Parameter:
| Tooth pitch | 7-100mm | |||
| Circular saw outside diameter | 80-815mm | |||
| Bore hole diameter | 10-220mm | |||
| Hook angle of grinding | -20 degree-40degree | |||
| Tooth face angle of grinding | -15degree+15degree | |||
| The rear angle of grinding | 6-45 degree | |||
| Left-right pitch of tooth | Tooth tip :45degree Tooth face:45degree | |||
| Range of Grinding Cycle | 0-30mm | |||
| Wheel speed | 6000 r/min | |||
| The Speed of Work | 24 teeth/min | |||
| Total Power | 1.69kw | |||
| Cooling Device | 25L/min | |||
| Grinding wheel outside dia. | 32mm-125mm | |||
| Net weight | 960kg | |||
| Gorss weight | 1100kg | |||
| Overall size | 1650*1350*1830mm | |||
| Packing size | 1760*1220*2020mm | |||
| Voltage | 380v,50hz,3phase | |||
1.Delivery:
We can guarantee delivery on time.
We also can sign on-time delivery contracts. If we can’t deliver on time, we will give the product a corresponding discount.
2.Package:
We will take care of your machinery packages well like picture show.
Our workers will make sure your machine clean before package.
We will add stretchy film for the whole machine and spare parts for delicate protection.
We will make export standard strong Wooden box case package as your request.
3.Guarantee:
The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem ,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.
4.Technical support:
Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.
5. After sales services:
Our machine is installed and tested well before delivery. You can operate the machine immediately after receiving machine.
If you don't know how to use the machine, we will offer you free training until you can use machine freely. And If there is still have any question, please contact us by Email, Skype, Wechat, WhatsApp, Phone and Trade Manager online service at any time.
