Quick Details
-
Voltage:
-
/
-
Disc Dia.:
-
/
-
No Load Speed:
-
/
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
/
-
Model Number:
-
DOWN DRAFT BDE-1
-
Warranty:
-
1year
-
Inside Size:
-
6900*3900*2650mm
-
Outside Size:
-
7000*5200*3400mm(L*W*H)
-
Entrance Door:
-
3 leafs sheet metal doors, size is 3,000x2,600mm(W*H)
-
Personnel Door:
-
1 leafs ,size is 600x1800mm(W*H)
-
Cabin:
-
EPS wall panels with concave type construction, the thickness is 50mm
Quick Details
-
Power:
-
11KW
-
External Size:
-
7000*5200*3400mm
-
Internal Size:
-
6900*3900*2650mm
-
Voltage:
-
/
-
Disc Dia.:
-
/
-
No Load Speed:
-
/
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
/
-
Model Number:
-
DOWN DRAFT BDE-1
-
Warranty:
-
1year
-
Inside Size:
-
6900*3900*2650mm
-
Outside Size:
-
7000*5200*3400mm(L*W*H)
-
Entrance Door:
-
3 leafs sheet metal doors, size is 3,000x2,600mm(W*H)
-
Personnel Door:
-
1 leafs ,size is 600x1800mm(W*H)
-
Cabin:
-
EPS wall panels with concave type construction, the thickness is 50mm
|

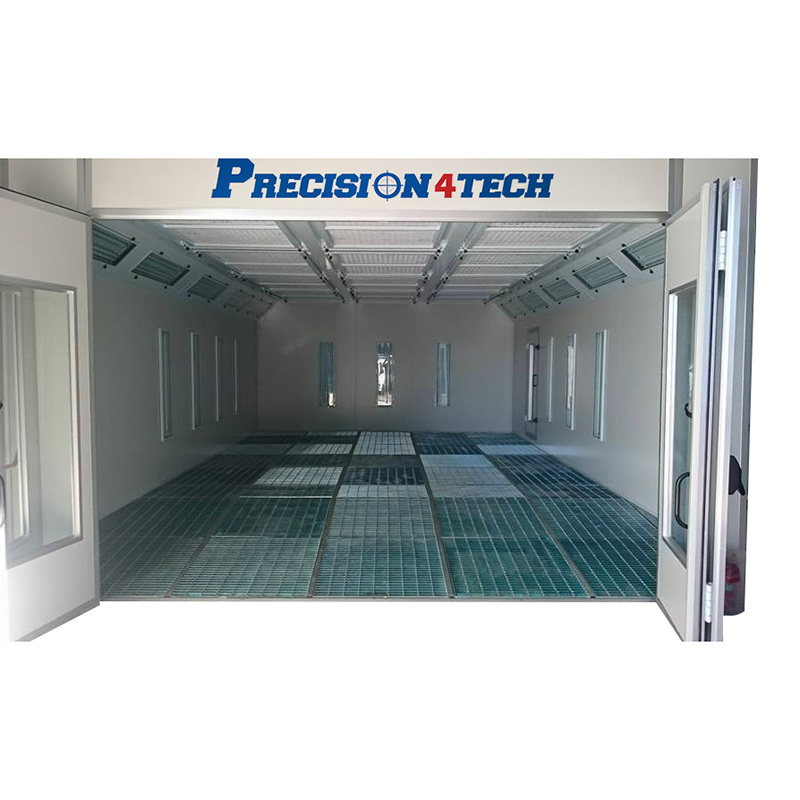

MODEL
|
DOWN DRAFT BDE-1
Water based painting booth |
UPDATE
|
2020/11/26
|
||
|
Inside Size
|
6900×3900×2650mm（L×W×H）
|
Outside Size
|
7000×5200×3400mm（L×W×H）
|
||
|
Entrance Door
|
3 leafs sheet metal doors, size is 3,000x2,600mm(WxH)
|
|
|
||
|
Personnel Door
|
1 leafs ,size is 600x1800mm(WxH)
|
|
|
||
|
Cabin
|
EPS wall panels with concave type construction, the thickness is 50mm
|
|
|
||
|
Basement
|
steel structure base height is 300mm;
improved two rows of grilles 30*5 belt steel, three rows of diamond plates, two ramps 280×1800mm（H×L） |
|
|
||
|
Intake Air Units
|
2 sets intake fan model: YDW; single power 4kw capacity:20000m³/h
2 sets water base fan model: YDW 0.5kw Water paint nozzle [stainless steel]: 40pcs |
|
|
||
|
Outlet Air units
|
1 set outlet fan, model: YDW, single power 7.5KW capacity: 20000m³/h
|
|
|
||
|
Fan Cabinet
|
Square tube welded frame, galvanized sheet sprayed skin, Electric damper
|
|
|
||
|
Heating System
|
stainless steel heat exchanger,1 set RIELLO G10 diesel burner, heating capacity is 180000kcal/h
|
|
|
||
|
Filtering System
|
Pre-Filter Effectively capture dust particles larger than 10um
Ceiling filter. Efficiently capture dust particles larger than 4um with a capture rate of ≥98% |
|
|
||
|
lighting System
|
Ceiling lights :24pcsx16w LED lamp ≥800Lux
Side vertical panel lights: 2x4pcsx48w, 2 rows, LED lamp ≥800Lux |
|
|
||
|
Control System |
Electric control box: Leakage protection, painting, baking varnish, lighting, emergency stop switch, timer, temperature control
etc. |
|
|
||
|
Power supply
|
380v/3phase/50HZ
|
|
|
||
|
Maximum Baking
temperature |
60℃
|
|
|
||
|
Total power
|
11KW
|
|
|
||
Started as machinery manufacture in 2003, Precision focused on manufacturing for auto lift and auto body collision repair bench and parts till today. At the meaning time, standard paint booth and customzied paint booth are gradually included in the business line. As requirements of new open workshops and some certain distributors,we set up 2 sales teams for international market.One team is to supply very professional consult and service for manufacturing and customization of car bench, lift and spray booth. The other team is for one-stop equipments supplying.
Now there are 3 prodution bases for car lift, auto body collision repair frame machine (car bench) and spray booth manufacturing. The other related equipments are from partners' factories.
Experience is the most competitive factor to work with us, there are 2 experienced consultants over 50 years in garage workshop new opening design and after sale service. They can supply practical solutions for both end users and producers. Team members are energetic spread in technique, production, sales, export customs declaration departments, which will assure high quality products and right export procedures for customers.
Tested by CE, ISO9001, all products have been shipped to North/South American, South East Asia, Africa, Middle East, Europe, and Asia, as well as domestic market in China. Both OEM and ODM are acceptable. Welcome to contact us and looking forward to working with you.
