Quick Details
-
Engine Brand:
-
weichai
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SINOWAY
-
Dimension(L*W*H):
-
5690x3230x2780mm
-
Drum diameter:
-
900mm
-
Product name:
-
Impact Roller
-
Impact power:
-
32KJ
-
Travelling speed:
-
10-15km/h
-
Width of roller:
-
900mm
-
Shape of roller:
-
Trilateral
-
Brand:
-
SINOWAY
-
Certification:
-
ISO
Quick Details
-
Type:
-
Impact Roller
-
Power:
-
200 kW
-
Weight:
-
16 ton
-
Engine Brand:
-
weichai
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SINOWAY
-
Dimension(L*W*H):
-
5690x3230x2780mm
-
Drum diameter:
-
900mm
-
Product name:
-
Impact Roller
-
Impact power:
-
32KJ
-
Travelling speed:
-
10-15km/h
-
Width of roller:
-
900mm
-
Shape of roller:
-
Trilateral
-
Brand:
-
SINOWAY
-
Certification:
-
ISO
Products Description
Using accumulator, hydraulic cylinder and pressure spring on traction shaft to buffer and eliminate the impact on tractor.
Manipulating the lifting cylinder, the impact wheel is supported by the trailer off the ground, which can make short-distance turning without damaging the road surface.
Hydraulic oil comes from the hydraulic system of tractor. It is convenient and fast to connect through quick change joint.
In work, bulldozers, graders and sprinklers can be selected for more effective compaction.
High production efficiency
1. The compacted foundation can be as high as 20,000 square meters per hour.
2. The average working speed is 10-15 kilometers per hour.
3. The influence depth of compaction can be as high as 5 meters and the effective compaction depth is 1 meter.
4. The thickness of each filling is 800-1200 mm.
5. The engineering benefit is ten times that of other equipments.
Significant benefit
1. Using impact roller to repair old pavement can save more than 50% of the cost.
2. Reduce environmental pollution.
3. Fracturing and stabilization with impact compactor represents a new development direction of this technology.
Our impact compactor is suitable for impact compaction of highway, railway, dam and airport foundation, rock stone, clay and earthwork with large water content.
Manipulating the lifting cylinder, the impact wheel is supported by the trailer off the ground, which can make short-distance turning without damaging the road surface.
Hydraulic oil comes from the hydraulic system of tractor. It is convenient and fast to connect through quick change joint.
In work, bulldozers, graders and sprinklers can be selected for more effective compaction.
High production efficiency
1. The compacted foundation can be as high as 20,000 square meters per hour.
2. The average working speed is 10-15 kilometers per hour.
3. The influence depth of compaction can be as high as 5 meters and the effective compaction depth is 1 meter.
4. The thickness of each filling is 800-1200 mm.
5. The engineering benefit is ten times that of other equipments.
Significant benefit
1. Using impact roller to repair old pavement can save more than 50% of the cost.
2. Reduce environmental pollution.
3. Fracturing and stabilization with impact compactor represents a new development direction of this technology.
Our impact compactor is suitable for impact compaction of highway, railway, dam and airport foundation, rock stone, clay and earthwork with large water content.
Machine Show
Product Paramenters
|
Specification of Tractor
|
|
|
|
Tractor model
|
SWT360
|
|
|
Operating weight
|
16000kg
|
|
|
Engine make
|
WEICHAI
|
|
|
Rated power
|
266kw
|
|
|
Overall dimension
|
5975 x 2750 x 3320mm
|
|
|
Turning radius (outside)
|
5800mm
|
|
|
Min. ground clearance
|
360mm
|
|
|
Wheelbase
|
3000mm
|
|
|
Fuel tank
|
444L
|
|
|
Peak traction
|
I:126KN, II:106KN
|
|
|
Gradeability
|
6% - 60%
|
|
|
Travel speed (F)
|
I: 0 - 8.4km/h, II: 0 - 15.2km/h, III: 0 - 29km/h
|
|
|
Travel speed (R)
|
I: 0 - 10km/h
|
|
|
Tire size
|
23.5-25-16PR
|
|
|

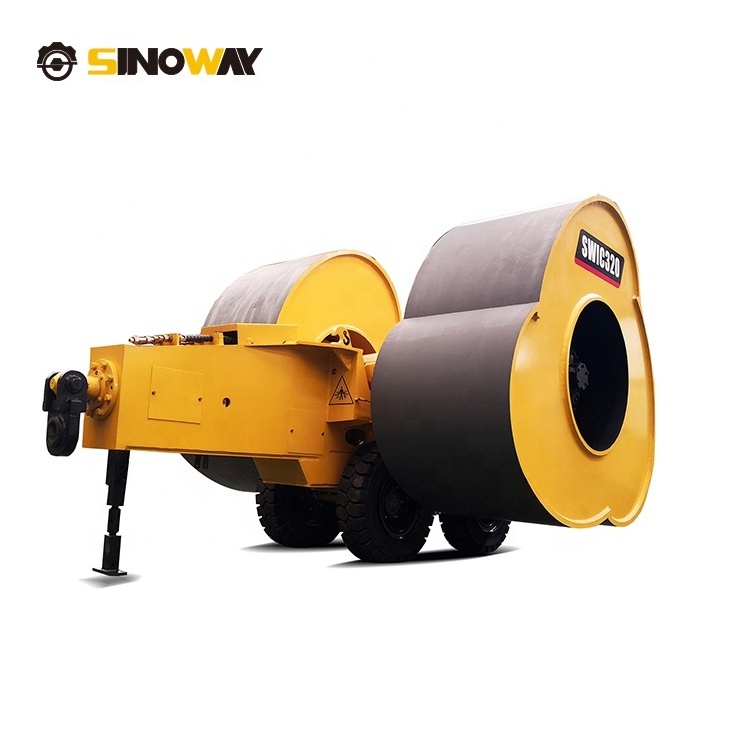

Specification of Impact Compactor
|
|
|
|
Model
|
SWIC320
|
|
|
Impact power
|
32KJ
|
|
|
Travelling speed
|
10 - 15km/h
|
|
|
Operating weight
|
14500kg
|
|
|
Gradeability
|
25°
|
|
|
Compaction
|
95 - 98%
|
|
|
Min. turning radius
|
6000mm
|
|
|
Overall dimension
|
3880 x 2980 x 2450mm
|
|
|
Tread
|
1180mm
|
|
|
Width of roller
|
900mm
|
|
|
Damping mode
|
Hydraulic, nitrogen, spring, rubber bumper
|
|
|
Pressure of accumulator
|
3 - 4.5MPa
|
|
|
Pressure of tire
|
0.6 - 0.8MPa
|
|
|
Shape of roller
|
Trilateral
|
|
