Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Caster Wheel
-
Description:
-
Fix, Swivel, Thread stem, Bolt hole
-
Brake mode:
-
Dual brake / Side brake
-
Housing:
-
pressed steel bracket, zinc plated, black lacquered, chrome plated
-
Alternative Wheel materials:
-
Blue Elastic Rubber tread with black PP core wheel
-
Bearing:
-
Double bearing
-
Wheel diameter:
-
3/4/5 inch
-
Tread width:
-
32mm
-
Overall height (mm):
-
107/130/155
-
Load Capacity (kgs):
-
90/100/120
Quick Details
-
Material:
-
Polypropylene, Steel, Elastic Rubber
-
Type:
-
Plate Casters, Stem Casters, Bolt-Hole Casters, Side-Mount Casters
-
Model Number:
-
AGS-04 series
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Caster Wheel
-
Description:
-
Fix, Swivel, Thread stem, Bolt hole
-
Brake mode:
-
Dual brake / Side brake
-
Housing:
-
pressed steel bracket, zinc plated, black lacquered, chrome plated
-
Alternative Wheel materials:
-
Blue Elastic Rubber tread with black PP core wheel
-
Bearing:
-
Double bearing
-
Wheel diameter:
-
3/4/5 inch
-
Tread width:
-
32mm
-
Overall height (mm):
-
107/130/155
-
Load Capacity (kgs):
-
90/100/120
Product Description

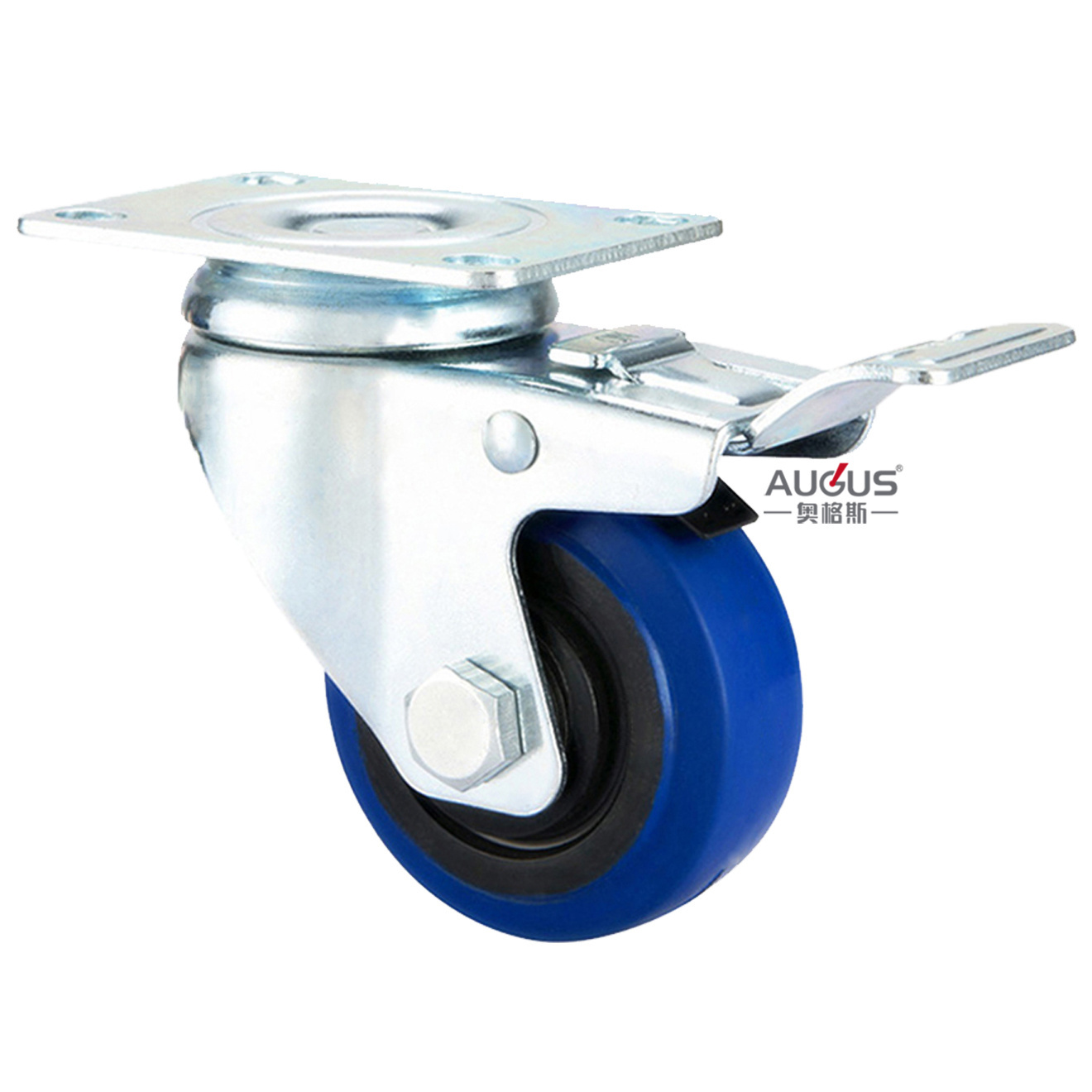

MEDIUM DUTY 04 SERIES-BLUE ELASTIC RUBBER
Description: Fix, Swivel, Thread stem, Bolt Hole
Brake mode: Dual brake /Side brake/ Plastic brake
Housing is made of pressed steel, zinc plated, black lacquered, chrome plated.
The wheel tread is made of Elastic Rubber, the wheel center is made of PP.
Brake mode: Dual brake /Side brake/ Plastic brake
Housing is made of pressed steel, zinc plated, black lacquered, chrome plated.
The wheel tread is made of Elastic Rubber, the wheel center is made of PP.
Wheel install with nut, axle and bush, double bearing.
Specification
|
Detail
|
3 Inch
|
4 Inch
|
5 Inch
|
|
Wheel diameter (mm)
|
75
|
100
|
125
|
|
Tread width (mm)
|
32
|
32
|
32
|
|
Overall height (mm)
|
107
|
130
|
155
|
|
Load Capacity (KGS)
|
90
|
100
|
120
|
|
Size of Plate (mm)
|
94 x 65
|
94 x 65
|
94 x 65
|
|
Hole centre (mm)
|
74.5 x 45
|
74.5 x 45
|
74.5 x 45
|
|
Screw Size (mm)
|
M12*30
|
M12*30
|
M16*30
|
|
Size of Fix plate (mm)
|
94x67
|
94x67
|
94x67
|
|
Hole center of Fix plate (mm)
|
74.5x45
|
74.5x45
|
74.5x45
|
|
Installation Mode
|
Fixed
Plate Screw Bolt hole |
Fixed
Plate Screw Bolt hole |
Fixed
Plate Screw Bolt hole |
Payment and Shipping
Payment term
: 30% deposit before production, 70% balance before shipment, by T/T and Alibaba trade assurance.
Package
: Each caster with one poly bag, put into export carton, plastic pallet.
(If there're other package demands, please inform in advance.)
Shipping mark
: CASTER
(If there's other shipping mark demand, please inform in advance.)
Delivery time
: About 15-25 days after deposit.
(The specific delivery time is according to the actual purchase quantity and production schedule.)
