Quick Details
-
Brand Name:
-
Luodate
-
Voltage:
-
380V/400V/415V
-
Dimension(L*W*H):
-
3000*1300*2150 mm
-
Motor Power (Kw):
-
55Kw
-
Power (kW):
-
55Kw
-
Weight (KG):
-
4500 KG
-
Marketing Type:
-
New Product 2021
-
Product name:
-

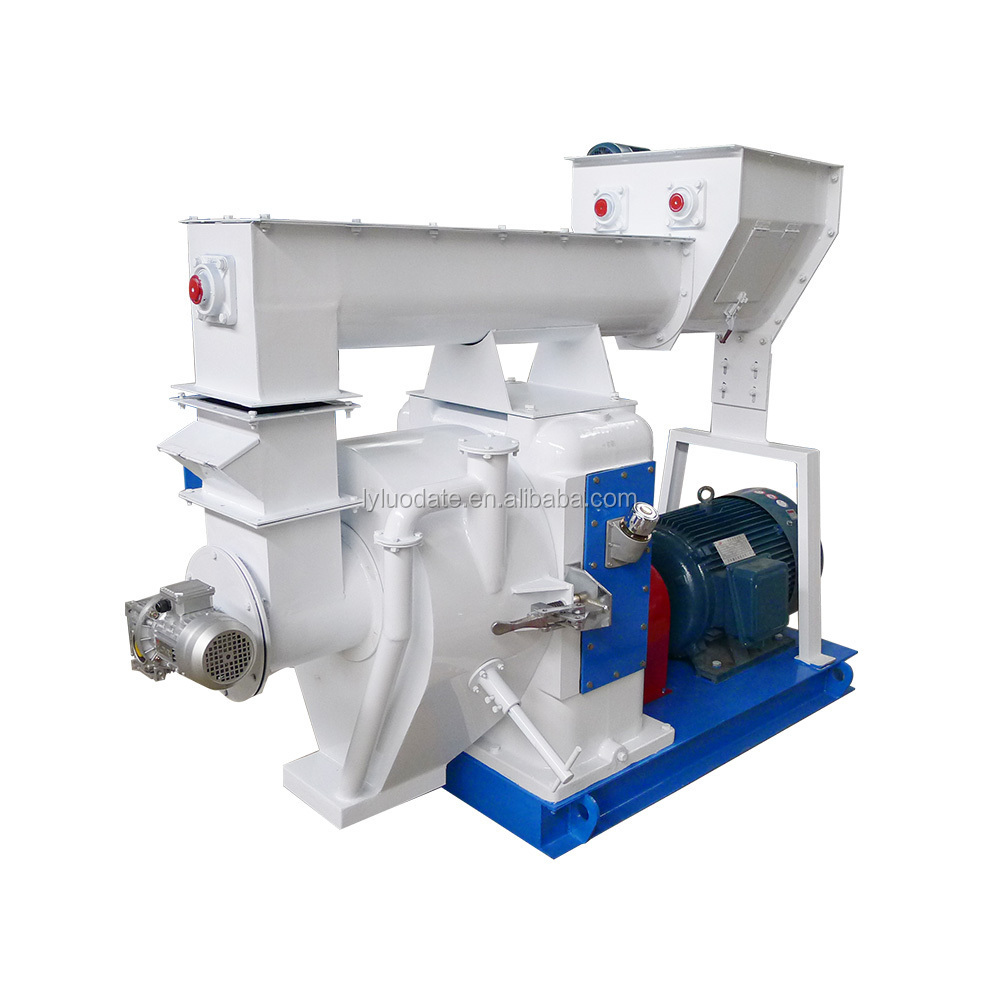

Biomass Wood Pellet Making Machine
-
Application:
-
Make Biomass Pellets
-
Raw material:
-
Sawdust\straw\rice Husk\wood Waste
-
Advantage:
-
Easy Operation
-
Capacity:
-
1-10TPH
-
Other name:
-
Biomass Pelletizer Making Machine
-
Pellet size:
-
2.5-20 Mm
-
Color:
-
Customers' Requirements
-
Service:
-
24 Hours Online
-
Keywords:
-
Biomass Pellet Making Machine
Quick Details
-
Pellet Diameter (mm):
-
2 - 18
-
Output (kg/h):
-
100 - 1000 kg/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Luodate
-
Voltage:
-
380V/400V/415V
-
Dimension(L*W*H):
-
3000*1300*2150 mm
-
Motor Power (Kw):
-
55Kw
-
Power (kW):
-
55Kw
-
Weight (KG):
-
4500 KG
-
Marketing Type:
-
New Product 2021
-
Product name:
-
Biomass Wood Pellet Making Machine
-
Application:
-
Make Biomass Pellets
-
Raw material:
-
Sawdust\straw\rice Husk\wood Waste
-
Advantage:
-
Easy Operation
-
Capacity:
-
1-10TPH
-
Other name:
-
Biomass Pelletizer Making Machine
-
Pellet size:
-
2.5-20 Mm
-
Color:
-
Customers' Requirements
-
Service:
-
24 Hours Online
-
Keywords:
-
Biomass Pellet Making Machine
alfalfa cubes pellet press machine / alfalfa grass pelletizer machine / hay making machine animal feed pelletizing
Overview
Product Feature:
1.
Scope of application: this machine can be used in the
rice husk
,
straw
,
cotton
stalk
,
wood chips
,
palm shell
,
sunflower
,
olive
,
bagasse
, and other raw materials.
2. Main drive adopts high accuracy gearbox for high efficiency .
3. Frequency conversion (Electromagnetic speed control) feeder, with overload protection device ,equipped strong magnetic security device.
4. Main parts of the bearing and standard parts are imported.
5. Equipped with between Φ6 and Φ12 more aperture and the thickness of the ring die, users can choose according to the different needs .
2. Main drive adopts high accuracy gearbox for high efficiency .
3. Frequency conversion (Electromagnetic speed control) feeder, with overload protection device ,equipped strong magnetic security device.
4. Main parts of the bearing and standard parts are imported.
5. Equipped with between Φ6 and Φ12 more aperture and the thickness of the ring die, users can choose according to the different needs .
Final Product
Application
1.
Wood pellet production line, widely used in large, medium and small wood chip manufacturers to produce high quality
wood pellet fuel
for sale.
2. This machine can be used in the rice husk, straw, cotton stalk, wood chips, palm shell , sunflower, olive, bagasse , and other raw materials.
2. This machine can be used in the rice husk, straw, cotton stalk, wood chips, palm shell , sunflower, olive, bagasse , and other raw materials.
Technical Parameter
|
Motor
|
Main Power(kw)
|
Capacity(t/h)
|
Size(mm)
|
|
SZLH250
|
22
|
0.1-0.2
|
2000*1400*1550
|
|
SZLH320
|
37/45
|
0.3-0.5
|
2300*1700*2000
|
|
SZLH350
|
55
|
0.5-0.8
|
2600*1000*2050
|
|
SZLH400
|
75/90
|
0.8-1.5
|
2880*1140*2220
|
|
SZLH420
|
90/110
|
1.5-2
|
3000*1300*2350
|
|
SZLH508
|
132/160
|
2-3
|
3400*1300*2550
|
