Quick Details
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
3000-6000K, 3000K-5000K
-
Design Style:
-
commercial
-
Input Voltage(V):
-
AC 120-277V/120-347V
-
Lamp Luminous Flux(lm):
-
up to 7800lumens
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 45
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Jiangjing
-
Model Number:
-
PL-72W-126-40-TG-22
-
Item Type:
-
Panel Lights
-
Style:
-
Commercial
-
Power:
-
36W-72W
-
CCT:
-
3000K-5000K option
-
Driver:
-
Lifud UL approved driver
-
Size:
-
2x2ft 1x4ft 2x4ft
-
Material:
-
Aluminum+PC+LGP
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
110/130 lumen per wattage, 110Lm/W 130Lm/W option
-
Application:
-
Office Building
-
Lamp Body Material:
-
Aluminum & high quality LGP
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
3000-6000K, 3000K-5000K
-
Design Style:
-
commercial
-
Input Voltage(V):
-
AC 120-277V/120-347V
-
Lamp Luminous Flux(lm):
-
up to 7800lumens
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 45
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Jiangjing
-
Model Number:
-
PL-72W-126-40-TG-22
-
Item Type:
-
Panel Lights
-
Style:
-
Commercial
-
Power:
-
36W-72W
-
CCT:
-
3000K-5000K option
-
Driver:
-
Lifud UL approved driver
-
Size:
-
2x2ft 1x4ft 2x4ft
-
Material:
-
Aluminum+PC+LGP
Product Description

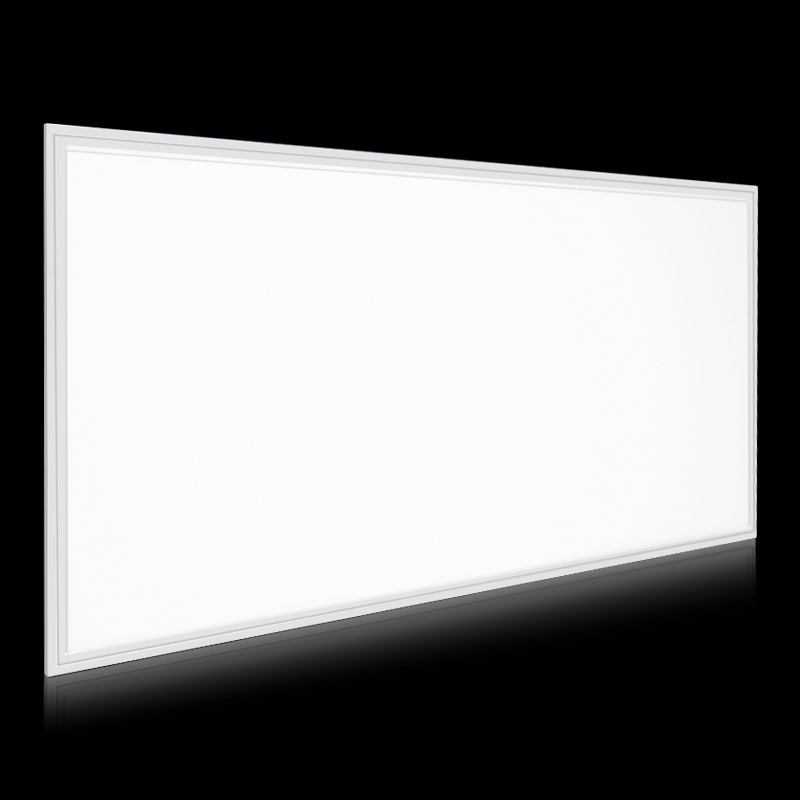

Edge-lit led panel light, CCT changing led flat panel
|
Product Information
|
|
|
|
Size
|
2X4, 2X2, 1X4
|
|
|
Power
|
20W-25W-30W-40W-50W-60W
|
|
|
Materials
|
Aluminum + high quality LGP
|
|
|
LED Source
|
SMD2835
|
|
|
CCT
|
3000K, 3500K, 4000K, 5000K
|
|
|
Lumens
|
100-130lm/w
|
|
|
Functions
|
Sensing, CCT/Watt changing/Emergency
|
|
Features:
1. Multiple functions, one-stop OEM service.
2. Isolated driver, PF>0.9, THD≤15 %.
3. Super bright SMD2835 LEDs, LM80 rated Ra>80.
4. Lumen output: 100-130LM/W.
5. IP Rating: IP40, Operating temperature: -20°C to 50°C.
6. AC120-277V & AC120-347V, 0-10V dimmable.
7. Non-flicker, no dark spot, protect your eyes.
8. 5-7 days fast delivery once confirmed.
Detailed Images
FAQ
Q: Are you factory?
A: Yes,we have three factories, the headquarter is in Shenzhen,.With 10,000 square meters' manufacturering area, the second
factory is 30,000 square meters' in Yichang, Hubei Province, the third is in Vietnam with 6,000 square meters'
Q: What's products you manufacturing and market?
A: Our products are LED Panel Light,LED Troffer,LED High Bay,LED Corn Light, LED Shoebox, Wallpack, LED Area Light, 70% sales from
North America, 30% from other market.
Q: Do you have special price and service for wholesale?
A: We offer OEM/ODM service under the best price.
Q: How long my order can be ready ?
A: We always insist on the fast delivery time,for small samples,it is 5-7 days,for quantity order like a 40HQ,it is 10-12 working
days.
Q: How about the warranty and after sales service?
A: We offer 5 years warranty,during the warranty,we will be 100% responsible for the products we sold,any questions,will give the satisfied solution within 12hrs.
A: Yes,we have three factories, the headquarter is in Shenzhen,.With 10,000 square meters' manufacturering area, the second
factory is 30,000 square meters' in Yichang, Hubei Province, the third is in Vietnam with 6,000 square meters'
Q: What's products you manufacturing and market?
A: Our products are LED Panel Light,LED Troffer,LED High Bay,LED Corn Light, LED Shoebox, Wallpack, LED Area Light, 70% sales from
North America, 30% from other market.
Q: Do you have special price and service for wholesale?
A: We offer OEM/ODM service under the best price.
Q: How long my order can be ready ?
A: We always insist on the fast delivery time,for small samples,it is 5-7 days,for quantity order like a 40HQ,it is 10-12 working
days.
Q: How about the warranty and after sales service?
A: We offer 5 years warranty,during the warranty,we will be 100% responsible for the products we sold,any questions,will give the satisfied solution within 12hrs.
Any interests or questions, please feel free to talk via trade manager or send inquiry , 24hrs online fastly service for you !
