Quick Details
-
OEM:
-
small quantity oem order available
-
Frequency Range:
-
41~400Hz
-
Impedance:
-
4Ω
-
Sensitivity:
-
101dB/1w/1m
-
Effective power (rated):
-
1000 watts
-
Peak Power:
-
3000 watts
-
Speaker enclosure material:
-
18 mm plywood
-
Max SPL:
-
126dB
-
weight:
-
60kg
-
size:
-
800x880x500mm
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SPIRIT
-
Model Number:
-
E215 woofer
-
OEM:
-
small quantity oem order available
-
Frequency Range:
-
41~400Hz
-
Impedance:
-
4Ω
-
Sensitivity:
-
101dB/1w/1m
-
Effective power (rated):
-
1000 watts
-
Peak Power:
-
3000 watts
-
Speaker enclosure material:
-
18 mm plywood
-
Max SPL:
-
126dB
-
weight:
-
60kg
-
size:
-
800x880x500mm
2 way crossover 3000 watts terbaik speaker cajas acusticas line array truss tower
E-208+ E-215 COMBO system speakers.
E208P was designed a built in two way speaker , the use of (CCTTM) .
E208P with two 8 " low frequency ferrite drive, two 1.75 " voice coil neodymium compression driver , the front-end connection between two Hydra plane wave acoustic generators , synthesizer 90 ° x10 ° waveguide .
Standard Acquired:GB\T 12060.5-2011 IEC 60268-5:2007 GB\T 9397-2013.

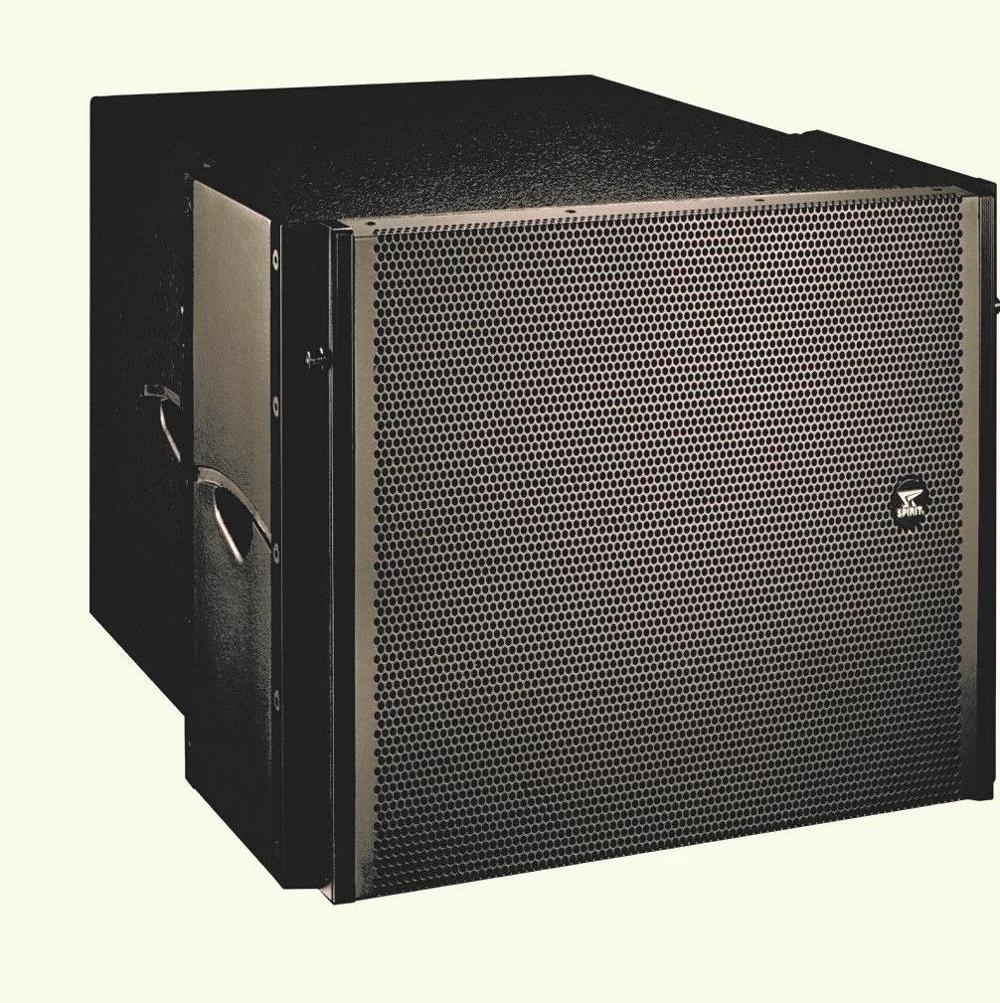

E215 use two 15-inch neodymium woofer as a true ultra-low frequency system , designed for high output and low frequency extension.
its top size , bottom dimensions , and lifting accessories same as E208DP , Also the supporting points . Can be flexibly integrated into the super woofer need to extend the low frequency response of the full-frequency array.
Standard Acquired:GB\T 12060.5-2011 IEC 60268-5:2007 GB\T 9397-2013.
| Model | E215(PASSIVE) |
| Color | Black |
| Connect | 2 Neutrik? NL4 |
| SPL@10m | 126dB 4 Box Array @ 10 Meters |
| Frequency response(-3dB) | 40 - 400Hz |
| Frequency response(-10dB) | 30 - 400Hz |
| Sensitivity(1W/1M) | 100dB Single Box @ 1Meter |
| Max SPL/1M | 130dB Single Box @ 1Meter |
| cover(-6dB) | -------- |
| Maximum power | 1000 Watts |
| frequend 10W | 2 x15" in |
| driver 10W | 1000W continuous |
| 3000W peak Watts 30-100Hz | |
| Low impedanc | 4Ω |
| Box material | 18mm plywood |
| Hanging | Yes |
| size(LxDxH)mm | 800 x 880 x 500mm |
| Weigh(kg) | 60kg |
Guangzhou Power and Grace Electronic Equipment Co., Ltd ( SPIRIT ) attend to these exhibitions :
1. Guangzhou Entertainment Technology Show ( GET SHOW) ;
2. PRO LIGHT+SOUND ( Frankfurt);
3. China International Exhibition on Pro Audio, Light, Music & Technology (PALM EXPO)
We warmly welcome our regular buyers and new friends meet us in the show ,to establish long-lasting cooperation.
