Quick Details
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Dixin
-
Voltage:
-
380V or Customized
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
2000 kg
-
Marketing Type:
-
New Product 2023
-
Name:
-
fence Post roll forming machine
-
Control system:
-
PLC(imported Brand)
-
Thickness:
-
0.3--0.8mm
-
Application:
-
Construction Panel
-
Color:
-
Client's Request
-
Material:
-
Color Steel Galvanized Plate
-
Usage:
-
Steel Construction
-
Plc:
-
Taiida
-
Cutting type:
-
Automatic Hydraulic Cutting
-
Main frame:
-
350H Steel
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Colored Steel
-
Production Capacity:
-
15 m/min
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Dixin
-
Voltage:
-
380V or Customized
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
2000 kg
-
Marketing Type:
-
New Product 2023
-
Name:
-
fence Post roll forming machine
-
Control system:
-
PLC(imported Brand)
-
Thickness:
-
0.3--0.8mm
-
Application:
-
Construction Panel
-
Color:
-
Client's Request
-
Material:
-
Color Steel Galvanized Plate
-
Usage:
-
Steel Construction
-
Plc:
-
Taiida
-
Cutting type:
-
Automatic Hydraulic Cutting
-
Main frame:
-
350H Steel

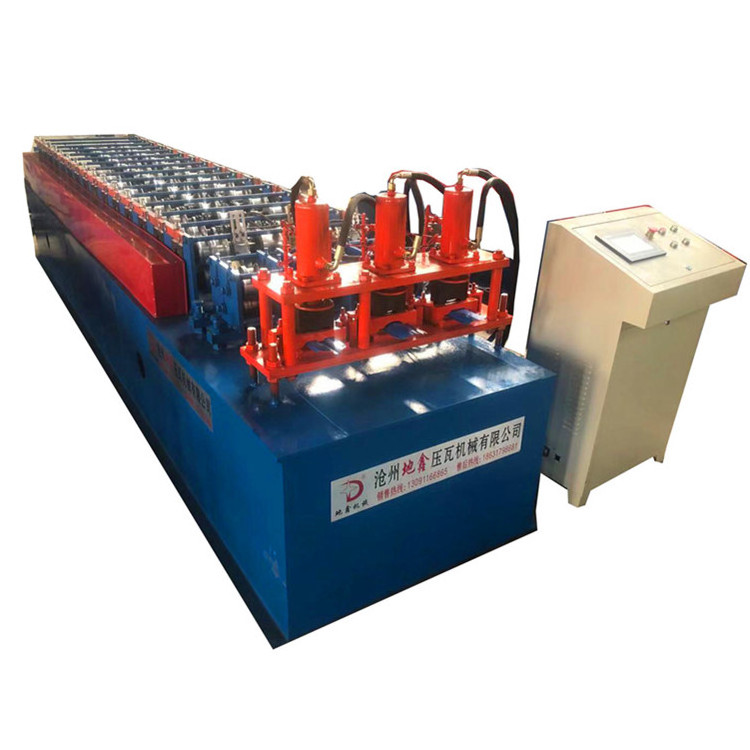

Factory Customized Durable Metal Garden Iron Fence Post Cold Roll Forming machine Metal Palisade Fence Panel Making Machinery
Machine Parameter
A Sheet Specifications
| 1 | Coil Type | PPGI GI |
| 2 | Width | 500mm |
| 3 | Thickness | 0.3-0.8mm |
| 4 | Yield stress | Q235 |
| 5 | Effective | 235mm |
B Components Details
| Roller Material | High grade 45# steel. Hard chrome plating, 0.05mm. |
| Main Frame | 350# steel. More stable and no shaking. |
| Middle Plate |
16mm. We use thicker plates to ensure stability of our products. |
| Forming Steps | 15, according to the drawing. |
| Shaft Material | Φ70 mm, high grade 45# steel. |
|
Treating process: tempering- finish turning, high rigidity, hard to deform. |
|
|
Cutting Blade Material |
Cr12, hardness HRC60-62. |
| Treating process: heat treatment- plane abrasion- wire electrode cutting. |
C. Electric Components
| Suitable Power | 380V, 50 Hz, 3 phase or according to your need. |
| Screen | 7 inch touch screen, easy to operate. |
| PLC | Delta DVP 14ES |
|
well-adapted to various conditions, such as moisture, electromagnetic disturbance. |
|
| Frequency Converter |
Delta VFD-M. It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm). |
|
Length Measurement Device |
Omron, made in Japan. |
| It features with high accuracy and stability. |
Manual uncoiler-- roll forming machine-- PLC control box-- hydraulic system- output table
Service:
Technology R&D
We have R&D centers and innovative designing teams for different kinds of production lines.
Quality Control
We have independent QC departments both in the company and factories which strictly control the quality of each process to enable our production lines to reach Chinese National Standards, even International Standards.
After Sale Service
Warranty period 2 years , after this period , we are willing to give help if customer needs accessory . The real cooperation will not end at the delivery . we believe that satisfied after sale service means a lot
Inspection
Inspected by the Sellers
After completing the manufacturing and assembling of the equipments, we will test the machines and commissioning in the workshop.
Inspected by the Buyers
After confirmation of a sound work of the line, we will invite our customer to send their representatives to inspect the production lines in our factories.
1.We are Alibaba Assessed 9 years Gold Supplier.
2.We are a factory manufacturing,best production capability ,best quality control, Best Service
3.Inspected by the Inspection Institution of Bureau Veritas Certification.
4.100% QC inspection Before Shippment.
5. competitve price.
